ACT Heavy Duty Race Sprung 6 Pad Clutch Kit For 94-01 Acura Integra & Honda Civic/CR-V/Del Sol

SKU: AI4-HDG6

SELECT FITMENT

See If This Product Fits Your Vehicle

$492.00
$492.00

Free Shipping

Free ground shipping on all orders over $99

AI4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.



Features:

  • Feel - Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
  • Life - Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use - Recommended for high horsepower street or race use
  • ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Specifications:

  • Product Weight (lbs.):  13.2
  • Torque Capacity (ft/lbs.):  310
  • Torque Capacity Over OE:  68%
  • Disc Material:  Ceramic
  • Clutch Disc Diameter (Inches):  8.7
  • Clutch Disc Diameter (Millimeters):  220
  • Input Shaft Diameter (inches):  1.03125
  • Pressure Plate Type:  Heavy Duty

Fitment:

  • 1997-2001 Acura Integra GS 1.8L
  • 1994-2001 Acura Integra GS-R 1.8L
  • 1994-2001 Acura Integra LS 1.8L
  • 1994-1998 Acura Integra RS 1.8L
  • 1995-1996 Acura Integra Special Edition 1.8L
  • 1997-1998,2000-2001 Acura Integra Type R 1.8L
  • 1999-2000 Honda Civic Si 1.6L
  • 1994-1997 Honda Civic del Sol VTEC 1.6L
  • 1998-2001 Honda CR-V EX 2.0L
  • 1998-2001 Honda CR-V LX 2.0L
  • 2000-2001 Honda CR-V SE 2.0L

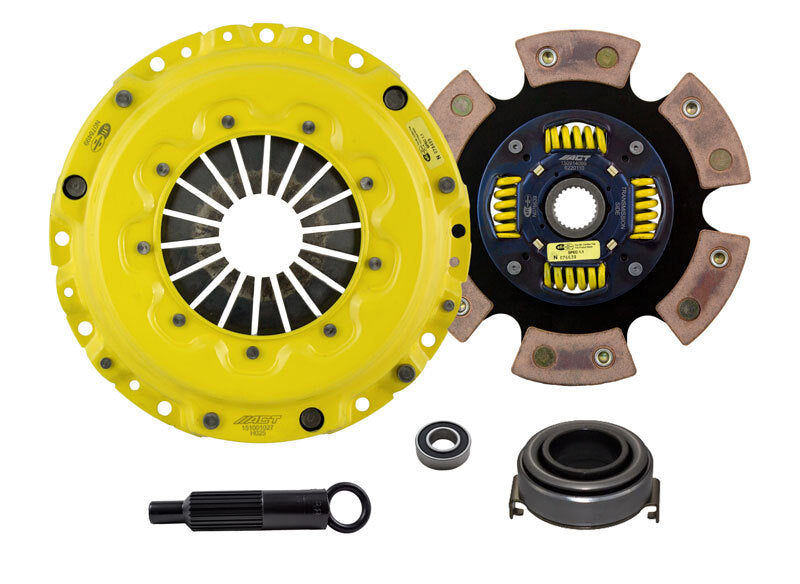

Included:

  • Heavy Duty Pressure Plate
  • Sprung 6-Pad Race Disc
  • Release Bearing
  • Pilot Bearing
  • Alignment Tool

Note:

  • 1 Year Warranty

Product Specs

SKU:
AI4-HDG6
Brand:
Advanced Clutch Technology
