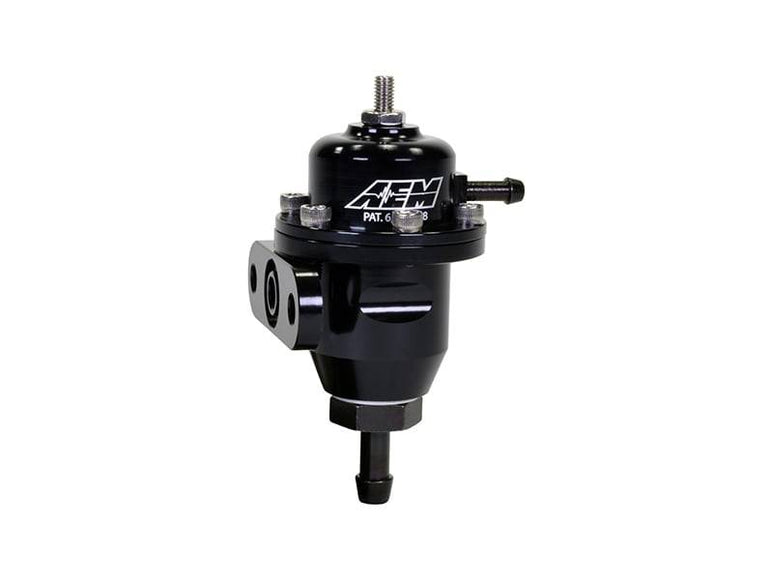

AEM Adjustable Fuel Aluminum Pressure Regulator - EFI/Carb - Black

AEM's Honda/Acura Adjustable Fuel Pressure Regulators are capable of supporting enough fuel flow for engines up to 1000 horsepower. Our patented interchangeable discharge ports enable the regulator's output to match the output of any fuel pump. A single large discharge orifice is included. AEM includes a custom barb fitting to accommodate the factory fuel hose and the base of each regulator is tapped to accept a -6 AN or 9/16"x18 fittings.

Features:

• Mounts directly to O.E. fuel rail or AEM High Volume Fuel Rail
• Patented interchangeable discharge orifices match output of virtually any fuel pump (single large port included)
• Adjustable from 20 psi to maximum fuel pump capacity
• Boost dependent rising fuel pressure rate (1:1)
• CNC-machined from 6061-T6 billet aluminum
• Patent # 6,298,828
• Accept a -6 AN or 9/16"x18 fittings

Specifications:

• Brand: AEM
• Color: Black
• Emission: Code 4
• Fuel System:EFI/Carb
• Fuel Type:Gasoline
• Inlet Size:6 AN
• Material:Aluminum
• Outlet Size:6 AN
• Product Type:Fuel Pressure Regulator
• Return Size:6 AN
• Style:Bypass
• Warranty:1 Year
• Part Number:25-300BK
