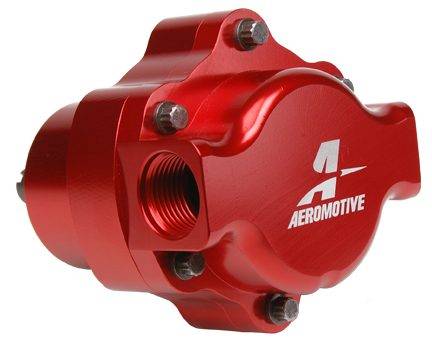

Aeromotive Billet Belt Drive Fuel Pump - External Mounting - Red

Zero amperage draw, less weight, and more flow!
The Aeromotive Billet Belt Drive Fuel Pump was designed to solve fuel delivery problems in high horsepower, forced-induction EFI applications, as well as the now popular, carbureted applications on gas or methanol.

Supports:

Fuel injected engines: GAS

• up to 3800 FWHP – naturally aspirated
• up to 2920 FWHP – forced air induction

 Carbureted engines: GAS

•  Up to 3900 FWHP – naturally aspirated
• Up to 3020 FWHP – forced air induction

 Fuel injected engines: E85

• up to 2710 FWHP – naturally aspirated
• up to 2110 FWHP – forced air induction

• Up to 2810 FWHP – naturally aspirated
• Up to 2210 FWHP – forced air induction

• up to 1,450 FWHP – naturally aspirated
• up to 1000 FWHP – forced air induction

• Up to 1,550 FWHP – naturally aspirated
• Up to 1050 FWHP – forced air induction

• Proven performance, powering some of the world’s fastest EFI vehicles.
• Compact size facilitates easy mounting.
• Billet aluminum CNC-machined body, not ‘cast’.
• This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
• ORB-10 inlet and outlet ports.
• For EFI applications use regulator P/N 13145, 13134.
• Carbureted gasoline applications require regulator P/N 13202 or P/N 13212.
• Alcohol carbureted applications require Double Adjustable Regulator P/N 13209 or 13214.
• 1/2″ Drive Shaft with 1/8″ key.
• Bracket and Cog Pulley sold separately. (see Accessories)
• Available as a kit (P/N 17140) includes: Pump, Bracket and Pump Pulley.

• Weight: 3.5 lbs
• Dimensions: 6.5 × 7 × 8.25 in
• Mounting Configuration: External
