Air Lift Performance ALP4 Air Management System 3/8" Air Line (No Tank, No Compressor)
SKU:
27485
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,916.99
- $1,916.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Several In Stock
The ALP4 air management system combines a compact all-in-one manifold with a full-color touchscreen controller. The manifold houses the ECU, solenoids, and pressure sensors in anodized black billet aluminum, which means fewer connections, cleaner installs, and fewer failure points.
Control presets, 4-corner manual adjustment, axle adjustments, and full air-out from the controller or the mobile app. Pressure-based out of the box and upgradable to height-based with the Pressure to Height kit. Tank and compressor not included.
Features:
- All-in-one billet manifold houses ECU, solenoids, and sensors
- 5 inch full-color touchscreen with four physical buttons
- Anodized black billet aluminum with LED-lit top cover
- Free mobile app for full system control from anywhere
- Plug-and-play harness needs only power, ground, and ignition
- Drop-in upgrade for an existing 3P or 3H setup
- Built-in diagnostics and compressor performance testing
- Upgradable to height-based control with the upgrade kit
Specifications:
- Brand: Air Lift Performance
- Part Type: Air Suspension System
- Control Type: Pressure-Based
- Air Line Size: 3/8"
- Manifold Ports: 1/4" FNPT Threaded
- Controller: 5" Full-Color Touchscreen
- Connectivity: Mobile App
- Tank Included: No
- Compressor Included: No
- Warranty: 2 Year
- Sold As: Kit

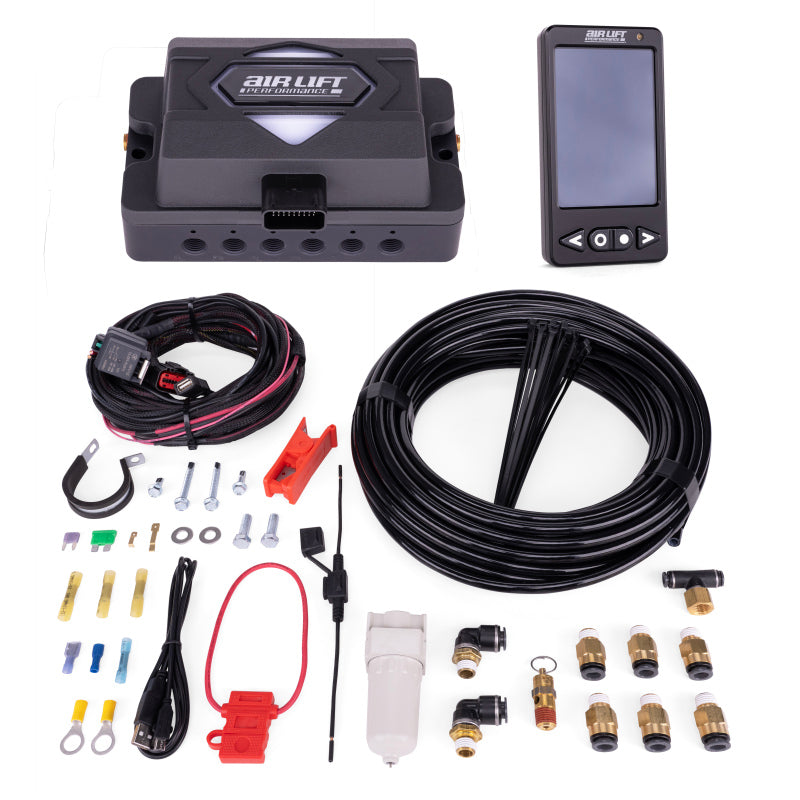

Included:
- Threaded Port (1/4" FNPT) Manifold
- Touchscreen Full-Color LCD Controller With Physical Buttons
- Main Wiring Harness
- USB-A to USB-C Controller Cable
- Manifold Mounting Hardware
- Electrical Hardware
- (6) 1/4" MNPT x 3/8" PTC Fittings
- (1) SMC Water Trap With Manual Drain And Mounting Strap
- (1) Air Line Cutter
- (60 ft) 3/8" DOT Air Line
Fitment:
- Universal - works with any Air Lift Performance air suspension kit
Notes:
- 2 Year Warranty
- Warranty does not cover modifications, alterations, or misuse
- Tank and compressor sold separately
- Upgradable to height-based control with the Pressure to Height Upgrade Kit
