Air Lift

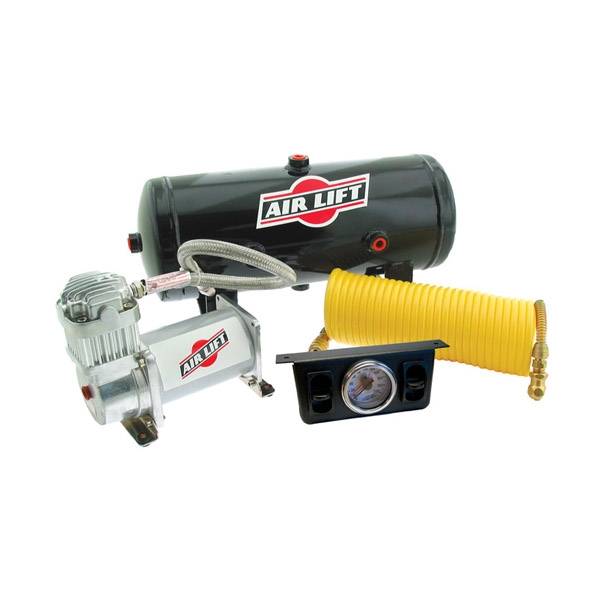

Air Lift Double QuickShot On-Board Air Compressor System With 2-Gallon Reserve Tank

SKU: 25572

SELECT FITMENT

See If This Product Fits Your Vehicle

$770.28
$770.28
$0.00

Free Shipping

Free ground shipping on all orders over $99
Description

The Air Lift Double QuickShot is a pressure-driven reservoir system that moves air faster, so your air springs react quickly and you can fill tires and toys on the go. Built for lowered vehicles, off-road trucks, motorhomes, and heavy load applications.

This dual path model inflates each air spring independently to different pressures depending on the load, which helps prevent air transfer between springs for more stable cornering and less body roll.

Features:

  • Fastest on-board air delivery system Air Lift builds
  • Heavy duty compressor paired with a 2 gallon reserve tank
  • .81 CFM at 33 percent duty cycle at 100 PSI
  • In-cab gauge panel displays air spring status at a glance
  • Fills air bags four times faster than the Load Controller II
  • Dual path lets you set each air spring to its own pressure
  • Auxiliary air line fills tires, air tools, and toys
  • Works with all brands of helper springs

Specifications:

  • Brand: Air Lift
  • Part Type: Air Suspension Compressor Kit
  • System Type: Dual Path
  • Compressor Output: .81 CFM
  • Duty Cycle: 33% @ 100 PSI
  • Reserve Tank: 2 Gallon
  • Control: In-Dash Gauge Panel
  • Warranty: 1 Year Warranty
  • Sold As: Kit

Included:

  • (1) Heavy Duty Air Compressor
  • (1) 2 Gallon Reserve Tank
  • (1) In-Dash Control Panel
  • (1) Auxiliary Air Line
  • Mounting Hardware, Fittings, Hoses, And Plumbing
  • (1) Installation Instructions

Fitment:

  • Universal - fits all brands of helper springs

Notes:

  • Not designed for high pressure, high volume applications
  • 1 Year Warranty serviced and supported by Air Lift
  • Warranty does not cover modifications, alterations, or misuse
Fitment
Fitment

Product Specs

SKU:
25572
Brand:
Air Lift
part type:
Air Compressors
series name:
Air Lift Quickshot
