Air Lift LoadLifter 5000 Rear Air Spring Kit For Lifted 2017-2022 Ford F-250 and F-350 Super Duty Single Rear Wheel 4WD
SKU:
57409
SELECT FITMENT
See If This Product Fits Your Vehicle
- $618.99
- $618.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
2 In Stock
Air Lift's LoadLifter 5000 for Lifted Trucks is built for the specific problem a block spacer lift creates: the factory air spring kit no longer reaches. This side mount version is engineered for 2017-2022 Ford F-250 and F-350 trucks running leaf spring block spacer-style lifts, delivering up to 5,000 lbs of load-leveling capacity on a truck that has already been raised.
It works with any lift that retains the factory leaf springs, spring retainer and u-bolts, and factory frame-to-leaf spring distance. Air springs adjust from 5 to 100 PSI for precise control, leveling the truck when towing or hauling and eliminating sag and bottoming out. The side mount design is built to clear most 5th-wheel hitches, and no frame drilling is required. Backed by Air Lift's limited lifetime warranty and 60-day ride satisfaction guarantee.
Features:
- Designed for lifted trucks using a block spacer type lift
- Side mount design works with most 5th-wheel hitches
- Up to 5,000 lbs of load-leveling capacity
- Air springs fully adjustable from 5 to 100 PSI for precise control
- Levels the vehicle when towing or hauling
- Eliminates sag and bottoming out
- No frame drilling required
- Easy to install with included instructions
Specifications:
- Brand: Air Lift
- Part Type: Air Suspension Helper Spring Kit
- Product Line: LoadLifter 5000
- Load Capacity: Up To 5,000 lbs
- Pressure Range: 5-100 PSI
- Application Type: Rear Kit
- Drilling Required: No
- Replacement Air Spring: 50201
- Weight: 51.3 lb
- Dimensions: 17in W x 12in D x 10in H
- Roll Plates: Included
- Installation: Brackets, Hardware and Instructions Included
- Warranty: Limited Lifetime

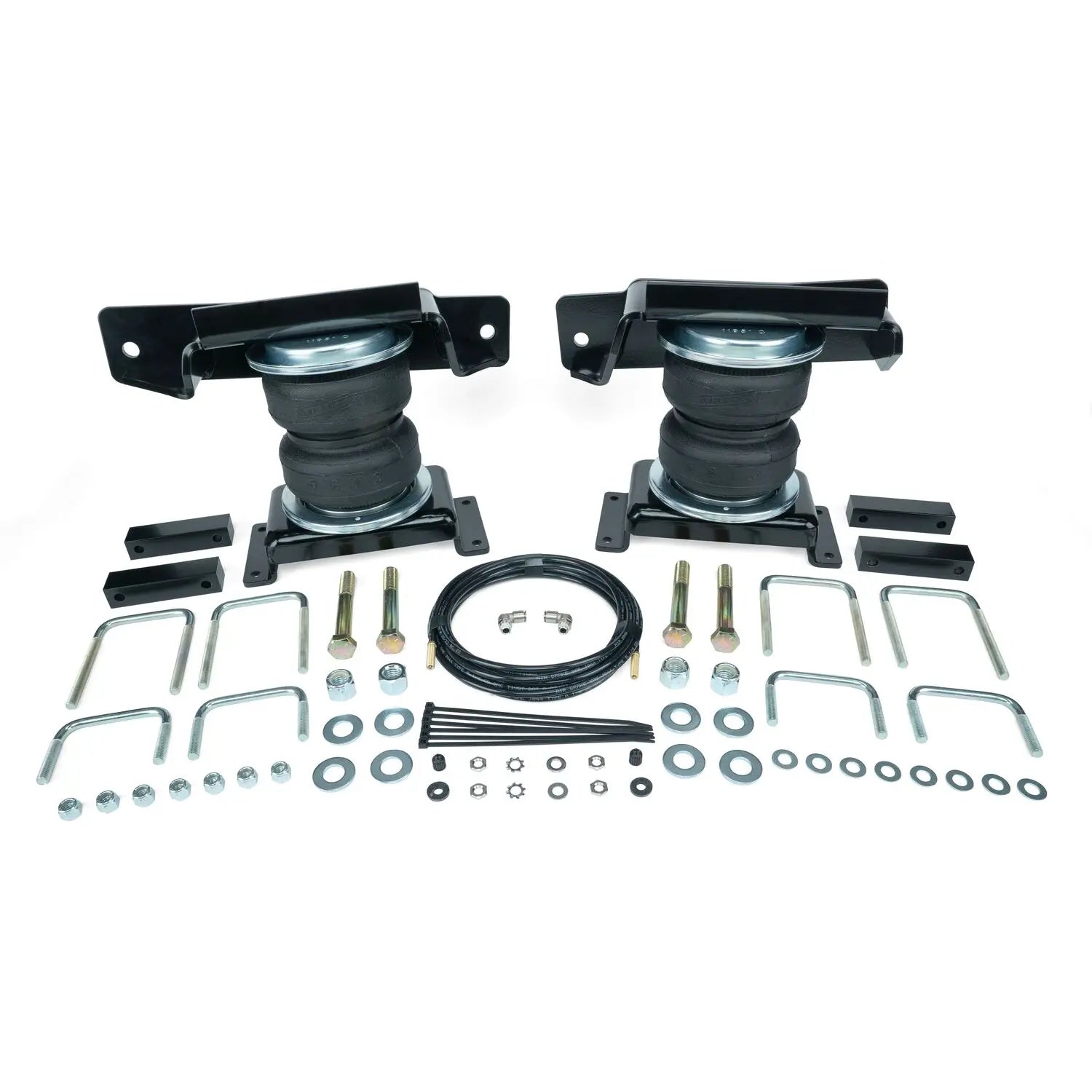

Included:
- (2) LoadLifter 5000 Air Springs
- (1) Set Mounting Brackets and Hardware
- (1) Set Roll Plates
- (1) Air Line and Inflation Valve Kit
- (1) Installation Guide
Fitment:
- 2017-2022 Ford F-250 Super Duty Pickup Single Rear Wheel 4 Wheel Drive
- 2017-2022 Ford F-350 Super Duty Pickup Single Rear Wheel 4 Wheel Drive
Notes:
- Limited Lifetime Warranty
- Warranty does not cover modifications, alterations, or misuse
- Do not exceed the vehicle manufacturer Gross Vehicle Weight Rating (GVWR)
- Engineered for lifted trucks using a block spacer type lift
- Works with any lift that retains factory leaf springs, spring retainer and u-bolts, and factory frame-to-leaf spring distance
- Side mount kit designed to work with most 5th-wheel hitches
- Does not fit commercial cab and chassis models
- 60-Day Ride Satisfaction Guarantee
