Air Lift

Air Lift QuickShot On-Board Air Compressor System With 2-Gallon Reserve Tank

SKU: 25690

SELECT FITMENT

See If This Product Fits Your Vehicle

$629.67
$629.67
$0.00

Free Shipping

Free ground shipping on all orders over $99
Description

The Air Lift QuickShot is a pressure-driven reservoir system that moves air faster, so your air springs react quickly and you can fill tires and toys on the go. Built for lowered vehicles, off-road trucks, motorhomes, and heavy load applications.

This single path model provides equal inflation to both air springs from one control that adjusts them at the same time.

Features:

  • Fastest on-board air delivery system Air Lift builds
  • Heavy duty compressor paired with a 2 gallon reserve tank
  • .81 CFM at 33 percent duty cycle at 100 PSI
  • In-cab gauge panel displays air spring status at a glance
  • Fills air bags four times faster than the Load Controller II
  • Single path adjusts both air springs together from one control
  • Auxiliary air line fills tires, air tools, and toys
  • Works with all brands of helper springs

Specifications:

  • Brand: Air Lift
  • Part Type: Air Suspension Compressor Kit
  • System Type: Single Path
  • Compressor Output: .81 CFM
  • Duty Cycle: 33% @ 100 PSI
  • Reserve Tank: 2 Gallon
  • Control: In-Dash Gauge Panel
  • Warranty: 1 Year Warranty
  • Sold As: Kit

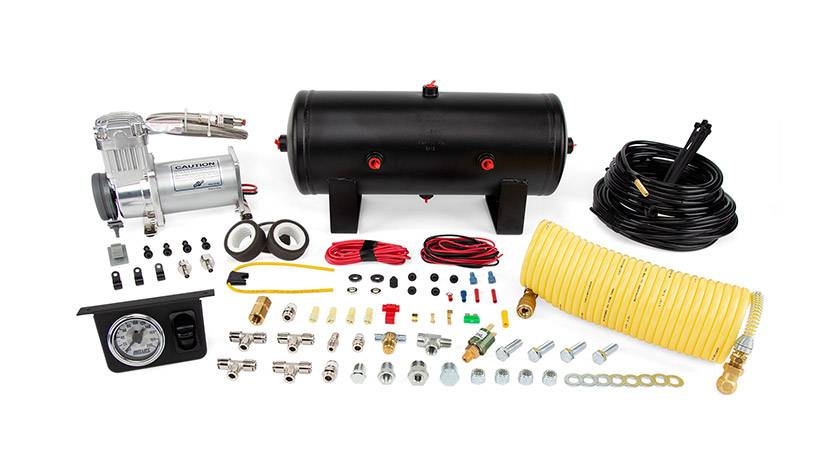

Included:

  • (1) Heavy Duty Air Compressor
  • (1) 2 Gallon Reserve Tank
  • (1) In-Dash Control Panel
  • (1) Auxiliary Air Line
  • Mounting Hardware, Fittings, Hoses, And Plumbing
  • (1) Installation Instructions

Fitment:

  • Universal - fits all brands of helper springs

Notes:

  • Not designed for high pressure, high volume applications
  • 1 Year Warranty serviced and supported by Air Lift
  • Warranty does not cover modifications, alterations, or misuse
Fitment
Fitment

Product Specs

SKU:
25690
Brand:
Air Lift
part type:
Air Compressors
series name:
Air Lift Quickshot
