Air Lift VIAIR 480C Dual Pack Air Compressor 200 PSI
Air Lift

Air Lift VIAIR 480C Dual Pack Air Compressor 200 PSI

SKU: 23480

SELECT FITMENT

See If This Product Fits Your Vehicle

$452.95
$452.95

Free Shipping

Free ground shipping on all orders over $99
1 In Stock
Description

Two VIAIR 480C compressors, two heavy duty 40-amp relays, and a pressure switch set to cut on at 165 PSI and off at 200 PSI. Rated to fill tank volumes up to 10 gallons.



Each compressor carries a 12 volt permanent magnetic motor with a 100 percent duty cycle at 100 PSI. Remote mount filter assemblies, mounting hardware, and the air line for remote filter installation are all included.



Features:

  • Two VIAIR 480C compressors rated to 200 PSI
  • 12 volt permanent magnetic motors
  • 100 percent duty cycle at 100 PSI, 50 percent at 200 PSI
  • Rated to fill tank volumes up to 10 gallons
  • Pressure switch cuts on at 165 PSI, off at 200 PSI
  • Two heavy duty 40-amp relays and a fuse holder included
  • Remote mount filter assemblies with air line
  • IP67 ingress protection rating



Specifications:

  • Brand: Air Lift Performance
  • Part Type: Air Suspension Compressor
  • Model: VIAIR 480C
  • Operating Voltage: 12V
  • Maximum Working Pressure: 200 PSI
  • CFM: 2.12 @ 0 PSI
  • Duty Cycle: 100% @ 100 PSI, 50% @ 200 PSI
  • Maximum Amp Draw: 40 Amps
  • Ingress Protection: IP67
  • Operating Temperature: -40F to +158F
  • Net Weight: 22.10 lb
  • Warranty: 90 Day
  • Sold As: Dual Pack

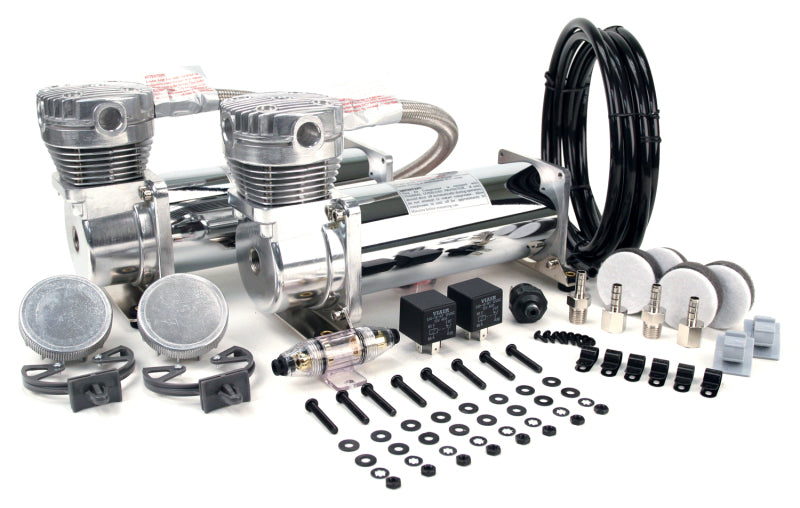

Included:

  • (2) VIAIR 480C Compressors
  • (2) Air Filter Assemblies
  • (2) Remote Mount Brackets
  • (2) Sets Of Remote Mount Fittings
  • (2) Sets Of Spare Air Filter Elements
  • (2) Leader Hose Clips
  • (6) Air Line Clips With Hardware
  • (8) Sets Of Nuts, Bolts, Washers, And Lock Washers
  • (1) Heavy Duty Tube Style Fuse Holder
  • (2) Heavy Duty 40-Amp Relays
  • (1) Heavy Duty Pressure Switch (165 PSI On, 200 PSI Off)
  • Air Line For Remote Mount Filter



Fitment:

  • Universal



Notes:

  • 90 Day Warranty
  • Warranty does not cover modifications, alterations, or misuse
  • Use thread sealant rather than thread tape - recommended torque is 12 to 15 ft-lb
