AirDog FP-150-4G Fuel System For 1989-1993 Dodge/Ram 5.9L CUMMINS

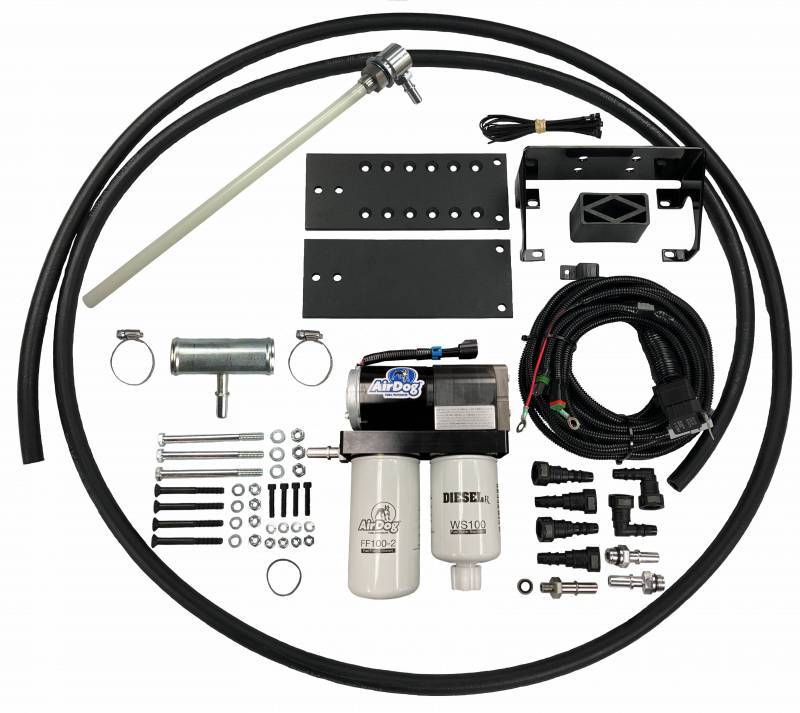

This is the AirDog I FP-150-4G fuel system for the 1989-1993 Dodge Ram with the VE44 Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A 1/2" draw straw is used to pull fuel from the tank. The pressure side connects directly to the VE injection pump, bypassing the factory fuel filter housing and fuel pump. The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This is a 150GPH (Gallon Per Hour) lift pump system. Check out our installation manual for a list of parts that are included with this kit.

Features:

• Preset @ 10 PSI
• Flows 150 Gallons Per Hour
• Supports Stock-800HP Applications
• Smoother Idle & Acceleration
• Improved Throttle Response
• CARB E.O. Number D-595-3

Specifications:

• Weight: 27.0 lbs.

Fitment:

• 1993 Dodge/Ram 5.9L CUMMINS
• 1992 Dodge/Ram 5.9L CUMMINS
• 1991 Dodge/Ram 5.9L CUMMINS
• 1990 Dodge/Ram 5.9L CUMMINS
• 1989 Dodge/Ram 5.9L CUMMINS 11 USA
