This is the AirDog II-5G DF-100-5G fuel system for the 2015-2016 Chevy/GMC Duramax 6.6L Diesel. This diesel lift pump mounts to the frame jig in front of the fuel tank for a clean looking installation. The suction side hooks up to the factory suction fitting in the fuel module. The pressure side connects directly to the factory injection pump feed line on the frame. The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This lift pump system is one of our easiest installations. Our Duramax kits usually see the largest performance gains as these trucks do not come with a lift pump from the factory. This is a 100GPH (Gallon Per Hour) fuel system for stock fuel trucks.
Features:
- Preset @ 8-10 PSI
- Supports Stock - 500HP
- Lifetime Limited Warranty
- Increased Engine Efficiency
- Low Flow Return For Reduced Aeration
- Integrated Diaphragm Fuel Pressure Regulator
- Maintains Reliable & Quiet 5G Motor Technology
Fitment:
- 2015-2016 GM 6.6L Duramax LML

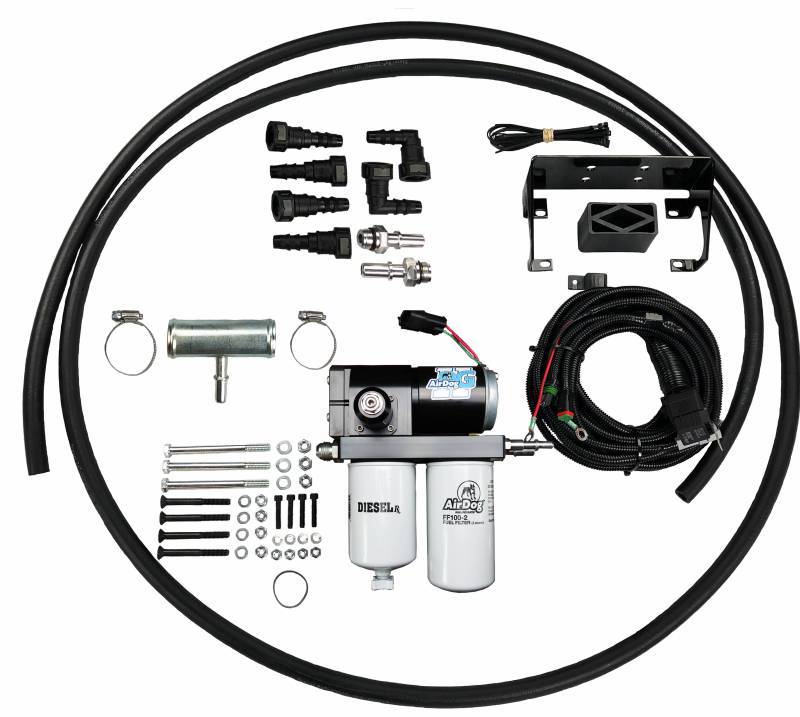

Included:
- Wiring
- Plumbing
- Hardware
- Mounting Brackets
- 100 GPH Fuel Pump
- Installation Instructions
- Fuel Filter & Water Seperator
Note:
- Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines
