AirDog II 5G 100 GPH Fuel Pump & Sump Kit For 1994-1998 Dodge Ram 5.9L Cummins

SKU: A7SPBD252 | AD09SMP

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,053.00
$1,053.00

Free Shipping

Free ground shipping on all orders over $99
Shipping Notes:
This product cannot be shipped to California
Description

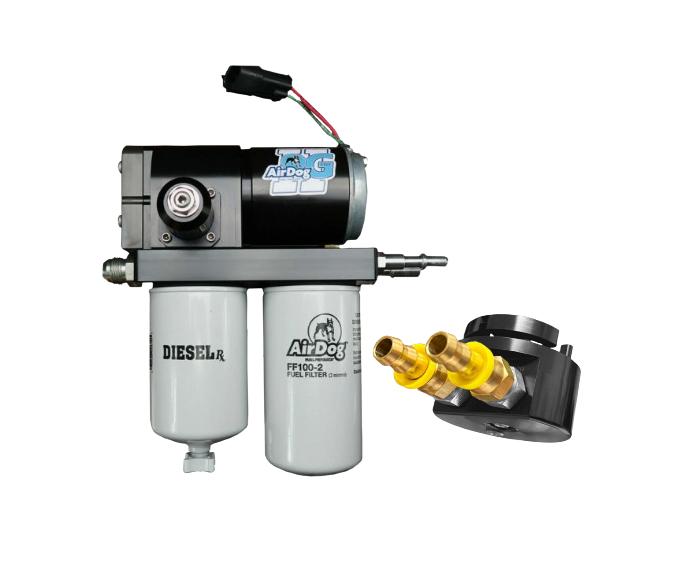

This is the AirDog® II-5G DF-100 fuel system for the 1994-1998 Dodge Ram P-Pump 12V Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. The suction side hooks up to the factory suction fitting in the fuel module. The pressure side connects directly into the side of the P-Pump bypassing the factory fuel filter housing, and factory fuel pump. The injection pump return is tied into the engine return to eliminate the need for the factory filter head. The AirDog® Air/Vapor return is sent back to the tank through a filler neck tee. This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel trucks. Check out our installation manual for a list of parts that are included with this kit.

The PureFlow AirDog® universal fuel sump helps aid aftermarket fuel systems by utilizing gravity to pull fuel from the tank. Our redesigned sump has both a suction and return port! We integrated a dual o-ring seal to prevent leaks! The installation of our fuel sump eliminates the common 1/4 tank suction issue associated with a draw straw-style fuel pickup. This sump is manufactured in America using corrosion resistant components.



Fuel System Features:

  • Larger Ports Over Previous Pumps
  • Increases Engine Efficiency
  • Provides Better Fuel Flow At Pressure
  • Reliable & Quiet 5G Technology
  • 12-Gauge Wiring Harness
  • Low Flow Return For Reduce Aeration
  • Integrated Diaphragm Fuel Pressure Regulator
  • Demand Flow Design
  • 100 GPH Fuel Pump

Sump Features:

  • Can be Installed Without Dropping the Fuel Tank
  • Eliminate 1/4 Tank Problems
  • Feed and Return Port
  • Uses Corrosion Resistant Components
  • Installation Takes Less Than an Hour
  • Dual O-Ring Seal

Fitment:

  • 1994-1998 Dodge Ram 2500/3500 5.9L 24V Cummins

Included:

  • (1) AirDog II 5G 100 GPH Fuel System
  • (1) AirDog Fuel Sump
  • All Mounting Hardware

Notes:

  • Limited Lifetime Warranty
  • Not For Sale Or Street Use In California
Fitment
Fitment

Product Specs

SKU:
A7SPBD252 | AD09SMP
Brand:
AirDog
shipping remarks:
This product cannot be shipped to California
