AirDog II 5G 100 GPH Fuel Pump & Sump Kit For 2008-2010 Ford 6.4L Powerstroke
SKU:
A7SPBF266 | AD09SMP
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,030.00
- $1,030.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Shipping Notes:
This product cannot be shipped to California

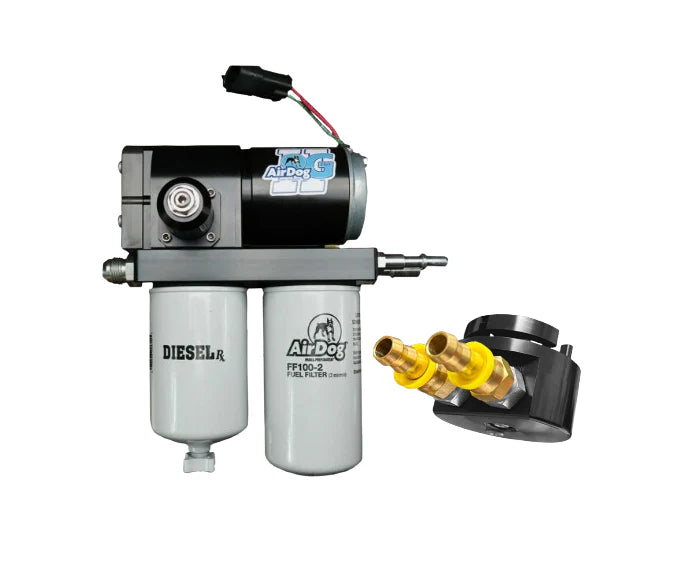

This is the AirDog® II-5G DF-100 fuel system for the 2008-2010 Ford 6.4L Powerstroke. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. The suction side hooks up to the factory suction line on the frame rail. The pressure side connects to the factory supply line on the frame rail. This fuel pump completely bypasses the factory fuel pump. The AirDog® Air/Vapor return is sent back to the tank through a return “Y” that splices the AirDog® return into the factory engine return. This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel trucks. Check out our installation manual for a list of parts that are included with this kit.
The PureFlow AirDog® universal fuel sump helps aid aftermarket fuel systems by utilizing gravity to pull fuel from the tank. Our redesigned sump has both a suction and return port! We integrated a dual o-ring seal to prevent leaks! The installation of our fuel sump eliminates the common 1/4 tank suction issue associated with a draw straw-style fuel pickup. This sump is manufactured in America using corrosion resistant components.
Fuel System Features:
- Larger Ports Over Previous Pumps
- Increases Engine Efficiency
- Provides Better Fuel Flow At Pressure
- Reliable & Quiet 5G Technology
- 12-Gauge Wiring Harness
- Low Flow Return For Reduce Aeration
- Integrated Diaphragm Fuel Pressure Regulator
- Demand Flow Design
- 100 Gallons Per Hour
Sump Features:
- Can be Installed Without Dropping the Fuel Tank
- Eliminate 1/4 Tank Problems
- Feed and Return Port
- Uses Corrosion Resistant Components
- Installation Takes Less Than an Hour
- Dual O-Ring Seal
Fitment:
- 2008-2010 Ford F-250/F-350/F-450/F-550 6.4L Powerstroke
Included:
- AirDog II 5G 100 GPH Fuel Pump
- AirDog Fuel Sump
- Fuel Filter
- Water Separator
- Wiring Harness
- Fuel Lines & Fittings
- Brackets
- All Mounting Hardware
Notes:
- Limited Lifetime Warranty
- Not For Sale Or Street Use In California
Product Specs
SKU:
A7SPBF266 | AD09SMP
Brand:
AirDog
shipping remarks:
This product cannot be shipped to California
