AirDog II 5G 165 GPH Fuel Pump & Sump Kit For 1989-1993 Dodge Ram 5.9L Cummins

SKU: A7SABD540 | AD09SMP

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,086.00
$1,086.00

Free Shipping

Free ground shipping on all orders over $99
Availability:
This product cannot be shipped to California
Description

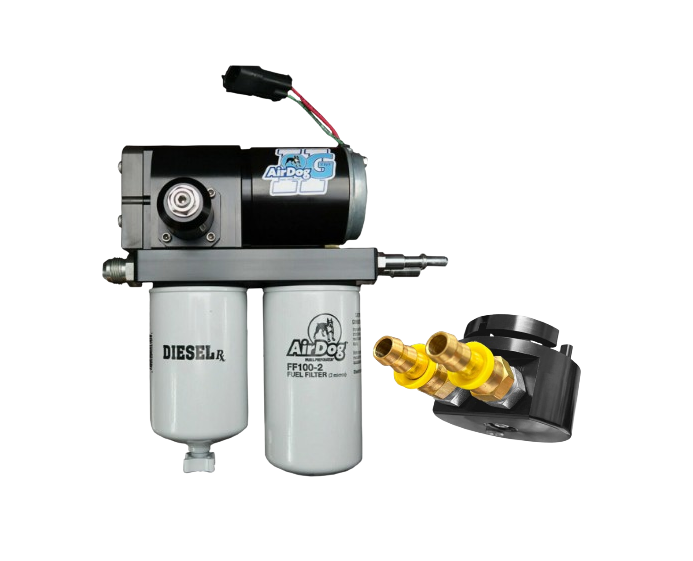

This is the AirDog® II-5G DF-165-5G fuel system for the 1989-1993 Dodge Ram 12V VE-44 5.9L Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2" bulkhead fitting. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing and factory mechanical fuel pump. The AirDog® Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified. This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

The PureFlow AirDog® universal fuel sump helps aid aftermarket fuel systems by utilizing gravity to pull fuel from the tank. Our redesigned sump has both a suction and return port! We integrated a dual o-ring seal to prevent leaks! The installation of our fuel sump eliminates the common 1/4 tank suction issue associated with a draw straw-style fuel pickup. This sump is manufactured in America using corrosion resistant components.



Fuel System Features:

  • Larger Ports Over Previous Pumps
  • Increases Engine Efficiency
  • Provides Better Fuel Flow At Pressure
  • Reliable & Quiet 5G Technology
  • 12-Gauge Wiring Harness
  • Low Flow Return For Reduce Aeration
  • Integrated Diaphragm Fuel Pressure Regulator
  • Demand Flow Design
  • 165 GPH Fuel Pump

Sump Features:

  • Can be Installed Without Dropping the Fuel Tank
  • Eliminate 1/4 Tank Problems
  • Feed and Return Port
  • Uses Corrosion Resistant Components
  • Installation Takes Less Than an Hour
  • Dual O-Ring Seal

Fitment:

  • 1989-1993 Dodge Ram 12V VE-44 5.9L Cummins

Included:

  • (1) AirDog II 5G 165 GPH Fuel System
  • (1) AirDog Fuel Sump
  • All Mounting Hardware

Notes:

  • Limited Lifetime Warranty
  • Not For Sale Or Street Use In California
Fitment
Fitment

Product Specs

SKU:
A7SABD540 | AD09SMP
Brand:
AirDog
availability remarks:
This product cannot be shipped to California
