AirDog II 5G 165 GPH Fuel Pump & Sump Kit For 1999-2003 Ford 7.3L Powerstroke
AirDog II 5G 165 GPH Fuel Pump & Sump Kit For 1999-2003 Ford 7.3L Powerstroke
AirDog II 5G 165 GPH Fuel Pump & Sump Kit For 1999-2003 Ford 7.3L Powerstroke
AirDog II 5G 165 GPH Fuel Pump & Sump Kit For 1999-2003 Ford 7.3L Powerstroke
AirDog II 5G 165 GPH Fuel Pump & Sump Kit For 1999-2003 Ford 7.3L Powerstroke
AirDog II 5G 165 GPH Fuel Pump & Sump Kit For 1999-2003 Ford 7.3L Powerstroke
AirDog II 5G 165 GPH Fuel Pump & Sump Kit For 1999-2003 Ford 7.3L Powerstroke
AirDog

AirDog II 5G 165 GPH Fuel Pump & Sump Kit For 1999-2003 Ford 7.3L Powerstroke

SKU: A7SABF592 | AD09SMP

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,026.00
$1,026.00

Free Shipping

Free ground shipping on all orders over $99
Shipping Notes:
This product cannot be shipped to California
Description

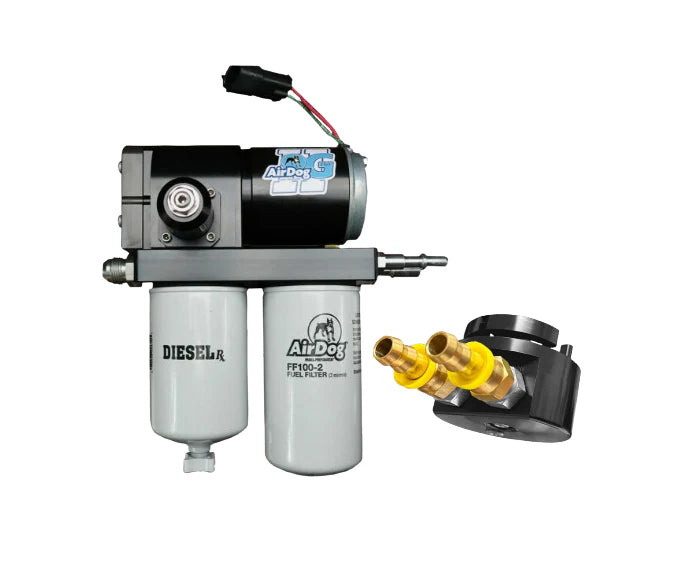

This is the AirDog® II-5G DF-165-5G fuel system for the 1999-2003 Ford 7.3L Powerstroke. This replaces the factory frame rail fuel pump. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. The suction side hooks up to the factory suction line on the frame rail. The pressure side connects to the factory feed line to the injection pump. The AirDog® Air/Vapor return is sent back to the tank through a filler neck return tee. This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

The PureFlow AirDog® universal fuel sump helps aid aftermarket fuel systems by utilizing gravity to pull fuel from the tank. Our redesigned sump has both a suction and return port! We integrated a dual o-ring seal to prevent leaks! The installation of our fuel sump eliminates the common 1/4 tank suction issue associated with a draw straw-style fuel pickup. This sump is manufactured in America using corrosion resistant components.



Fuel System Features:

  • Larger Ports Over Previous Pumps
  • Increases Engine Efficiency
  • Provides Better Fuel Flow At Pressure
  • Reliable & Quiet 5G Technology
  • 12-Gauge Wiring Harness
  • Low Flow Return For Reduce Aeration
  • Integrated Diaphragm Fuel Pressure Regulator
  • Demand Flow Design
  • 165 Gallons Per Hour

Sump Features:

  • Can be Installed Without Dropping the Fuel Tank
  • Eliminate 1/4 Tank Problems
  • Feed and Return Port
  • Uses Corrosion Resistant Components
  • Installation Takes Less Than an Hour
  • Dual O-Ring Seal

Fitment:

  • 1999-2003 Ford F-250/F-350/F-450 7.3L Powerstroke

Included:

  • AirDog II 5G 165 GPH Fuel Pump
  • AirDog Fuel Sump
  • Fuel Filter
  • Water Separator
  • Wiring Harness
  • Fuel Lines & Fittings
  • Brackets
  • All Mounting Hardware

Notes:

  • Limited Lifetime Warranty
  • Not For Sale Or Street Use In California
Fitment
Fitment

Product Specs

SKU:
A7SABF592 | AD09SMP
Brand:
AirDog
shipping remarks:
This product cannot be shipped to California
