AirDog II 5G 220 GPH Fuel Pump & Sump Kit For 1994-1998 Dodge Ram 5.9L Cummins
SKU:
A7SABD527 | AD09SMP
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,122.00
- $1,122.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Shipping Notes:
This product cannot be shipped to California

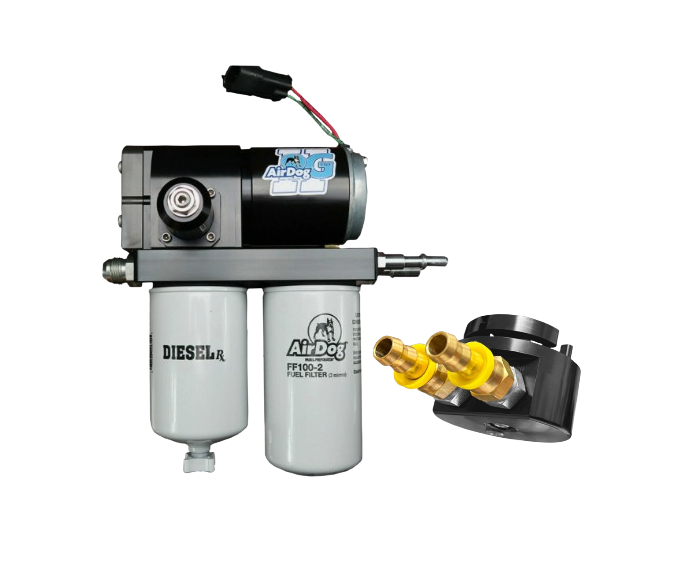

This is the AirDog® II-5G DF-220 fuel system for the 1994-1998 Dodge Ram P-Pump 12V Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A draw straw is installed in the fuel tank to supply fuel to the pump. The pressure side connects directly into the side of the P-Pump, bypassing the factory fuel filter housing and block mounted pump. The injection pump return is tied into the engine return to eliminate the need for the factory filter head. The AirDog® Air/Vapor return is sent back to the tank through the filler neck return tee. This is a 220GPH (Gallon Per Hour) lift pump system for heavily modified trucks. Check out our installation manual for a list of parts that are included with this kit.
The PureFlow AirDog® universal fuel sump helps aid aftermarket fuel systems by utilizing gravity to pull fuel from the tank. Our redesigned sump has both a suction and return port! We integrated a dual o-ring seal to prevent leaks! The installation of our fuel sump eliminates the common 1/4 tank suction issue associated with a draw straw-style fuel pickup. This sump is manufactured in America using corrosion resistant components.
Fuel System Features:
- Larger Ports Over Previous Pumps
- Increases Engine Efficiency
- 4 Bearing Motor With Intermediate Shaft
- Provides Better Fuel Flow At Pressure
- Reliable & Quiet 5G Technology
- 12-Gauge Wiring Harness
- Low Flow Return For Reduce Aeration
- Integrated Diaphragm Fuel Pressure Regulator
- Demand Flow Design
- 220 GPH Fuel Pump
Sump Features:
- Can be Installed Without Dropping the Fuel Tank
- Eliminate 1/4 Tank Problems
- Feed and Return Port
- Uses Corrosion Resistant Components
- Installation Takes Less Than an Hour
- Dual O-Ring Seal
Fitment:
- 1994-1998 Dodge Ram 2500/3500 5.9L 24V Cummins
Included:
- (1) AirDog II 5G 220 GPH Fuel System
- (1) AirDog Fuel Sump
- All Mounting Hardware
Notes:
- Limited Lifetime Warranty
- Not For Sale Or Street Use In California
Product Specs
SKU:
A7SABD527 | AD09SMP
Brand:
AirDog
shipping remarks:
This product cannot be shipped to California
