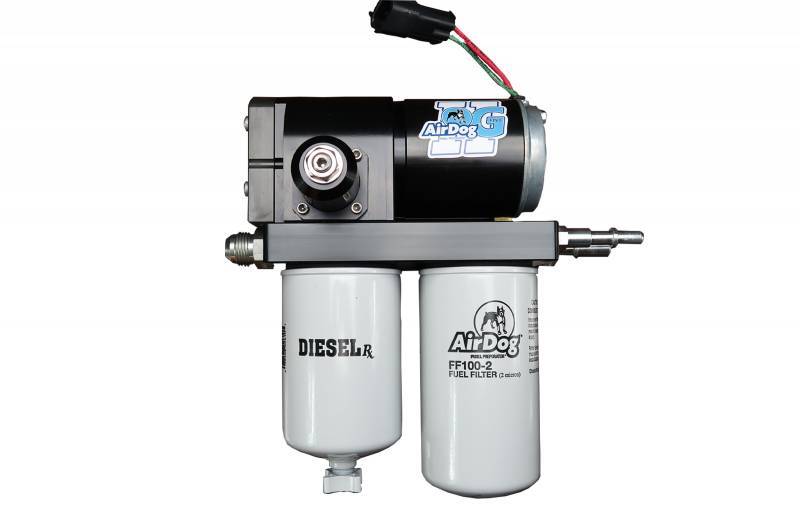

AirDog II-5G, DF-100-5G Fuel System For 1992-2000 GM 6.2L/6.5L Detroit Diesel

This is the AirDog II-5G DF-100-5G fuel system for the 1992-2000 Chevy/GMC 6.5L Diesel. This fuel system replaces your factory low pressure frame rail mounted pump. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. The suction side of the AirDog hooks up to the factory suction line. The pressure side connects directly to the factory injection pump feed line on the frame. The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This is a 100GPH (Gallon Per Hour) lift pump system. Check out our installation manual for a list of parts that are included with this kit.

Features:

• Preset @ 8 PSI
• Flows 100 Gallons Per Hour
• Supports Stock-500HP Applications
• Smoother Idle & Acceleration
• Improved Throttle Response
• CARB E.O. Number D-595-3

Specification:

• Weight: 27.0 lbs.

Fitment:

• 2000 GM 6.2L/6.5L DETROIT DIESEL
• 1999 GM 6.2L/6.5L DETROIT DIESEL
• 1998 GM 6.2L/6.5L DETROIT DIESEL
• 1997 GM 6.2L/6.5L DETROIT DIESEL
• 1996 GM 6.2L/6.5L DETROIT DIESEL
• 1995 GM 6.2L/6.5L DETROIT DIESE
• L1994 GM 6.2L/6.5L DETROIT DIESE
• L1993 GM 6.2L/6.5L DETROIT DIESE
• L1992 GM 6.2L/6.5L DETROIT DIESEL 11 USA
