AirDog II-5G, DF-100-5G Fuel System For 98-04 Dodge/Ram 5.9L With In-Tank Fuel Pump

SKU: A7SPBD354

SELECT FITMENT

See If This Product Fits Your Vehicle

$829.00
$829.00

Free Shipping

Free ground shipping on all orders over $99

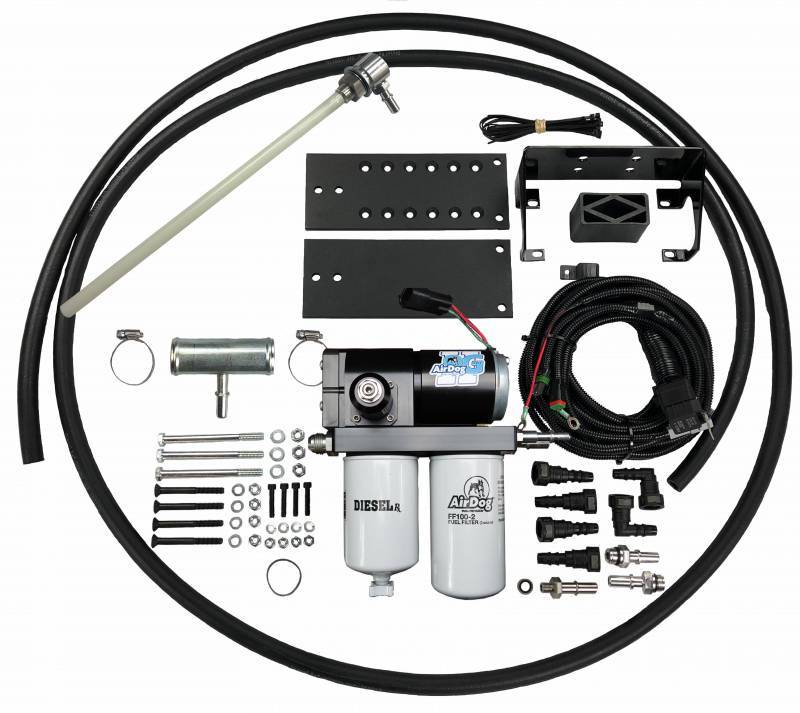

This is the AirDog II-5G DF-100 fuel system for the 1998.5-2004 Dodge Ram VP-44 and early CP3 5.9L Cummins WITH the in-tank fuel pump. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2" bulkhead fitting. This will bypass the factory in-tank lift pump. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified  This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel trucks. Check out our installation manual for a list of parts that are included with this kit.

Features:

  • Preset @ 15-17 PSI
  • Flows 100 Gallons Per Hour
  • Supports Stock-500HP Applications
  • Smoother Idle & Acceleration
  • Improved Throttle Response
  • CARB E.O. Number D-595-3

Specifications:

  •  27.0 lbs.

Fitment:

  • 2004 Dodge/Ram 5.9L CUMMINS
  • 2003 Dodge/Ram 5.9L CUMMINS
  • 2002 Dodge/Ram 5.9L CUMMINS
  • 2001 Dodge/Ram 5.9L CUMMINS
  • 2000 Dodge/Ram 5.9L CUMMINS
  • 1999 Dodge/Ram 5.9L CUMMINS
  • 1998.5 Dodge/Ram 5.9L CUMMINS



Product Specs

SKU:
A7SPBD354
Brand:
AirDog

Installation Details

Installation Instructions: Download Download 2
