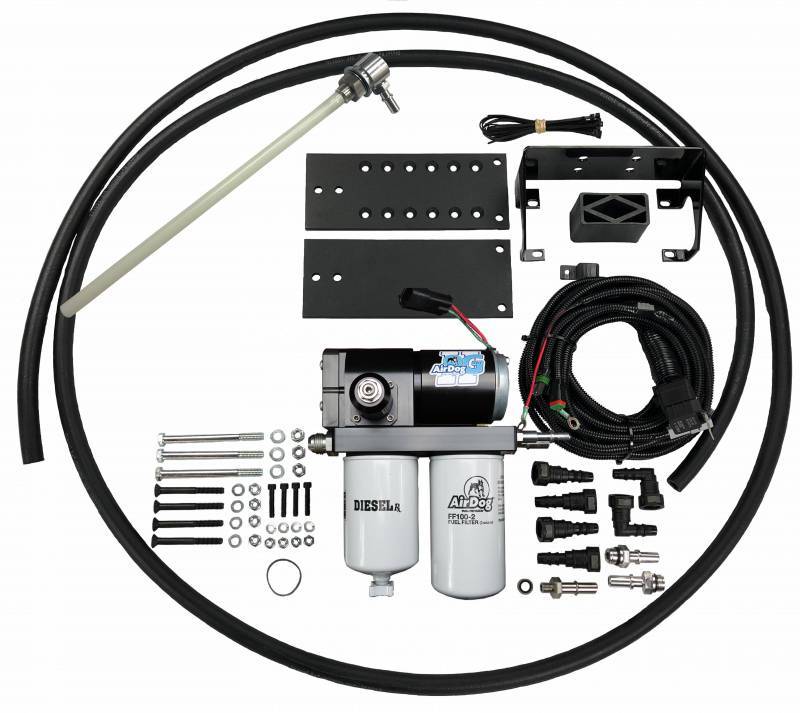

AirDog II-5G, DF-165-5G Fuel System For 2019-2023 Dodge/Ram 6.7L Cummins

This is the AirDog II-5G DF-165-5G fuel system for the 2019-2020 RAM Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a, factory-style, 1/2" bulkhead fitting. This will bypass the factory in-tank lift pump. The pressure side connects directly into the side of the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified. This is a 165GPH (Gallon Per Hour) lift pump system for stock fuel trucks. Check out our installation manual for a list of parts that are included with this kit.

Features:

• Preset @ 13-15 PSI
• Flows 165 Gallons Per Hour
• Supports 500-800HP Applications
• Smoother Idle & Acceleration
• Improved Throttle Response
• CARB E.O. Number D-595-3

Specifications:

• Weight: 27.0 lbs.

Fitment:

• 2023 Dodge/Ram 6.7L CUMMINS
• 2022 Dodge/Ram 6.7L CUMMINS
• 2021 Dodge/Ram 6.7L CUMMINS
• 2020 Dodge/Ram 6.7L CUMMINS
• 2019 Dodge/Ram 6.7L CUMMINS
