Alliant Power Fuel Injector Installation Kit For John Deere 9.0L 6090 PowerTech (RE539524 / RE527756)
Alliant Power

Alliant Power Fuel Injector Installation Kit For John Deere 9.0L 6090 PowerTech (RE539524 / RE527756)

SKU: AP0121

SELECT FITMENT

See If This Product Fits Your Vehicle

$180.29
$180.29

Free Shipping

Free ground shipping on all orders over $99
Description

Reseal a John Deere 9.0L 6090 PowerTech injector with every OE-spec piece in one bag using the Alliant Power Injector Installation Kit. It covers the feed tube connector, both body seals, the feed tube seal, nozzle chamber gasket, and line clamp bolt for 8R-series tractors, 9660/9760 STS combines, 770G/772G graders, and 4930/4940 sprayers.

Alliant Power validates, tests, and kits the components in an ISO 9001:2015 certified facility using OE-sourced or OE-spec parts, so the injector goes back in with fresh seals instead of reused ones, backed by Alliant Power technical support.

OEM P/N REFERENCE: John Deere RE539524, R63548, R505452, R74354, R131051, RE527756



Features:

  • 100% validation, test, and kitting in an ISO 9001:2015 facility
  • Components from the OE source or built to OE specifications
  • Every seal and fitting needed for one injector installation
  • Supports proper sealing and fit at injector service points
  • Helps reduce leak risk and protect fuel delivery
  • Sold per injector
  • Fit, form, and function tested to OEM standards
  • Backed by Alliant Power technical support



Specifications:

  • Brand: Alliant Power
  • Part Type: Fuel Injector Installation Kit
  • Condition: New
  • Fuel Type: Diesel
  • Sold As: Kit per injector
  • Package Weight: 0.4 lbs
  • UPC: 843497101184

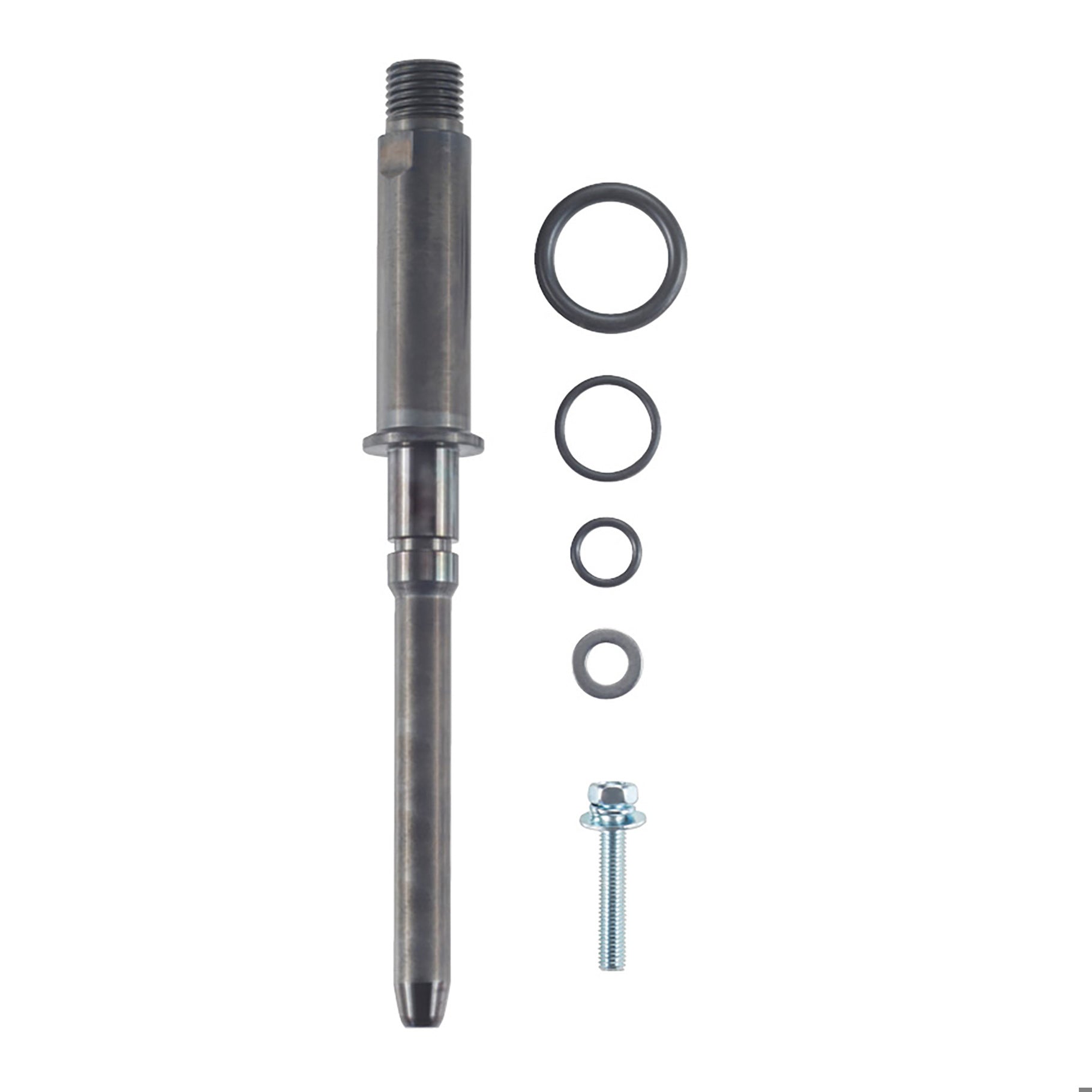

Included:

  • (1) Fuel Side Feed Tube Connector RE539524
  • (1) Side Feed Tube Seal R63548
  • (1) Injector Body Seal R505452
  • (1) Injector Body Seal R74354
  • (1) Injector Nozzle Tip Chamber Gasket R131051
  • (1) Fuel Injection Line Clamp Bolt RE527756



Fitment:

  • 2010–2013 John Deere 8270R
  • 2010–2013 John Deere 8295R
  • 2010–2013 John Deere 8320R
  • 2010–2013 John Deere 8345RT
  • 2004–2007 John Deere 9660 STS
  • 2002–2007 John Deere 9660 WTS
  • 2004–2007 John Deere 9760 STS
  • 2011–2018 John Deere 770G
  • 2011–2018 John Deere 772G
  • John Deere 3520 Sugar Cane Harvester
  • 2008–2012 John Deere 4930
  • 2012–2014 John Deere 4940
  • 2008–2011 John Deere 9230



Notes:

  • 24-Month / Unlimited-Mile Alliant Power Limited Warranty
  • Order one kit per injector being serviced
