Alliant Power Fuel System Contamination Kit For 2023-2026 Ford F-Series Super Duty 6.7L Powerstroke
SKU:
AP57022
SELECT FITMENT
See If This Product Fits Your Vehicle
- $6,319.20
- $6,319.20
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Bring the fuel system on your 2023-2026 Ford F-Series Super Duty 6.7L Powerstroke back from a contamination event in one repair with the Alliant Power Fuel System Contamination Kit. When DEF, water, gasoline, or debris passes through the high-pressure fuel pump, contamination can spread through the fuel rails, lines, and injectors. This kit replaces the affected fuel system components together to help prevent contamination-related damage from recurring.
This complete fuel system contamination kit includes the major components, hardware, and seals needed for a comprehensive fuel system repair. Components are genuine OE or OE-equivalent and end-of-line tested at 15 points for zero leaks. The kit is assembled in an ISO 9001:2015 certified facility and backed by Alliant Power's two-year, unlimited-mileage limited warranty.
OEM P/N REFERENCE: PC3Z9B246B, PC3Z9B246C, PC3Z9A543A, PC3Z9H529C, PC3Z9D280A, Motorcraft CN6076-CN6080
Features:
- New fuel pump OE-equivalent PC3Z-9A543-A
- 8 injectors - cylinders 1-4 (PC3Z-9H529-A/C) and 5-8 (PC3Z-9H529-B/D)
- 8 high pressure lines (LC3Z-9A337-A / -B) and 8 hold-down bolts
- Right side rail LC3Z-9D280-C, fuel pipe and fuel cooler
- Fuel filter kit PC3Z-9N184-C
- Intake, vacuum pump, EGR tube, turbo coolant and oil fill seals
- Replaces Ford PC3Z-9B246-B and PC3Z-9B246-C
- No core charge - all-new components
Specifications:
- Brand: Alliant Power
- Part Number: AP57022
- Type: Fuel System Contamination Kit
- Condition: New
- Application: 2023-2026 Ford F-Series Super Duty 6.7L Powerstroke
- Replaces: PC3Z9B246B, PC3Z9B246C, PC3Z9A543A, PC3Z9H529C, PC3Z9D280A, Motorcraft CN6076-CN6080, FIP2
- UPC: 843497115211
- Weight: 52 lb
- Country of Origin: Czech Republic

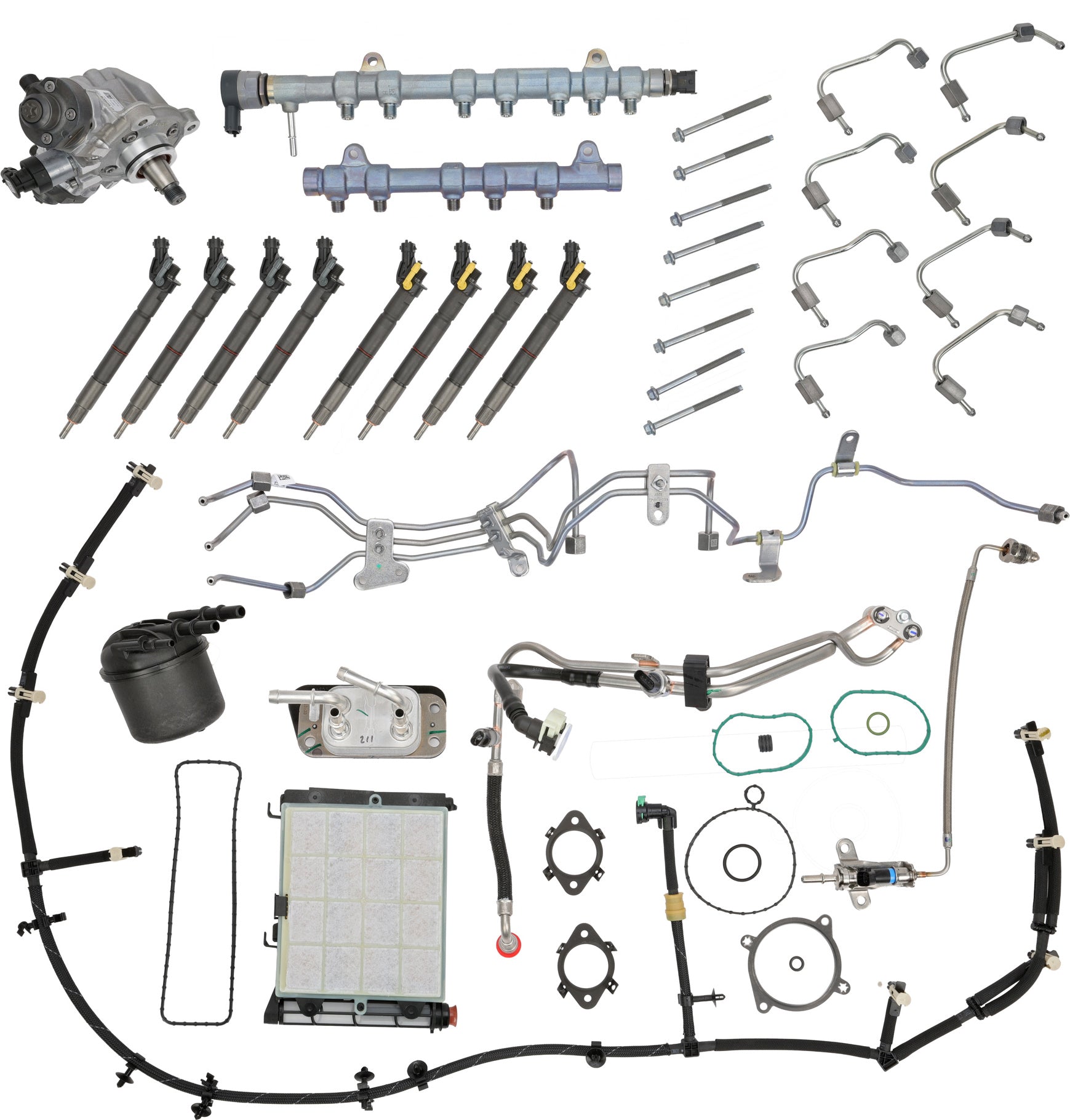

Included:
- (1) New Fuel Pump OE-eq PC3Z-9A543-A
- (4) Injectors Cyl 1-4 OE-eq PC3Z-9H529-A / C
- (4) Injectors Cyl 5-8 OE-eq PC3Z-9H529-B / D
- (4) HP Lines Cyl 3/4/5/6 OE-eq LC3Z-9A337-B
- (4) HP Lines Cyl 1/2/7/8 OE-eq LC3Z-9A337-A
- (8) Hold Down Bolts OE-eq FC3Z-00812-AA
- (1) Rail - Right OE-eq LC3Z-9D280-C
- (1) Fuel Pipe OE-eq LC3Z-9J280-A
- (1) Fuel Cooler OE-eq LC3Z-9N103-B
- (1) Fuel Filter Kit OE-eq PC3Z-9N184-C
- (1) Intake Flap Gasket LC3Z-9E936-A
- (2) Upper Intake Seals LC3Z-9439-B
- (1) Vacuum Pump Gasket HC3Z-2A572-A
- (1) Coolant Pipe O-Ring BC3Z-8527-N
- (1) Turbo Coolant O-Ring FT4Z-6N652-D
- (1) Turbo Coolant Seal HL3Z-6N652-A
- (2) EGR Tube Gaskets BC3Z-9E464-F
- (1) Oil Fill O-Ring W716324-S300
Fitment:
- 2023-2026 Ford F-250 Super Duty 6.7L Powerstroke
- 2023-2026 Ford F-350 Super Duty 6.7L Powerstroke
- 2023-2026 Ford F-450 Super Duty 6.7L Powerstroke
- 2023-2026 Ford F-550 Super Duty 6.7L Powerstroke
Notes:
- 24-Month / Unlimited-Mile Alliant Power Limited Warranty
- Alliant's page lists F-Series only - fitment shown as F-250 through F-550; verify F-600 and larger
