Alliant Power Head Installation Kit With ARP Head Studs For 2001-2004 Chevy Silverado/GMC Sierra 2500/3500 6.6L Duramax LB7
SKU:
AP0045
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,539.58
- $1,539.58
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Do the LB7 head job once and do it right with the Alliant Power Head Installation Kit with ARP Studs. It covers 2001-2004 Chevy Silverado and GMC Sierra 2500HD/3500 and 2003-2004 Chevy Kodiak / GMC TopKick C4500/C5500 with the 6.6L Duramax LB7, pairing the upper-engine sealing set with ARP head studs so the heads clamp harder than factory bolts allow.
The kit seals the oil, coolant, and combustion interfaces of the upper engine in one box, and the ARP studs deliver the consistent, repeatable clamp load a lifted or tuned Duramax needs to keep the head gaskets sealed. It replaces the GM 97729798 / Mahle HS54580 gasket set and Fel-Pro 02-10483-01 combination and is backed by Alliant Power technical support.
OEM P/N REFERENCE: General Motors 97729798; Mahle HS54580; Fel-Pro 02-10483-01; Victor HSU26269; GM403HSC
Features:
- Complete upper-engine gasket set for the 6.6L Duramax LB7
- ARP head studs included for higher, repeatable clamp load
- Seals oil, coolant, and combustion interfaces in one kit
- Built for tuned, towing, and lifted LB7 head service
- Replaces GM 97729798 / Mahle HS54580 gasket set
- Fit, form, and function tested to OEM standards
- Fits 2001-2004 Chevy Silverado/GMC Sierra 2500/3500 LB7
- Also fits 2003-2004 Chevy Kodiak / GMC TopKick C4500/C5500 LB7
Specifications:
- Brand: Alliant Power
- Part Type: Head Installation Kit with Studs
- Condition: New
- Engine: 6.6L Duramax LB7
- Fuel Type: Diesel
- Head Studs: ARP
- Coverage: Both cylinder heads
- Package Weight: 15.4 lbs
- UPC: 843497100453

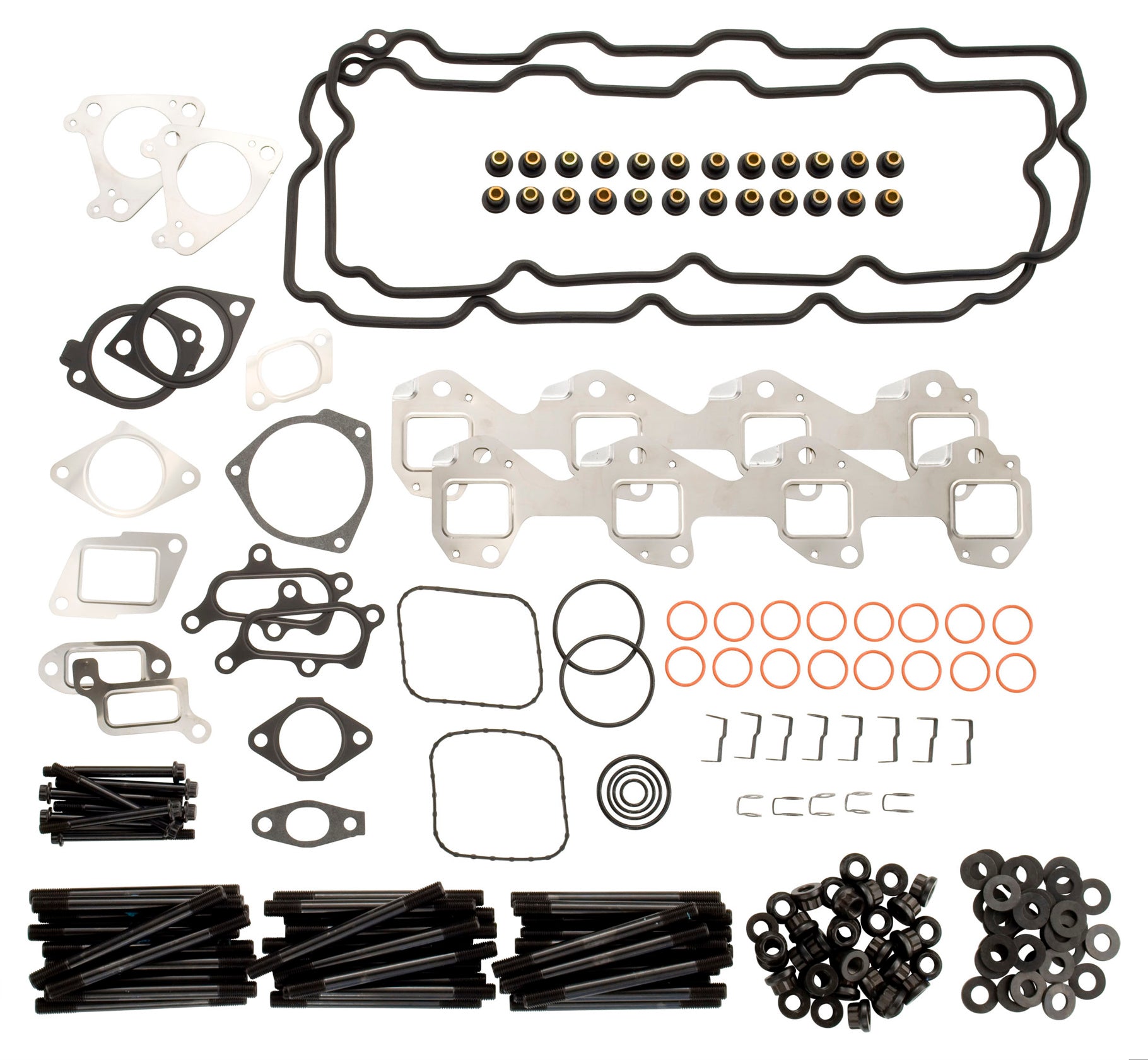

Included:
- (1) Upper Engine Gasket Set
- (1) ARP Head Stud Kit
Fitment:
- 2001-2004 Chevy Silverado 2500HD 6.6L Duramax LB7
- 2001-2004 Chevy Silverado 3500 6.6L Duramax LB7
- 2001-2004 GMC Sierra 2500HD 6.6L Duramax LB7
- 2001-2004 GMC Sierra 3500 6.6L Duramax LB7
- 2003-2004 Chevy Kodiak C4500/C5500 6.6L Duramax LB7
- 2003-2004 GMC TopKick C4500/C5500 6.6L Duramax LB7
Notes:
- 24-Month / Unlimited-Mile Alliant Power Limited Warranty
- Cylinder heads should be checked for flatness and cracks before installation
