Alliant Power Injection Pressure Regulator (IPR) Valve Seal Kit For 2003-2010 Ford 6.0L Powerstroke
SKU:
AP0035
- $47.03
- $47.03
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Renew the seals on your injection pressure regulator with the Alliant Power IPR Valve Seal Kit, built for the 2003-2007 Ford F-250, F-350, F-450 and F-550, the 2003-2005 Ford Excursion and the 2004-2010 Ford E-350 and E-450 with the 6.0L Powerstroke diesel. It supplies the replacement sealing components and filter screen the IPR valve needs, so the existing valve can go back into service instead of being replaced.
The kit packs four pieces: an O-ring, a backup ring, an orifice O-ring and a replacement screen. It services Alliant AP63416 and AP63417 valves, and the included screen also replaces the different original screen used on the AP63416, giving the Ford 6.0L Powerstroke IPR valve fresh sealing surfaces at a fraction of the cost of a new valve.
OEM P/N REFERENCE: Ford 3C3Z9H529A
Features:
- Renews the seals on the 6.0L Powerstroke IPR valve
- Fits Alliant AP63416 and AP63417 IPR valves
- Replacement screen also replaces the AP63416 original screen
- Replacement O-ring included
- Backup ring included
- Orifice O-ring included
- Four-piece kit services the existing valve
- Replaces Ford 3C3Z9H529A
Specifications:
- Brand: Alliant Power
- Part Number: AP0035
- Product Type: IPR Valve Seal Kit
- Quantity: 1 Kit
- Component Count: 4
- Engine: 6.0L Powerstroke
- Fuel Type: Diesel
- Compatible Valves: AP63416 / AP63417
- O-Ring: Included
- Backup Ring: Included
- Orifice O-Ring: Included
- Screen: Included
- Warranty: 24-Month / Unlimited-Mile

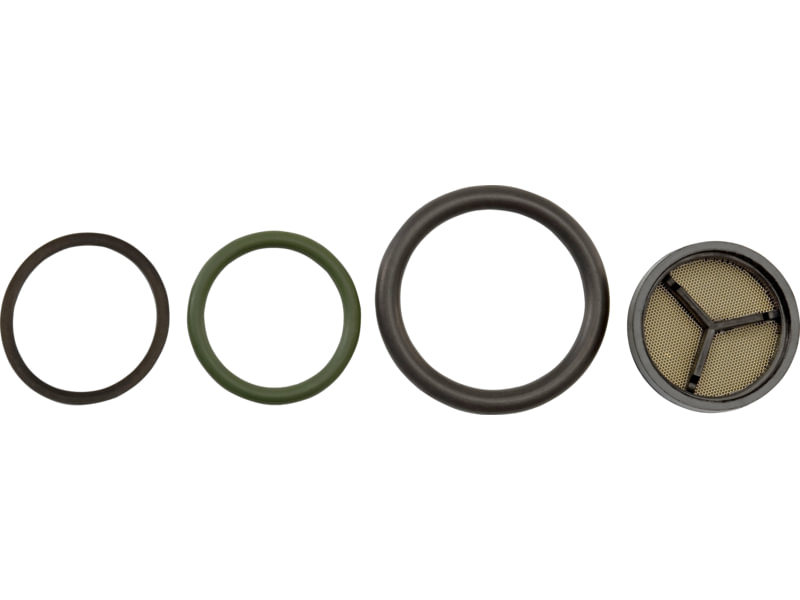

Included:
- (1) O-Ring
- (1) Backup Ring
- (1) Orifice O-Ring
- (1) Replacement Screen
Fitment:
- 2003-2007 Ford F-250 6.0L Powerstroke
- 2003-2007 Ford F-350 6.0L Powerstroke
- 2003-2007 Ford F-450 6.0L Powerstroke
- 2003-2007 Ford F-550 6.0L Powerstroke
- 2003-2005 Ford Excursion 6.0L Powerstroke
- 2004-2010 Ford E-350 6.0L Powerstroke
- 2004-2010 Ford E-450 6.0L Powerstroke
Notes:
- 24-Month / Unlimited-Mile Alliant Power Limited Warranty
- Warranty does not cover modifications, alterations, or misuse
- IPR valve is not included; this kit services the existing valve
- Valve and sealing surfaces are inspected for damage and seals lubricated with clean engine oil at assembly
- Fits AP63416 and AP63417 valve applications
Product Specs
SKU:
AP0035
Brand:
Alliant Power
