Alliant Power Reman Fuel System Contamination Kit For 2020-2022 Ford F-250/F-350/F-450/F-550 6.7L Powerstroke
SKU:
AP57003
SELECT FITMENT
See If This Product Fits Your Vehicle
- $4,713.28
- $4,713.28
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Bring the fuel system on your 2020-2022 Ford F-250, F-350, F-450, or F-550 Super Duty and 2021-2022 F-650 or F-750 6.7L Powerstroke back from a fuel contamination event with the Alliant Power Remanufactured Fuel System Contamination Kit. When DEF, water, gasoline, or debris contaminates the high-pressure fuel system, it can damage the pump and send metal debris through the rails, lines, and injectors. This comprehensive kit replaces the affected fuel system components together, helping reduce the risk of repeat damage.

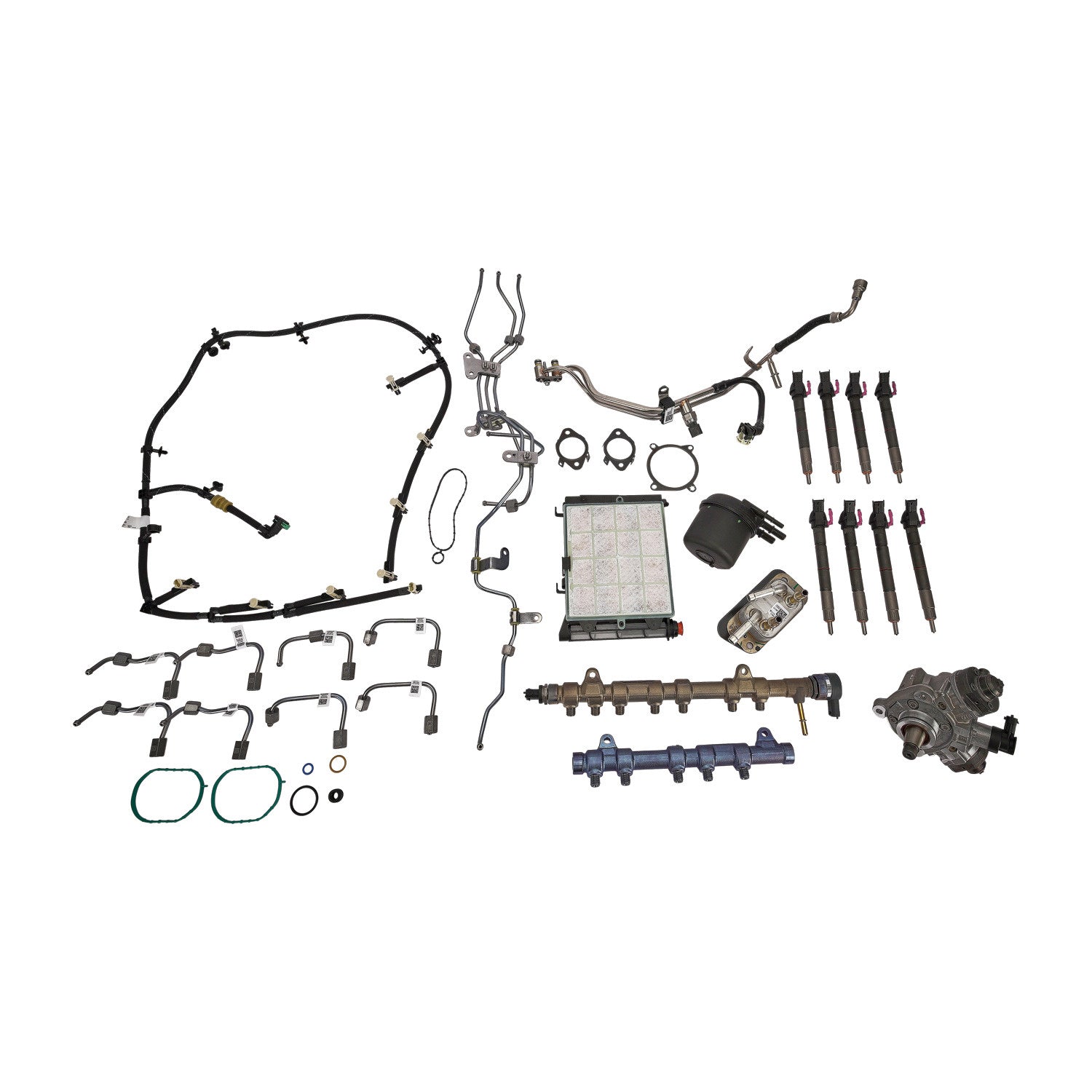

The kit includes a Bosch CP4 injection pump, Bosch OE injectors, high-pressure injector lines, pump-to-rail lines, injector return line, pump supply/return line, right and left high-pressure fuel rails, fuel filter kit, fuel cooler, and the necessary gaskets, seals, and O-rings for installation. Each fuel component is genuine OE or OE-equivalent and end-of-line tested at 15 points, and the kit is assembled in an ISO 9001:2015 certified facility.
OEM P/N REFERENCE: LC3Z-9B246-A, LC3Z-9B246-B, LC3Z-9A543-A, 0445010859
Features:
- Complete 2020-2022 6.7L fuel system replacement in one kit
- 100% genuine OE or OE-equivalent validated components
- Every fuel component 100% end-of-line tested at 15 points
- Bosch CP4 injection pump OE LC3Z-9A543-A
- 8 Bosch OE injectors (4x LC3Z-9H529-A, 4x LC3Z-9H529-B)
- Both high-pressure rails, all 8 injector lines and 4 pump-to-rail
- Fuel cooler, fuel filter kit and every intake/EGR/coolant gasket for
- Alliant Power two-year unlimited mileage warranty
Specifications:
- Brand: Alliant Power
- Part Number: AP57003
- Type: Remanufactured Fuel System Contamination Kit
- Condition: Remanufactured
- Application: 2020-2022 Ford F-250 / F-350 / F-450 / F-550 Super Duty and 2021-2022 F-650 / F-750 6.7L Powerstroke
- Replaces: LC3Z-9B246-A, LC3Z-9B246-B, LC3Z-9A543-A, 0445010859
- UPC: 843497112616
- Core Charge: $1000
- Core Item: COR65316
- Weight: 52.6 lb
- Country of Origin: United States
Included:
- (1) Bosch CP4 Injection Pump OE LC3Z-9A543-A
- (4) Bosch OE Injectors OE LC3Z-9H529-A
- (4) Bosch OE Injectors OE LC3Z-9H529-B
- (4) High Pressure Injector Lines OE LC3Z-9A337-B
- (4) High Pressure Injector Lines OE LC3Z-9A337-A
- (4) Pump to Rail Lines OE LC3Z-9E964-B / 9A337-C / 9A337-D / 9A337-E
- (1) Injector Return Line OE LC3Z-9A564-B
- (1) Pump Supply Return Line OE LC3Z-9J280-A
- (1) Right Side High Pressure Rail OE LC3Z-9D280-C
- (1) Left Side High Pressure Rail OE LC3Z-9D280-D
- (1) Fuel Filter Kit OE PC3Z-9N184-C (FD4647)
- (1) Fuel Cooler OE LC3Z-9N103-A
- (1) Intake Flap Gasket OE LC3Z-9E936-A
- (2) Upper Intake Seals OE LC3Z-9439-B
- (1) Vacuum Pump Gasket OE HC3Z-2A572-A
- (1) Coolant Pipe O-Ring OE BC3Z-8527-N
- (1) Turbo Coolant Seal OE HL3Z-6N652-A
- (1) Oil Fill O-Ring OE W716324-S300
- (2) EGR Tube Gaskets OE BC3Z-9E464-F
Fitment:
- 2020-2022 Ford F-250 Super Duty 6.7L Powerstroke
- 2020-2022 Ford F-350 Super Duty 6.7L Powerstroke
- 2020-2022 Ford F-450 Super Duty 6.7L Powerstroke
- 2020-2022 Ford F-550 Super Duty 6.7L Powerstroke
- 2021-2022 Ford F-650 6.7L Powerstroke
- 2021-2022 Ford F-750 6.7L Powerstroke
Notes:
- Core charge $1000 - refunded when the rebuildable core is returned
- 24-Month / Unlimited-Mile Alliant Power Limited Warranty
- Core return required
