ARB Air locker Differential Dana 44/30 SPL For 53-19 Jeep/Chevy/Ford/Dodge/Isuzu

SKU: RD117

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,299.95
$1,299.95
$1,121.00

Free Shipping

Free ground shipping on all orders over $99

The world's premier traction aid, an ARB Air Locker keep you moving in all conditions. With the flick of the switch an Air Locker gives instant lock at any moment and its super strong design allows activation at any speed allowing you to tackle the toughest terrain. The advantage of the Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the internal differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates like a conventional open differential. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact.



Features:
  • Provides 100 percent traction on demand without affecting on-road drivability or driveline wear
  • Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort and safety of the driver's seat
  • Two-piece design is ultra-durable and extremely strong ? minimal moving parts ensure maximum reliability
  • Patented timed locking mechanism offers high strength and ultra-fast unlocking
  • Steel reinforced, elastomer bonded annular seal designed to handle the most extreme climatic temperatures on Earth
Specifications:
  • Color: Silver
  • Material: Steel
  • Fitment Info: Axle: Dana 44; Position: Rear; Shaft: 1.31 in; Spline: 30; Ratio: 3.73 Dn
  • Fitment Info: Axle: Dana 44; Position: Rear; Shaft: 1.31 in; Spline: 30; Ratio: All
  • Fitment Info: Axle: IFS; Position: Front; Shaft: 1.12 in; Spline: 17; Ratio: All
  • Fitment Info: Axle: Dana 44; Position: Rear; Shaft: 1.31 in; Spline: 30; Ratio: 4.56 Up
  • Fitment Info: Axle: Dana 44; Position: Rear; Shaft: 1.31 in; Spline: 30; Ratio: 4.13 Up
  • Fitment Info: Axle: Dana 44; Position: Front; Shaft: 1.31 in; Spline: 30; Ratio: 3.73 Up
  • Fitment Info: Axle: Dana 44; Position: Rear; Shaft: 1.31 in; Spline: 30; Ratio: 3.73 Up
  • Fitment Info: Axle: Dana 44; Position: Front; Shaft: 1.31 in; Spline: 30; Ratio: 4.10
  • Fitment Info: Axle: Dana 44; Position: Rear; Shaft: 1.31 in; Spline: 30; Ratio: 4.10
  • Prop 65: No
  • Warranty: 5 YR
Fitment:
  • 1969-1974 Chevrolet Blazer
  • 1975-1980 Chevrolet K10
  • 1963-1974 Chevrolet K10 Pickup
  • 1968-1980 Chevrolet K10 Suburban
  • 1975-1980 Chevrolet K20
  • 1968-1974 Chevrolet K20 Pickup
  • 1968-1980 Chevrolet K20 Suburban
  • 1975-1980 Chevrolet K5 Blazer
  • 1994-2004 Dodge Ram 1500
  • 1975-1989 Dodge W100
  • 1968-1974 Dodge W100 Pickup
  • 1960-1967 Dodge W100 Series
  • 1977-1993 Dodge W150
  • 1975-1980 Dodge W200
  • 1969-1974 Dodge W200 Pickup
  • 1981-1993 Dodge W250
  • 1967 Dodge W300 Series
  • 1971-1996 Ford Bronco
  • 1967-1976 Ford F-100
  • 1977-1996 Ford F-150
  • 1953-1999 Ford F-250
  • 1997 Ford F-250 HD
  • 1999-2019 Ford F-250 Super Duty
  • 1981-1984 Ford F-350
  • 1970-1980 GMC Jimmy
  • 1975-1978 GMC K15
  • 1975-1978 GMC K15 Suburban
  • 1967-1974 GMC K15/K1500 Pickup
  • 1968-1974 GMC K15/K1500 Suburban
  • 1979-1980 GMC K1500
  • 1979-1980 GMC K1500 Suburban
  • 1975-1978 GMC K25
  • 1975-1978 GMC K25 Suburban
  • 1968-1974 GMC K25/K2500 Pickup
  • 1968-1974 GMC K25/K2500 Suburban
  • 1979-1980 GMC K2500
  • 1979-1980 GMC K2500 Suburban
  • 2001-2002 Honda Passport
  • 1999-2000 Isuzu Amigo
  • 2002-2004 Isuzu Axiom
  • 1999-2004 Isuzu Rodeo
  • 2001-2003 Isuzu Rodeo Sport
  • 1984-2001 Jeep Cherokee
  • 1969-1975 Jeep CJ5
  • 1986 Jeep CJ7
  • 1987-1989 Jeep Comanche
  • 1986-1991 Jeep Grand Wagoneer
  • 1974-1988 Jeep J10
  • 1974-1988 Jeep J20
  • 1970 Jeep J-3500
  • 1970 Jeep J-3600
  • 1970 Jeep J-3700
  • 1970 Jeep J-3800
  • 1997-2006 Jeep TJ
  • 1975 Jeep Wagoneer
  • 1988-2017 Jeep Wrangler
  • 2018 Jeep Wrangler JK

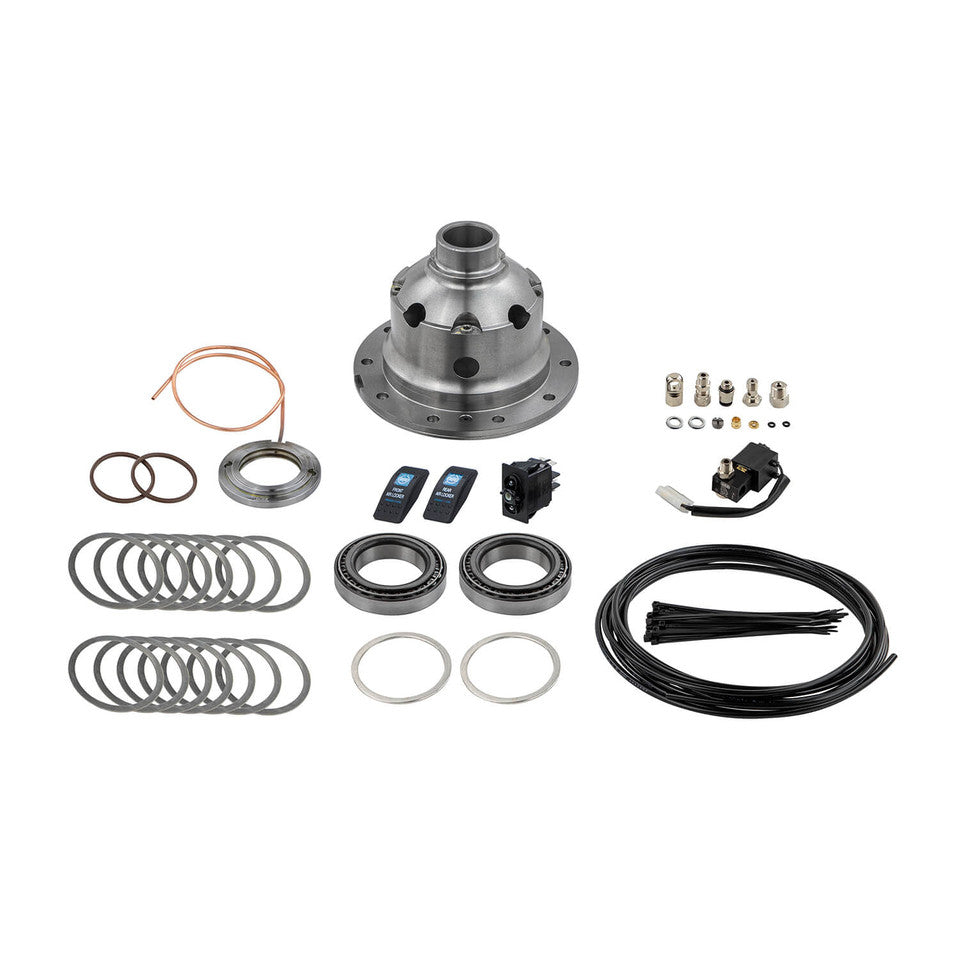

Included:
  • Air Locker Differential
  • Activation Switch
  • Solenoid Valve
  • Air Line
  • Bulkhead Fitting
Note:
  • Air compressor required for operation (sold separately)

Product Specs

SKU:
RD117
Brand:
ARB
