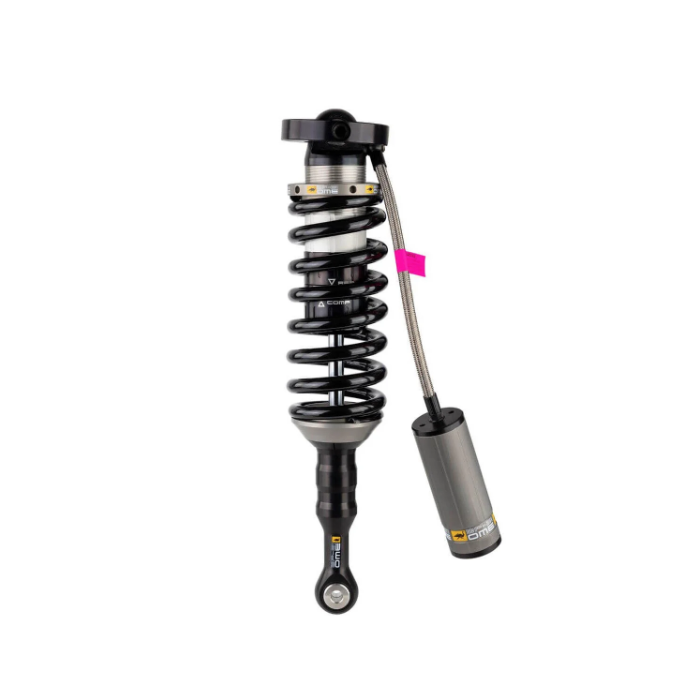

ARB Old Man Emu BP-51 Coilover Front driver side For 10-24 Toyota 4Runner w/KDSS
SKU:
BP5190004L
SELECT FITMENT
See If This Product Fits Your Vehicle
- $949.95
- $949.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Elevate your driving experience with Old Man Emu's BP5190004L BP-51 bypass coilovers, engineered with cutting-edge, patent-pending technology to deliver exceptional on- and off-road performance. Designed for coilover suspension systems, these are use high-quality X5K grade steel coils tailored to specific for Toyota 4Runner applications for optimal performance.
Bypass technology in BP-51 coilovers provides an additional fluid flow path around the piston, allowing the shock to adapt to different driving conditions. This design offers a smoother, more comfortable ride during normal driving, while increasing control on rough terrain by generating more damping at the ends of the stroke to absorb larger impacts and prevent harsh bottoming out.
With external on-vehicle rebound and compression adjustments, these bypass-style coilovers allow you to fine-tune ride comfort and control based on your vehicle’s load, terrain, or trip requirements. Damping increases near the end zones, providing enhanced control during full compression and extension while maintaining ride comfort at standard height. The 51mm bore shock absorber body is constructed from 6061-grade aluminum with a Type III hard anodized finish, ensuring excellent heat dissipation and corrosion resistance.
Features:
- Provides 0 to 3 inches of front lift height
- Internal Bypass Technology for unmatched dampening
- Adjustable damping for rebound and compression, enabling custom tuning for various terrains and vehicle setups
- Position and Velocity-sensitive damping for a smooth ride
- Monotube Design with Remote Reservoir
- 51mm bore 6061 T6 aluminum body for excellent heat dispersion
- The remote reservoir increases oil capacity and helps prevent shock fade during heavy off-road use or prolonged driving on rough terrain.
- Type 3 40-micron hard anodizing for excellent heat dissipation, corrosion resistance, and stone damage protection
- Designed for both on- and off-road performance, tested in Australia’s harshest conditions
- Bolt-on installation with no vehicle modifications required
- Provides exceptional ride comfort on-road and superior chassis control off-road
- Designed, developed, tested, and manufactured in-house by ARB’s Old Man Emu engineers in Australia
Specifications:
- Construction: 51mm Bore, 6061 Grade Aluminum Body; Polyethylene Shaft Guard; Rubber Bushings
- Open Length: 545mm
- Closed Length: 439mm
- Design: Bypass
- Material: Aluminum
- Color: Grey
Fitment:
- 2010-2024 Toyota 4Runner 4WD w/KDSS
Included:
- (1) Front BP-51 Coilover (driver side)
Note:
- 3 Year Warranty
- Intended for front driver side only
- Requires BP-51 Fit Kit VM80010009 (w/KDSS) quantity (1) per pair of front coilovers
- No top mounting bushings supplied, use OME3133 for quantity (2). OE bushings may be re-used if in good condition
- A Strut Top Hat Kit may be required if the original equipment is worn. OMETH002 for quantity (2)
- Old Man Emu UCA0004 Upper control arms are recommended for 0 to 2-inch lifts. 2.5 to 3-inch lifts they are required to achieve factory alignment specs
- Passenger side BP5190002R is also required
Product Specs
SKU:
BP5190004L
Brand:
ARB
