ARB/OME Rear Leaf Springs 2.5" Lift w/U-Bolts/Bushings For 05-23 Toyota Tacoma

SKU: (2) EL111R | (4) OMEU53B | (2) OMESB108

SELECT FITMENT

See If This Product Fits Your Vehicle

$839.55
$839.55

Free Shipping

Free ground shipping on all orders over $99

Upgrade your 2005-2023 Toyota Tacoma with this complete ARB Old Man Emu rear lift kit, engineered for enhanced handling, load support, and off-road capability. The kit includes two medium load rear leaf springs that deliver 2.5" of lift for 2005-2015 models and 2.0" of lift for 2016-2023 models, ideal for daily driving, overlanding, or work use. Each spring features draw-tapered, diamond-cut leaves for even load distribution, a military wrap for added strength, and re-greasable nylon pads to reduce friction. Shot-peening and full scragging ensure durability and resistance to sagging, giving your Tacoma a reliable, smoother ride on or off the trail.

This all-in-one kit also includes two spring bushing kits made from polyurethane and rubber for extended service life, and four heavy-duty U-bolts for secure leaf spring installation. The flat axle seat on the leaf springs ensures safe, stress-free axle mounting, while the two-stage leaf pack adapts to varying loads for optimal comfort. Pair this setup with Old Man Emu shocks for a complete suspension transformation ready to tackle any adventure.

Features:

  • Provides 2.5" lift for 05-15 Tacoma, 2.0" lift for 16-23
  • Draw-tapered diamond-cut leaves for strength and comfort
  • Military wrap design adds extra safety and durability
  • Re-greasable pads reduce friction and extend service life
  • Fully scragged to reduce sagging over long-term use
  • Shot-peened springs to reduce stress and increase life
  • Flat axle seat ensures safe and secure axle mounting
  • Includes U-bolts for secure rear leaf spring installation
  • Poly/rubber bushings offer durability and long service

Specifications:

  • Rear Lift: Provides 2.5" of lift for 05-15 model years
  • Rear Lift: Provides 2.00" of lift for 16-23 model years
  • Stack Height: 66 mm
  • Number of Leaves: 4+2
  • Eye Diameter: 40 mm (F) / 40 mm (R)
  • Weight: 27.4 kg
  • Primary Free Camber: 175 mm
  • Spring Rate: 157 / 482 lbf/in
  • Color: Black
  • Material: Steel
  • Load Capacity: 0lbs-GVW

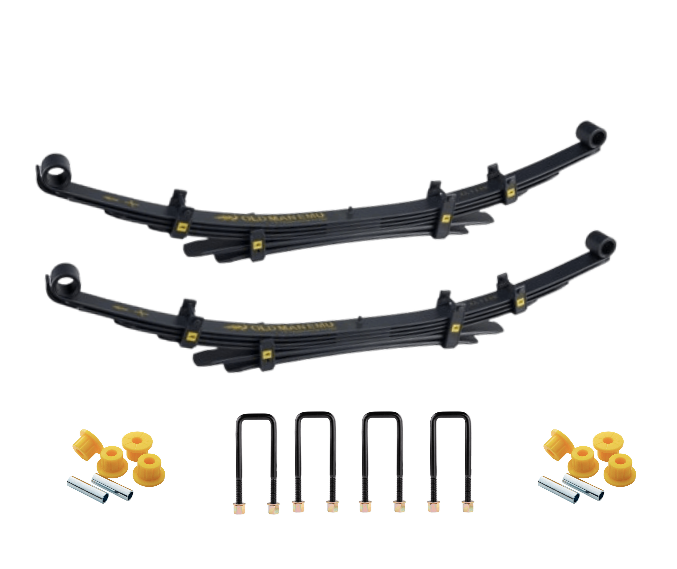

Included:

  • (2) Old Man Emu 2-2.5" Leaf Springs
  • (2) Leaf Spring Bushing Kit
  • (4) Leaf Spring U-Bolts

Fitment:

  • 2005-2023 Toyota Tacoma 2WD/4WD 6 Lug

Notes:

  • 3 Year Warranty

Product Specs

SKU:
(2) EL111R | (4) OMEU53B | (2) OMESB108
Brand:
ARB
