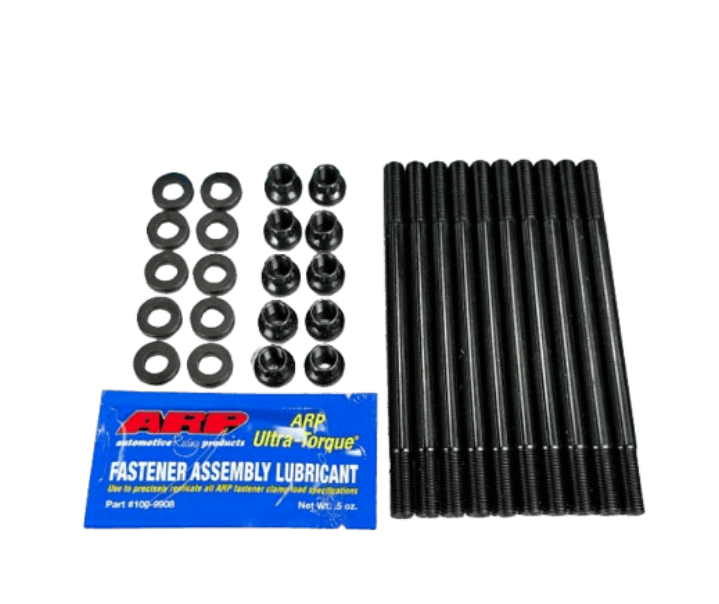

ARP Pro Series Head Studs Kit M1 For 88-95 Honda Civic/Del Sol D16Z D16A6 D16Z6 1.6L

SKU: 208-4301

SELECT FITMENT

See If This Product Fits Your Vehicle

$169.99
$169.99

Free Shipping

Free ground shipping on all orders over $99

ARP uses premium grade 8740 alloy that is heat treated to 200,000 p.s.i. This procedure ensures complete heat penetration and the results are far superior to those lesser quality studs from other manufacturers who just dump pieces in a basket and hope for the best. Following heat treat, each stud is centerless ground to make it as close to perfectly concentric as possible. This procedure involves about ten very slight cuts and results in an exceptionally straight part. ARP studs are thread rolled after heat treat which gives them about 1000% better fatigue strength than studs that are threaded prior to heat treat (a very common industry practice). It costs more to do it this way because it’s tough on tooling but the results are well worth the extra effort.

Features:
  • Premium 8740 alloy heat-treated to 200,000 psi strength
  • Studs placed vertically for complete heat penetration
  • Centerless ground for near-perfect concentricity
  • Thread rolled after heat-treat for max fatigue strength
  • Exceptionally straight studs improve gasket alignment
  • Undercut short studs ensure consistent clamping force
  • Prevents head gasket failure in high-load conditions
  • Trusted by pro engine builders in all forms of racing

Specifications:

  • Fastener Style: Stud
  • Thread Size: M10 x 1.25
  • Undercut Stud: No
  • Head Style: 12-point
  • Fastener Material: 8740 chromoly
  • Fastener Color: Black Washers
  • Included: Yes
  • Quantity: Sold as a kit

Included:

  • (1) Head Stud Kit
Fitment:
  • 1992-1995 Honda Civic EX 1.6L - 4 Cylinder (D16A6/D16Z6)
  • 1992-1995 Honda Civic Si 1.6L - 4 Cylinder (D16A6/D16Z6)
  • 1993-1994 Honda Del Sol 1.6L - 4 Cylinder (D16A6/D16Z6)
Note:
  • Lifetime Warranty



Product Specs

SKU:
208-4301
Brand:
