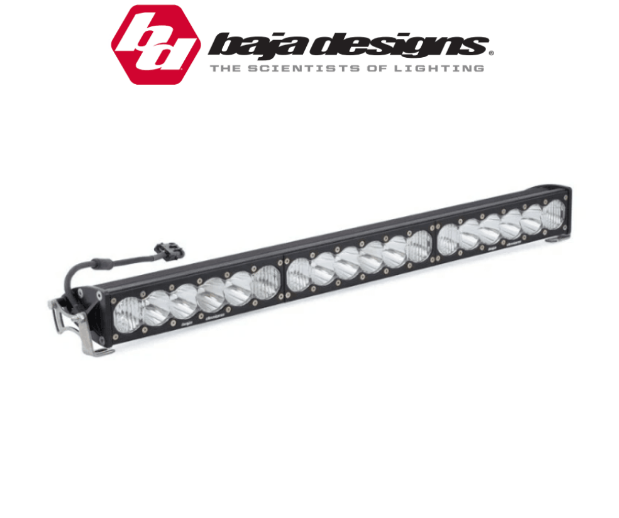

Baja Designs OnX6 30" LED Light Bar Driving/Combo Clear Lens - Universal
SKU:
FGXX-453003
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,132.95
- $1,132.95
$0.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
The Baja Designs OnX6+ LED light bar is the pinnacle of off-road lighting. Integrating our trademarked high-speed spot reflectors along with our next-generation LED technology for increased performance and versatility with superior efficiency, the OnX6+ is ready to illuminate the trails or take you to the win at the Baja 1000. The OnX6+ is offered in multiple sizes ranging from 10-inch bars providing 10,817 total raw lumens to 50-inch bars that push out 39,430 total raw lumens illuminating lighting zones 1, 2, 3, 4 simultaneously while pushing into zone 5. Vertical adjustments can be made and locked in, offering the best beam pattern in front of the vehicle no matter where it is mounted. Race proven, the mil-spec aluminum housing of the OnX6+ has been designed to withstand rugged conditions that off-roaders will endure. Our exclusive MoistureBlock technology ensures the light bar remains waterproof and dustproof even in the harshest conditions.
Customize your beam pattern or change damaged lenses without voiding the warranty on the OnX6+ with our uService technology. Installation of the OnX6+ is easy and comes with mounting brackets that can be used in any application. When you need an LED light bar that offers high-output LEDs with exceptional intensity, improved visibility and safety in various conditions, the OnX6+ LED light bar is the only choice for those that demand the best in lighting. Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection.
Features:
- Produces up to 31,910 lumens for powerful off-road visibility
- Driving/Combo beam pattern lights zones 1 through 5 effectively
- uService tech allows lens changes without voiding warranty
- MoistureBlock seals provide waterproof and dustproof protection
- Aircraft-grade aluminum housing handles rugged trail abuse
- CopperDrive runs LEDs at 100% for peak performance and output
- 5000K daylight color improves clarity and reduces eye fatigue
- Includes mounting brackets for a quick and secure installation
Specifications:
- Amperage Rating (A): 21.7 (High); 17.1 (Low)
- Average Rated Life (hr.): 49,930
- Beam Pattern: Driving/Combo
- Bezel Material: Billet Machined Aluminum
- Brightness (Lumens): 31,910 (High); 25,450 (Low)
- Description: Straight; Driving/Combo; Clear
- Housing Color: Black
- Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
- Lens Color: Clear
- Lens Material: Hardcoated Polycarbonate
- Light Quantity: 1
- Lighting Modes: High Beam/Low Beam
- Lighting Quantity: 18
- Lighting Technology: LED
- Lighting Type: Forward Projecting
- Mounting Hardware Description: Mounting Brackets
- Mounting Hardware Included: Yes
- Mounting Hardware Material: Stainless Steel
- Overvoltage Protection: Built-In
- Product Type: OnX6+ 30 Inch LED Light Bar
- Universal or Specific: Universal
- Wattage (W): 281 (High); 225 (Low)
- Wiring Harness Included: No
Included:
- (1) Baja Designs 30" OnX6 Series LED Light Bar
- (1) Mounting Hardware Kit
Fitment:
- Universal
Notes:
- Limited Lifetime Warranty
- Wiring harness not included. Please use 640119 = OnX6+ 30in Light Bar
Product Specs
SKU:
FGXX-453003
Brand:
Baja Designs
