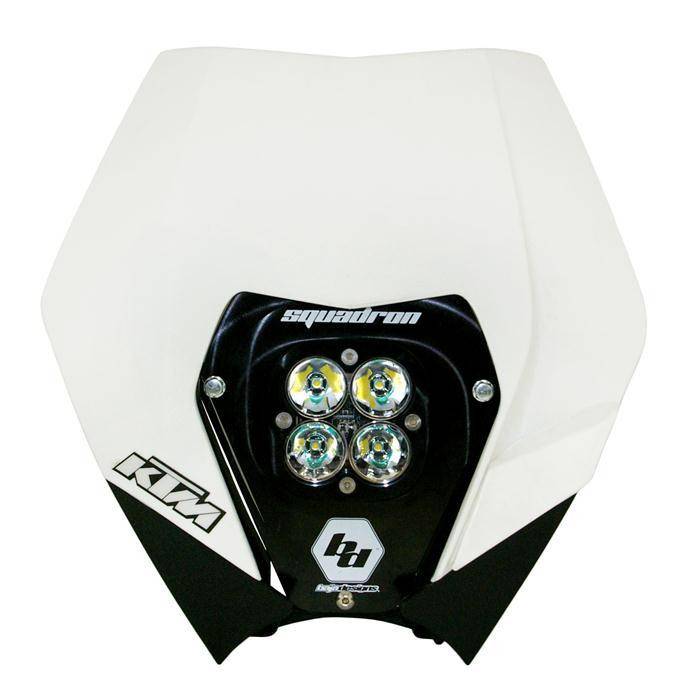

Baja Designs KTM Squadron Pro (D/C) Headlight Kit w/Shell- Clear - For 08-13 KTM
SKU:
FGXX-497061
SELECT FITMENT
See If This Product Fits Your Vehicle
- $329.95
- $329.95
$0.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Specifically designed for those riders who are looking for more than just your average headlight. The Squadron Pro, LED KTM 2008-ON Kit W/ Head Shell is in a league of its own, producing 4,900 lumens and 40 watts giving you the perfect mix of power and performance. The Squadron Pro, LED KTM 2008-ON Kit W/ Head Shell has been meticulously designed by our engineers to give our riders an extremely light weight (12 ounces) race light, while presenting a unique style and appearance. The Squadron Pro, LED KTM 2008-ON Kit W/ Head Shell is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Features:
- Limited Lifetime Warranty – Complete Purchase Protection
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
For the EXC’s that were made from 2007-2011 that are carbureted, our lights will require the purchase of #61-1040 (DC conversion kit). 2013 SX, XC, XC-W KTM models will need to purchase the 2014-2016 KTM kits. Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.
Dimensions:
- Depth (in.): 2.770
- Height (in.): 3.070
- Length (in.): 3.070
- Weight (lbs.): 0.750
Specifications:
- Amperage Rating (A): 3
- Average Rated Life (hr.): 49,930
- Beam Pattern: Driving/Combo
- Bezel Material: Billet Machined Aluminum
- Brightness (Lumens): 4095
- Description: Driving/Combo; Clear
- Housing Color: Black
- Housing Material: Hard Anodized and Powder Coated Cast Aluminum
- Lens Color: Clear
- Lens Material: Hardcoated Polycarbonate
- Light Quantity: 1
- Lighting Modes: Beam
- Lighting Quantity: 4
- Lighting Technology: Cree LED (2 Types)
- Lighting Type: Forward Projecting
- Mounting Hardware Included: Yes
- Mounting Hardware Material: Stainless Steel
- Overvoltage Protection: Built-In
- Product Type: Squadron Pro LED Light Pod
- Wattage (W): 41.400
- Wiring Harness Included: No
Standards & Compliance:
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Fitment:
- 2011-13 KTM 250 SX-F/250 XC-F/250 XCF-W
- 2012-13 KTM 350 EXC-F
- 2011-13 KTM 350 SX-F/350 XC-F
- 2012-13 KTM 350 XCF-W
- 2008-12 KTM 450 XC-W
- 2012-13 KTM 500 EXC
Product Specs
SKU:
FGXX-497061
Brand:
Baja Designs
