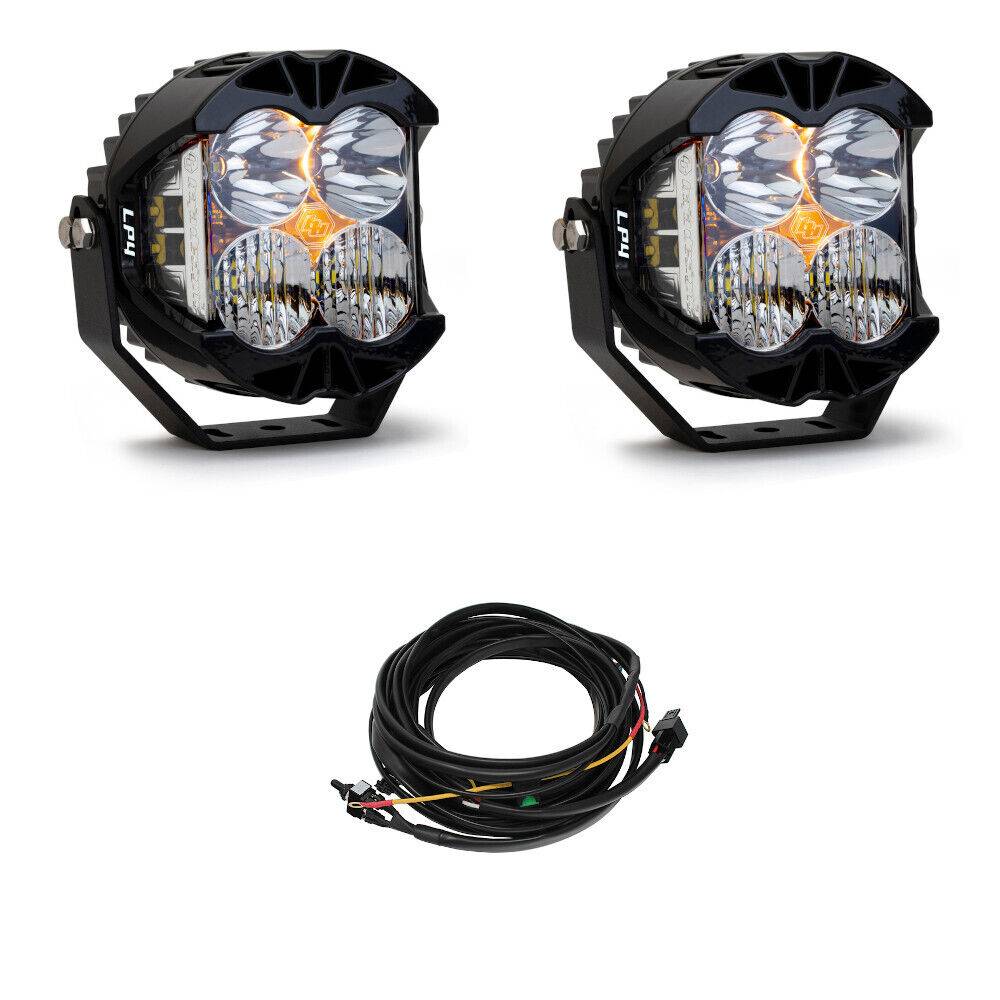

Baja Designs LP4 Pro Universal LED Auxiliary Light Pods/Wire Harness
SKU:
(2)290003 | 640172
SELECT FITMENT
See If This Product Fits Your Vehicle
- $957.85
- $957.85
$0.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200 degree spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance. With an amber day-time running light, the LP4 will fulfill all your lighting needs.
Light Features:
- Satisfactions Guarantee – 30 Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService® – Replaceable Lenses And Optics
- ClearView® – All The Light, Right Where You Need It
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
Harness Features:
- Wiring harness with plug and play Deutsch style connectors
- Built in splitter to power two LP9 or LP6 Lights
- Large automotive style ring terminals
- 3-position, 30amp DC Rated, DPDT, On-Off-On Switch to operate high and low beam independently
- Extra wire lead with splice connector to operate amber daytime running light (DRL)
- 20A/40A Relay & 30 amp inline fuse
- 12 foot length for battery to instrument cluster
- 15 foot length for instrument cluster to light mounting location
Specifications (Per Light):
- Amperage Rating (A) 5.500
- Average Rated Life (hr.) 49,930
- Backlight Amperage Rating (A) 0.350
- Backlight Wattage (W) 4.830
- Beam Pattern Driving/Combo
- Bezel Material Billet Machined Aluminum
- Brightness (Lumens) 8857
- Description Driving/Combo; Clear
- Housing Color Black
- Housing Material Hard Anodized Machined Aluminum
- Lens Color Clear
- Lens Material Hardcoated Polycarbonate
- Light Quantity 1
- Lighting Modes Beam/Day-Time Running Backlighting
- Lighting Quantity 4
- Lighting Technology LED
- Lighting Type Forward Projecting
- Mounting Hardware Included Yes
- Mounting Hardware Material Stainless Steel
- Overvoltage Protection Built-In
- Product Type LP4 Pro LED Light Pod
- Secondary Amperage Rating (A) 1.000
- Secondary Brightness (Lumens) 1972
- Secondary Light Quantity 4 LEDs
- Secondary Lighting Technology LED
- Secondary Lighting Type Integrated Peripheral Technology (IPT)
- Secondary Wattage (W) 15
- Terminal Connector DT06-4S Deutsch
- Terminal Type Mating Connector
- Universal or Specific Universal
- Wattage (W) 75.900
Fitment:
- Universal
Included:
- (2) LP4 Pro Pod Lights
- Brackets
- Wiring Harness
- All Mounting Hardware
Note:
- Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care
Product Specs
SKU:
(2)290003 | 640172
Brand:
Baja Designs
lens color:
Clear
light brand:
Baja
light color:
White
lighting type:
LED
