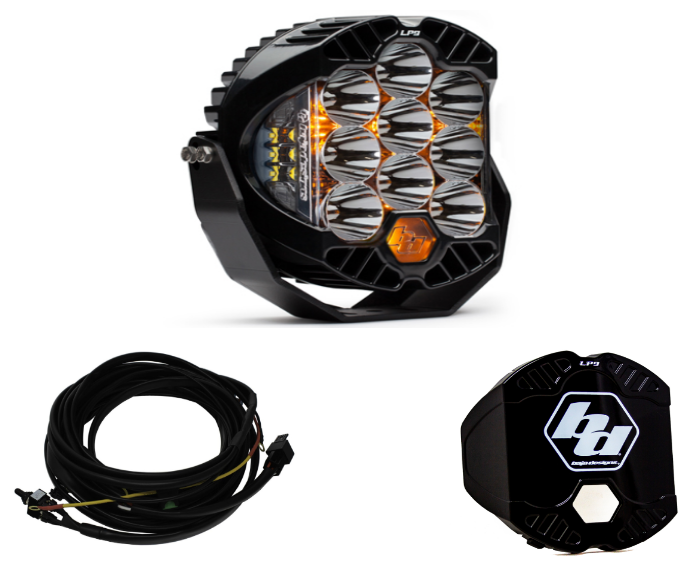

Baja Designs LP9 Pro Spot LED Light Pod Kit w/ Amber Backlight-Wiring-Rock Guard
SKU:
320001 | 640172 | 328001
SELECT FITMENT
See If This Product Fits Your Vehicle
- $746.85
- $746.85
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
This rock guard/light cover fits the LP9. It is designed to protect from harsh terrain that may throw dirt, dust and rocks at your LP9 LED lights. If you are looking for extra protection from your riding environments and a cool cover, then the LP9 rock guard is your answer! The wiring harness is all you will need to in order to get full versatility and functionality from your LP9 or LP6 lights
Features:
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Light Pod Specs:
- Amperage Rating (A) 9
- Average Rated Life (hr.) 49,930
- Backlight Amperage Rating (A) 0.200
- Backlight Wattage (W) 2.800
- Beam Pattern Spot
- Bezel Material Billet Machined Aluminum
- Brightness (Lumens) 12547
- Description Spot; Clear
- Housing Color Black
- Housing Material Hard Anodized Machined Aluminum
- Lens Color Clear
- Lens Material Hardcoated Polycarbonate
- Light Quantity 1
- Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
- Lighting Quantity 9
- Lighting Technology LED
- Lighting Type Forward Projecting
- Mounting Hardware Included Yes
- Mounting Hardware Material Stainless Steel
- Overvoltage Protection Built-In
- Product Type LP9 Pro LED Light Pod
- Secondary Amperage Rating (A) 1.520
- Secondary Brightness (Lumens) 2302
- Secondary Light Quantity 6 LEDs
- Secondary Lighting Technology LED
- Secondary Lighting Type Integrated Peripheral Technology (IPT)
- Secondary Wattage (W) 21
- Terminal Connector DT06-4S Deutsch
- Terminal Type Mating Connector
- Universal or Specific Universal
- Wattage (W) 124.200
Wiring Harness Specs:
- Application: LP9/LP6 Pro
- Description: 2 Light Harness
- Mounting Hardware Included: No
- Product Type: LP9/LP6 Pro 2-Light Max Wiring Harness
- Switch Included: Yes
- Switch Type: On/Off/On
- Terminal Type: Deutsch Connectors
- Universal or Specific: Universal
- Wiring Harness Description: 2 Light Harness
- Wiring Harness Included: Yes
- Wiring Harness Length (in.): 144
Fitment:
- Universal
Included:
- (1) Wiring Harness
- (1) Black Rock Guard
- (1) LP9 Pro Spot LED Light Pod W/ Amber Backlight
- All Mounting Hardware
Note:
- Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care
Product Specs
SKU:
320001 | 640172 | 328001
Brand:
Baja Designs
lens color:
Clear
light brand:
Baja
light color:
White
lighting type:
LED
part type:
Lighting
