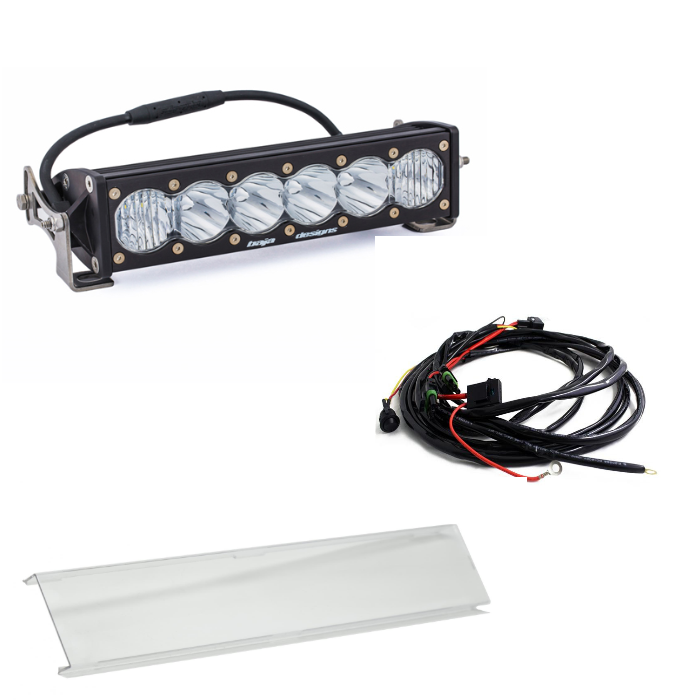

Baja Designs OnX6+ 10" Driving/Combo Light Bar w/ Wiring Harness & Clear Guard
SKU:
451003 | 640115 | 458410
SELECT FITMENT
See If This Product Fits Your Vehicle
- $494.85
- $494.85
$0.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
At an impressive high lumens, the brightest just got up to 69 percent brighter than our previous generation. The OnX6 plus LED light bar also integrates Baja Designs’ trademarked driving/combo reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
This harness is designed specifically for the Baja Designs OnX6 Plus, and the S8 light bar. The harness is rated for x1 10 inch-20 inch OnX6 light bar, or x1 10 inch-30 inch S8 light bar. We spend a substantial amount of time developing these harnesses to ensure they are safe, and reliable for your adventures. The installation of this harness is simple, the harness has positive and negative terminals to be ran to your battery. The harness has 1 plug for the OnX6 Plus or S8 that easily plugs in using a weather resistant connector. The rest is a matter of routing throughout your vehicle.
The OnX6 Rock Guards are designed for day or nighttime use. We have three color options to suit all your needs. Whether you need a black light cover to comply with local laws, want to use the amber guard to quickly switch between white and amber light, or the clear rock guard for additional protection from sand blasting and rogue rocks.
Features:
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Light Bar Specs:
- Amperage Rating (A): 7.700
- Average Rated Life (hr.): 49,930
- Beam Pattern: Driving/Combo
- Bezel Material: Billet Machined Aluminum
- Brightness (Lumens): 10,817 (High); 9,230 (Low)
- Description: Straight; Driving/Combo; Clear
- Housing Color: Black
- Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
- Lens Color: Clear
- Lens Material: Hardcoated Polycarbonate
- Light Quantity: 1
- Lighting Quantity: 6
- Lighting Technology: LED
- Lighting Type: Forward Projecting
- Mounting Hardware Description: Mounting Brackets
- Mounting Hardware Included: Yes
- Mounting Hardware Material: Stainless Steel
- Overvoltage Protection: Built-In
- Product Type: OnX6+ 10 Inch LED Light Bar
- Universal or Specific: Universal
- Wattage (W): 106.260
Wiring Harness Specs:
- Switch Included: Yes
- Switch Type: On/Off
- Terminal Connector: Three-Pin Connection
- Terminal Type: Splice Connectors
- Universal or Specific: Universal
Fitment:
- Universal
Included:
- (1) Clear Rock Guard
- (1) Wiring Harness
- (1) 10 Inch Driving/Combo Light Bar
- All Mounting Hardware
Note:
- Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care
