Baja Designs S1 Dual Fog Pocket Light Kit- Clear/Clear For 19-22 GMC Sierra 1500
SKU:
FGXX-448085
SELECT FITMENT
See If This Product Fits Your Vehicle
- $911.95
- $911.95
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
The Baja Designs Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your GMC Sierra 1500. Available in White or Amber, this kit utilizes the factory fog pocket location to pack two S1 lights on each side producing 2,320 raw lumens at 19w. This kit is controlled by the factory fog switch to operate the lower pair S1 lights. The upper pair of S1 lights are operated by your high beams. The included wiring harness is designed to be used in conjunction with factory light switches, or a switch power management unit. If you're looking to add not only safety but lighting performance this is your kit! Backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in purchase protection. US Patent Number 11273751. Note: (1) Does not fit GMC Sierra 1500 3.0 diesel models (2) Does not fit Sierra 1500 equipped with engine block heater.

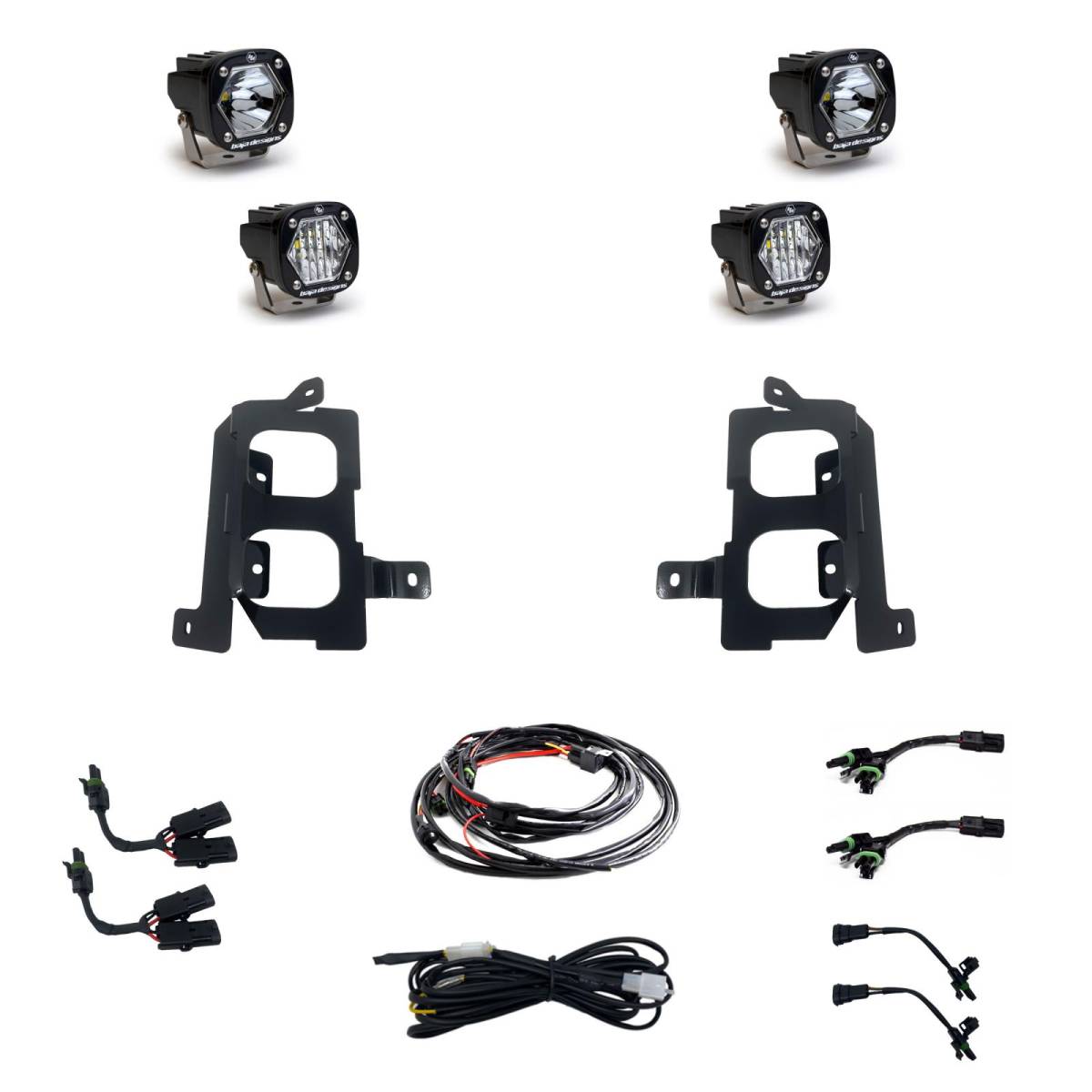

Kit comes with:
- (2x) S1 Spot Clear
- (2x) S1 Wide Cornering (Clear)
- (2x) Mounting Brackets
- (1x) Wiring Harness 640117
- (1x) Trigger Switch Harness 640180
- (2x) Splitter Harness 613607
- (2x) Anti-Backfeed Harness 600017
- All necessary mounting hardware
Feature:
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Safely Driving LEDs at 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
Note: (1) Does not fit GMC Sierra 1500 3.0 diesel models (2) Does not fit Sierra 1500 equipped with engine block heater.
Dimensions:
- Depth: 2.100 inches
- Height: 2.100 inches
- Length: 2.100 inches
- Weight: 0.400 pounds
Specification:
- Amperage Rating (A): 1.420
- Average Rated Life (hr.): 49,930
- Beam Pattern: Wide Cornering/Spot
- Bezel Material: Billet Machined Aluminum
- Brightness (Lumens): 2320
- Description: Spot; Clear & Wide Cornering; Clear
- Housing Color: Black
- Housing Material: Hard Anodized and Powder Coated Cast Aluminum
- Lens Color: Clear
- Lens Material: Hardcoated Polycarbonate
- Light Quantity: 1
- Lighting Modes: Beam
- Lighting Quantity: 1
- Lighting Technology: LED
- Lighting Type: Forward Projecting
- Mounting Hardware Included: Yes
- Mounting Hardware Material: Stainless Steel
- Overvoltage Protection: Built-In
- Product Type: S1 LED Light Pod
- Voltage: 9-28
- Wattage (W): 19.596
- Wiring Harness Included: No
Standards & Compliance:
- Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
- Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
- Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Fitment:
- 2019-2022 GMC Sierra 1500
Product Specs
SKU:
FGXX-448085
Brand:
Baja Designs
