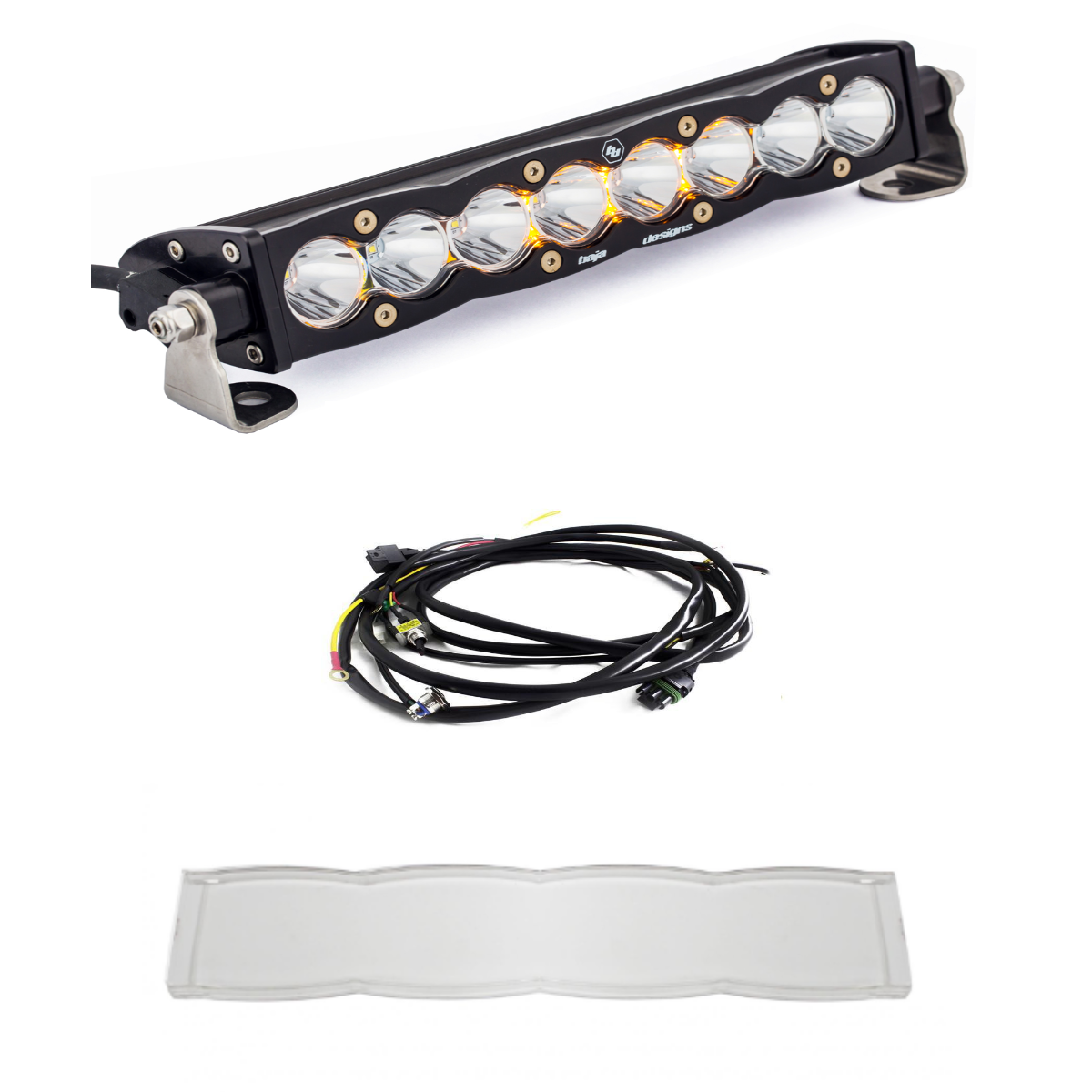

Baja Designs S8 10" Clear LED Spot Light Bar Kit W/ Wiring Harness & Clear Guard
SKU:
701001 | 640122 | 708203
SELECT FITMENT
See If This Product Fits Your Vehicle
- $432.85
- $432.85
$0.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
The S8 offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 for 10" section, the S8 is available from 10" to 50" and also features high-performance reflectors, and an amber backlit feature. The S8 is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection!
This harness takes all the guess work out of installation and is incredibly high quality suited for race use! Put your dimmer/backlit mode to use! Includes On/Off Toggle switch for primary light bar function, as well as a separate On/Off switch for secondary (Amber Backlight/ Laser) function. Heavy duty wire gauge that can handle any size bar. Complete with battery ring terminals, relay, sheathing, fuse. 100 inch wire length between battery ring terminals and weather pack for bumper or roof mounting.
The S8 Rock Guards are designed for day or nighttime use. We have three color options to suit all your needs. Whether you need a black light cover to comply with local laws, want to use the amber guard to quickly switch between white and amber light, or the clear rock guard for additional protection from sand blasting and rogue rocks.
Features:
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Light Bar Specs:
- Amperage Rating (A) 4.200
- Average Rated Life (hr.) 49,930
- Beam Pattern Spot
- Bezel Material Billet Machined Aluminum
- Brightness (Lumens) 6324
- Description Spot; Clear
- Housing Color Black
- Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
- Lens Color Clear
- Lens Material Hardcoated Polycarbonate
- Light Quantity 1
- Lighting Modes Beam/Amber Backlit Feature
- Lighting Quantity 8
- Lighting Technology Cree LED
- Lighting Type Forward Projecting
- Mounting Hardware Description Mounting Brackets
- Mounting Hardware Included Yes
- Mounting Hardware Material Stainless Steel
- Overvoltage Protection Built-In
- Product Type S8 10 Inch LED Light Bar
- Universal or Specific Universal
- Wattage (W) 57.960
Wiring Harness Specs:
- Application OnX6/Hybrid/Laser/S8
- Description 1 Bar; Mode Switch
- Mounting Hardware Included No
- Product Type OnX6/Hybrid/Laser/S8 Wiring Harness w/ Mode Switch
- Switch Included Yes
- Switch Type On/Off Switch; Mode Switch
- Terminal Connector Three-Pin Connections
- Terminal Type Splice Connectors
- Universal or Specific Universal
- Wiring Harness Description Heavy-Duty Wire Gauge
- Wiring Harness Included Yes
- Wiring Harness Length (in.) 100
Fitment:
- Universal
Included:
- (1) Wiring Harness
- (1) Clear Rock Guard
- (1) S8 10 Inch Clear LED Spot Light Bar
- All Mounting Hardware
Note:
- Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care
Product Specs
SKU:
701001 | 640122 | 708203
Brand:
Baja Designs
Condition:
New
