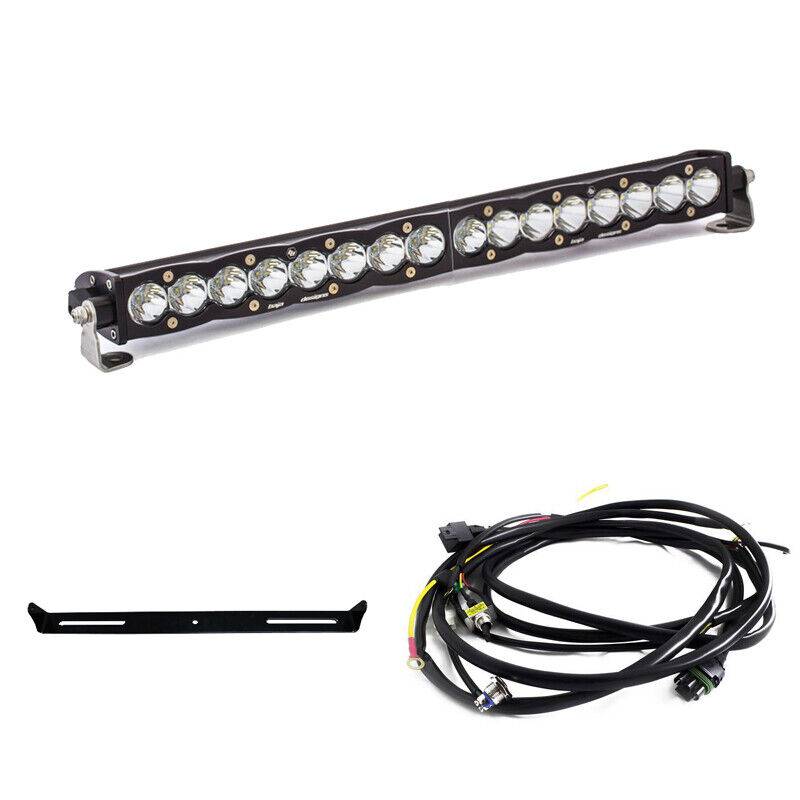

Baja Designs S8 20" Spot LED Light Bar w/ Mount & Harness Kit
SKU:
702001 | 618001 | 640122
SELECT FITMENT
See If This Product Fits Your Vehicle
- $715.85
- $715.85
$0.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Baja Design’s latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 9,040 lumens of pure power, low amp draw of 6.66 amps, and nearly 50,000 hours of LED life. The S8 also features upgraded reflectors, an amber backlit feature, and new scalloped housing design. The S8 is backed by our 30 Day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!
This Universal, OnX6/S8 20" U-Cradle Mount Kit allows you to mount an OnX6 20" or S8 20" on your vehicle with little to no difficulty. There are two adjustable mounting positions along with one solid mount position in the center, giving you ease of installation to your specific application.
The S8/IR Wire Harness w/Mode-2 Bar max 325 watts takes all the guesswork out of installation and is incredibly high quality suited for race use! Put your dust and strobe modes to use! This harness allows you to use the high beam or toggle switch to turn on the light bars.
The S8/IR Wire Harness w/Mode-2 Bar max 325 watts takes all the guesswork out of installation and is incredibly high quality suited for race use! Put your dust and strobe modes to use! This harness allows you to use the high beam or toggle switch to turn on the light bars.
Features:
- Satisfactions Guarantee – 30 Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService® – Replaceable Lenses And Optics
- ClearView® – All The Light, Right Where You Need It.
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
Harness Features:
- Includes Toggle switch for On/Off and Momentary button for dust and strobe modes
- Heavy duty wire gauge that can handle any size bar
- Complete with battery ring terminals, relay, sheathing, fuse
- 100" wire length between battery ring terminals and weatherpack for bumper or roof mounting
Product Specifications:
- Lumens: 9,040 Utilizing 16 Cree LEDs
- Wattage/Amps: 80W / 6.66A
- Dimensions: 20” x 3” x 1.6”
- Weight: 3.4 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Fitment:
- Universal
Included:
- S8 20” LED Light Bar
- Mounting Brackets
- x1 20" Universal, OnX6/S8 20" U-Cradle Mount Kit
- S8/IR Wire Harness w/Mode-2 Bar max 325 watts
Note:
- Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights (Lighting Zone 4 & 5)
- Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions
Product Specs
SKU:
702001 | 618001 | 640122
Brand:
Baja Designs
lighting type:
LED
part type:
Lighting
