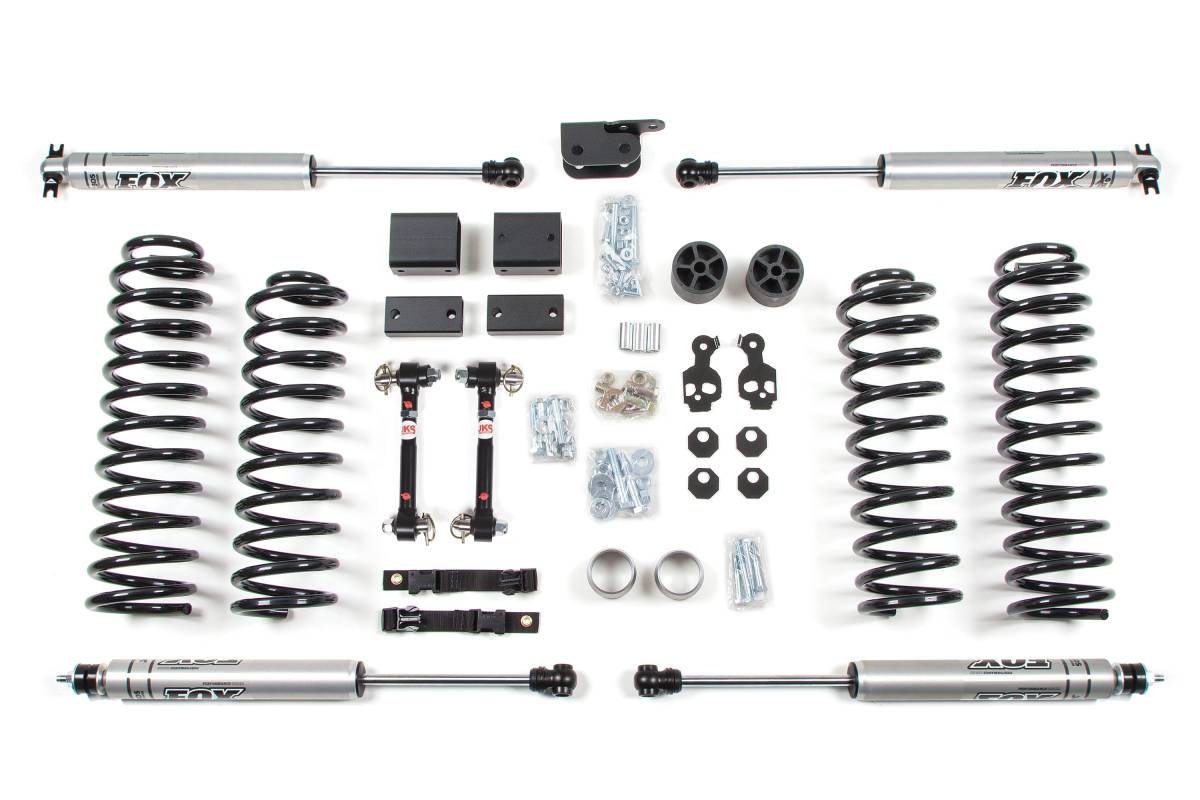

BDS 3" Lift Kit With NX2 Shocks For 12-18 Jeep Wrangler JK 2 Door 4WD - Standard Or Rubicon

BDS 3" Lift Kit With NX2 Shocks For 2012-2018 Jeep Wrangler JK 2 Door 4WD - Standard Or Rubicon

Specifically intended for 2012-17 models, this system includes an exhaust extension kit that maximizes allowable wheel travel with the factory front driveshaft. This kit comes with 3" Pro-Ride Coil Springs capable of full coil bind and 2" bump stop extensions to control the compression travel, but increase wheel travel. Brake line relocation brackets are supplied to handle the added wheel travel. Many companies don't include anything to correct your alignment, but BDS includes octo cam washers for the front lower control arms to fine tune the caster angle. Fixed swaybar links are included for Rubicon models with the factory disconnect system, for non-Rubicon models choose between BDS Ultimate Sway Bar Disconnects or JKS Quicker Disconnects. In the rear, sway bar drop brackets are included instead of longer sway bar links to allow the use of a factory wheel and larger tire. To correct the rear axle shift from the lift, a rear frame mounted track bar relocation bracket is included.

NX2 Series Shocks:

• BDS NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen charged, twin tube design with 10-stage velocity sensitive valving for lightning fast dampening and superior control.

Tire & Wheel Combinations:

• 35" x 12.50" w/16 x 8 and 4-1/2" back spacing w/17, 18, 20 x 9 and 4.5" back spacing
• Trimming may be required

Notes:

• Estimated Installation Time: 6 hours
• Removing the OE spring isolators will result in a 1" lift if desired.
• 124408 rear track bar or 124308 rear track bar relocation is recommended if using factory wheels.
• This kit is FMVSS No.126 Compliant: The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers. Aftermarket products must meet these standards as well.
• Pictures May vary from actual product. Please use description for accurate content.

• All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty". If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
