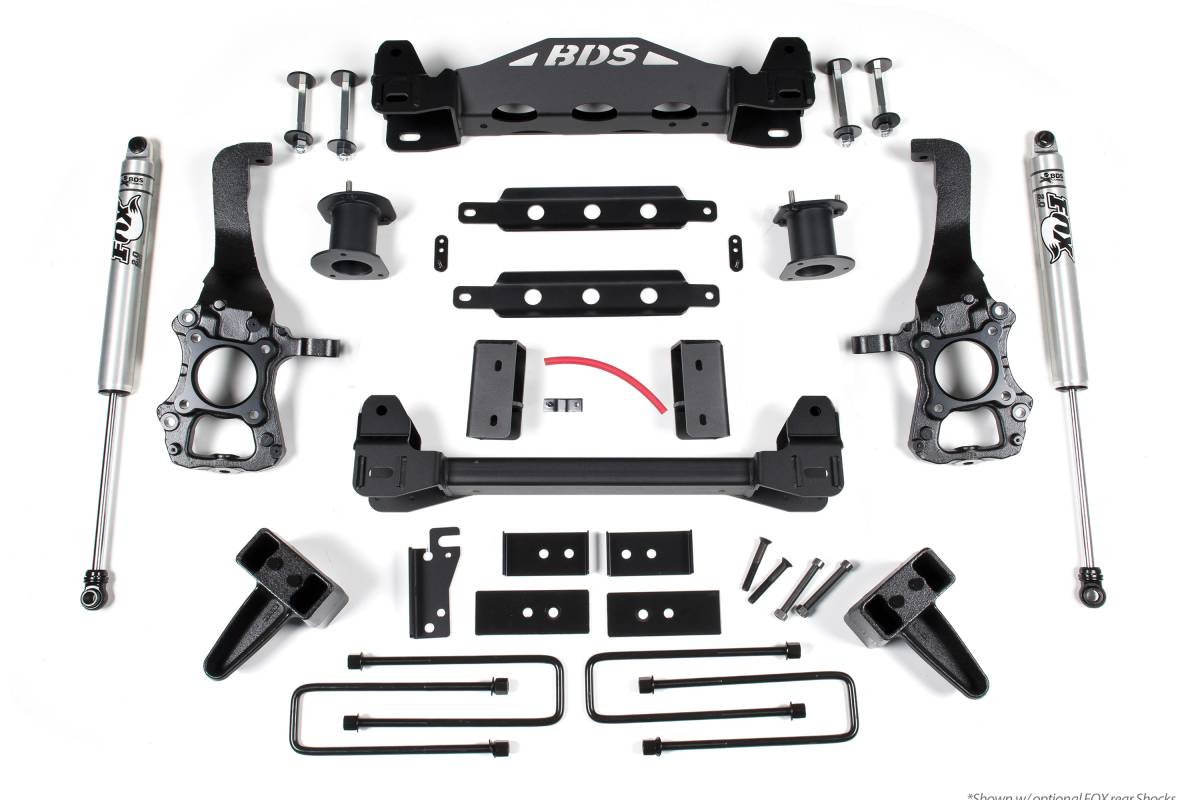

Image of BDS 6" Lift Kit With 4" Rear Lift Block & Fox 2.0 Series Shocks For 15-20 Ford F-150 2WD
Image of BDS 6" Lift Kit With 4" Rear Lift Block & Fox 2.0 Series Shocks For 15-20 Ford F-150 2WD

BDS 6" Lift Kit With 4" Rear Lift Block & Fox 2.0 Series Shocks For 15-20 Ford F-150 2WD

SKU: 013429/023605/023634/023635/023644/(2) 98224760

SELECT FITMENT

See If This Product Fits Your Vehicle

$2,241.45
$2,241.45
$2,578.00

Free Shipping

Free ground shipping on all orders over $100

BDS 6" LIft Kit With 4" Rear Lift Block & Fox 2.0 Series Shocks For 2015-2020 Ford F-150 2WD



This high clearance IFS system is engineered to the highest standard, using quality materials built right here in the USA. The kit offers a smooth ride and reliable on-road handling coupled with impressive off-road performance and clearance for larger tires. Utilizing a pair of one-piece laser cut 1/4" steel crossmembers as the foundation, this system also features CNC-machined ductile iron steering knuckles, crossmember support braces, sway bar relocation brackets, new alignment cam bolts and upper strut mount spacers to retain the OE ride quality and correct the suspension geometry.



In the rear an offset pin lift block and u-bolt kit is used in place of the factory block to recenter the axle within the wheelwell and level the stance. Rear brake line extensions and rear FOX 2.0 performance gas shocks round out these kits.



This 6" system is certified compliant with the National Highway Traffic Safety Administration's (NHTSA) FMVSS No.126 standards to not adversely effect the factory installed Electronic Stability Control (ESC) Systems installed on the 2WD Ford F150. Along with FMVSS No.126 compliance, all BDS kits include the Factory Protection Plus Program offering peace of mind on road or on the trail. All kits include BDS's No Fine Print Warranty and a 5 year - 60,000 mile PLUS drivetrain warranty for the best lifted suspension protection coverage on the market.



Qty Part# Description
1 023605 2014-15 F150 6in Spacer Box Kit
1 023634 2015 F150 Knuckle Box Kit - DS
1 023635 2015 F150 Knuckle Box Kit - PS
1 023644 2015-16 F150 2wd Box Kit
2 98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
1 013429 09-14 F150 4" Rear Block



Tire & Wheel Combinations:

  • 37" x 12.50" w/18 x 9 and 5" back spacing
  • 35" x 12.50" w/18 x 9 and 5 - 5.5" back spacing
  • 37 x 12.50 w/20 x 9 and 5 - 5.5" back spacing
  • Trimming may be required



Fox 2.0 Series Shocks:

  • Fox 2.0 performance series shocks have been tuned and tested by both Fox and BDS Suspension to maximize performance specific to each application and to every BDS Suspension system. The basic shock design is based on proven Fox Racing Shox race products, but re-designed to maximize the ride quality, handling, and control of your BDS equipped truck or jeep, whether on or off the road.



Notes:

  • 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
  • 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  • Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122405
  • This system WILL WORK on Diesel Models.
  • The 4" blocks will net a level/tail LOW stance. The 5" blocks will net a level/tail HIGH stance.
  • This kit is FMVSS No.126 Compliant
  • Estimated installation time is 8-10 hours



Product Specs

SKU:
013429/023605/023634/023635/023644/(2) 98224760
Brand:
BDS Suspension

Installation Details

Installation Instructions: Download
