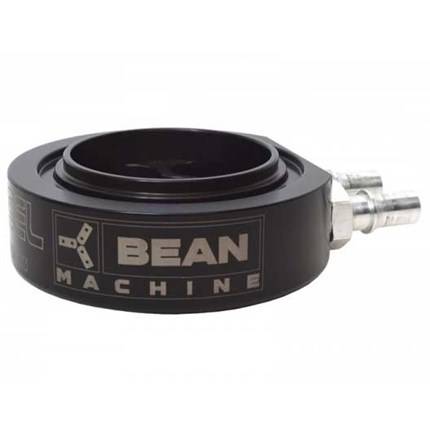

Bean Machine Multi Function Fuel Tank Sump
SKU:
280002
SELECT FITMENT
See If This Product Fits Your Vehicle
- $157.45
- $157.45
$221.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
New and Improved Multi-Function Fuel Sump Design
The Beans Diesel Bean Machine Multi-Function Fuel Sump takes the proven single-hole sump design to the next level. Constructed from billet 6061 aluminum, this heavy-duty sump provides improved fuel delivery, simple installation, and versatile plumbing options for a wide range of aftermarket fuel systems.
Installation requires only a single 3" hole and one mounting bolt, eliminating the need to remove the fuel tank while minimizing potential leak points.
Multiple Configuration Options
- Supply and return configuration
- Single outlet operation
- Dual outlet setup for high-horsepower applications
Benefits
- Eliminates common quarter-tank fuel starvation issues
- Provides access to nearly all available fuel in the tank
- Reduces fuel pump strain and operating noise
- No tank removal required during installation
- Improves fuel flow for high-output lift pump systems
- Compatible with many aftermarket fuel systems, including FASS and AirDog
Features
- Billet 6061 aluminum construction
- Original single-hole sump design
- Single-bolt installation for reduced leak potential
- Requires only one 3" hole in the fuel tank
- Integrated sediment bowl helps reduce debris pickup
- Exclusive O-ring sealing design for leak-free operation
- Uses ORB fittings instead of pipe-thread fittings
- High-flow quick-disconnect and push-lock compatible fittings
- Stainless steel drain plug for future servicing
- Inner ring design eliminates the need to drop the tank
- Compatible with metal and plastic fuel tanks
- Works with gasoline and diesel applications
- Requires a minimum 4" flat mounting area
- Designed and manufactured in Woodbury, Tennessee, USA
Installation Advantages
Unlike traditional draw-straw systems, the Bean Machine Fuel Sump draws fuel directly from the bottom of the tank. This helps reduce restrictions, lower fuel pump noise, and prevent low-fuel starvation issues commonly experienced with top-mounted pickup systems.
The single-hole design also eliminates the need to lower the fuel tank, reducing installation time and simplifying aftermarket fuel system upgrades.
Kit Includes
- Sump body
- Sump "Pacman" in-tank backer ring
- 3" hole saw
- Stainless steel mounting bolt
- Sealing washer
- O-ring
- (2) -8 ORB to 1/2" QDC/push-lock fittings with O-rings
- (1) -8 ORB plug for single-outlet operation
- 1/4" NPT stainless steel drain plug fitting
Built for Real-World Durability
The Bean Machine Fuel Sump has been tested in demanding conditions including towing, off-road use, and severe-duty environments. Its billet construction and proven sealing design deliver reliable performance in both daily-driven and high-performance applications.
Watch the durability torture test:
Beans Diesel Sump Torture Test Video
Watch the bubble demonstration video:
Multi-Function Sump Bubble Test Video
Product Specs
SKU:
280002
Brand:
Beans Diesel
