Bilstein 3.5in Front Lift w/ Upper Control Arm For 19-25 GM Silverado/Sierra 1500

Upgrade your truck or SUV’s suspension with Bilstein B8 Control Arms, a direct-fit replacement designed for lifted vehicles. Made from black powder-coated 4130 chromoly steel with a tubular design, they correct caster alignment, increase wheel travel, and reduce joint stress. Featuring greasable polyurethane bushings and heavy-duty ball joints, these durable arms come with all hardware needed for easy installation.

Combine with the Bilstein B8 6112 Leveling Kit for up to 3.5 inches of front lift, including 60mm monotube shocks and cold wound coil springs with billet aluminum spring seats. Adjustable snap-ring grooves let you fine-tune ride height, while the digressive piston design delivers precise damping on and off road. This kit improves handling, ground clearance, and maintains OEM ride comfort for daily and off-road use.

Features:

• Up to 3.5" adjustable front-end ride height
• Direct-fit upgrade for factory upper control arms
• 4130 chromoly tubular arms for max shock clearance
• Corrects caster for lifted suspension alignment
• Boosts wheel travel and reduces joint stress
• Greasable polyurethane bushings for low maintenance
• Heavy-duty 60mm monotube shocks for max control
• Cold wound coil springs with billet aluminum seats

Specifications:

    Front Upper Control Arms:

• Series: B8 Control Arms
• Arm Material: 4130 Chromoly Tubing
• Arm Design: Tubular
• Arm Outer Pivot Type: Greasable Sealed Ball Joint
• Arm Inner Pivot Type: Greasable Black Urethane Bushings
• Finish: Powder-Coated Black
• Segment: Light Truck

    Front Leveling Kit:

• Body Diameter (ID): 60mm
• Front Lift: 0-3.5in Lift
• Adjustable: Yes
• Reservoir: No
• Finish: Zinc Plated/Springs: Black
• Series: B8 6112
• Internal Design: Monotube
• Body Design: Snap Ring Grooved Body (Coilover)
• Boot Included: No
• Spring Seat Included: Yes
• Segment: Light Truck
• PartType: Suspension Kit

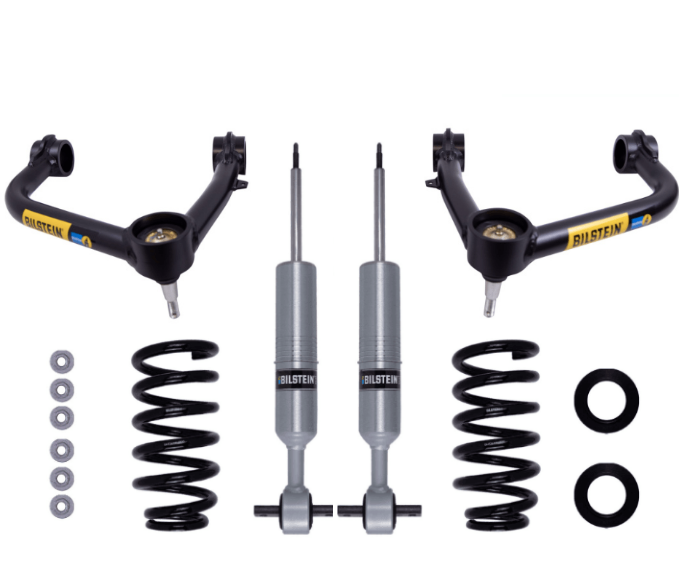

Included:

• (2) 60mm shock absorbers
• (2) Cold Wound Coil Springs
• (2) Billet Aluminum Spring Seats
• (1) Mounting Hardware Kit
• (2) Front Upper Control Arms
• (8) Bushings
• (4) Sleeves
• (2) Grease Packets
• (4) Washers
• (4) Zerk Fittings
• (2) Brake Line Clamps
• (2) Button Head Screws
• (2) Nyloc Nuts
• (2) Castle Nuts
• (2) Cotter Pins

Fitment:

• 2019-2025 Chevrolet Silverado 1500 5.3L/6.2L
• 2019-2025 GMC Sierra 1500 5.3L/6.2L

Notes:

• Limited Lifetime Warranty
• Does not fit TrailBoss/ AT4 Trim Models
• Does not fit vehicles with Active Ride Control Suspension
• Actual ride height may vary with mods & vehicle setup
