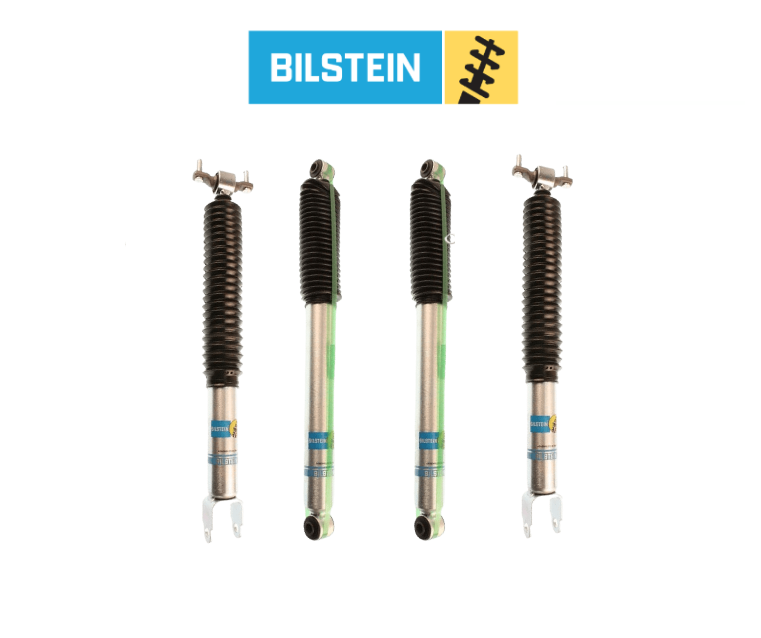

Bilstein 5100 Adjustable Height Shocks w/ 4-6" Lift For 11-22 GM 2500HD/3500HD

This Bilstein 5100 Series 24-218023 / 24-218030 Shock Absorber is custom valved for the GMC Sierra 2500HD / 3500HD. Featuring a corrosion resistant zinc plated finish with a clear coating for increased protection. The mono-tube gas pressurized design keeps your vehicle handling at its peak at all times by eliminating shock fading common in hydraulic shocks.

Bilstein 5100 Series shocks are perfect for trucks and SUVs that have been lifted. The extra demands larger tires and a taller stance require more suspension performance. Bilstein's patented digressive valving is perfect for these conditions.

Features:

• Zinc plated finish with clear coating

• Fits models with 4 to 6 inches of front lift, 3 to 4 inches in the rear

• Specifically designed and manufactured for lifted pickups and SUVs

• Monotube design for cooler, more efficient operation and longer life

• 46mm piston diameter provides superior handling and performance

• Patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control on or off-road

• Split compression and rebound valving tuned for each specific application

Specifications:

Front Shocks

• Adjustable Damping: Non-Adjustable

• Body Design: Smooth Body (Non-Coilover)

• Body Diameter (ID): 46mm

• Boot Included: Black Bellows

• Collapsed Length (IN): 15.98

• Collapsed Length (MM): 406.0

• Extended Length (IN): 24.23

• Extended Length (MM): 615.5

• Finish: Zinc Plated

• Internal Design: Monotube

• Lower Mount Type: Clevis

• Reservoir: No

• Spring Seat Included: No

• Upper Mount Type: Bar Pin

Rear Shocks

• Adjustable Damping: Non-Adjustable

• Body Design: Smooth Body (Non-Coilover)

• Body Diameter (ID): 46mm

• Boot Included: Black Bellows

• Collapsed Length (IN): 18.17
• Collapsed Length (MM): 461.5

• Extended Length (IN): 29.92

• Extended Length (MM): 760.0

• Finish: Zinc Plated

• Internal Design: Monotube

• Lower Mount Type: Eye 14.4mm

• Reservoir: No

• Spring Seat Included: No

• Upper Mount Type: Eye 14.4mm

Fitment:

• 2011-2022 Chevrolet Silverado 2500HD 6.6L

• 2011-2022 Chevrolet Silverado 3500HD 6.6L

• 2011-2022 GMC Sierra 2500HD 6.6L

• 2011-2022 GMC Sierra 3500HD 6.6L

Included:

• (2) Front Bilstein B8 5100 Height Adjustable Shocks

• (2) Rear Bilstein B8 5100 Non-Adjustable Shocks

Note:

• Limited Lifetime Warranty
• Fits vehicles with 4-6inches of front suspension lift
• 3-4 inches of rear suspension lift

• Stock mounting points only

• Not compatible with lower control arm torsion bar relocation bracket
