Bilstein 5100 Adjustable Shocks w/ 0-2.7'' Lift For 00-06 Toyota Tundra 2WD/4WD

SKU: (2) 24-261425 | (2) 24-100144

SELECT FITMENT

See If This Product Fits Your Vehicle

$544.00
$544.00

Free Shipping

Free ground shipping on all orders over $100

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers designed for the Toyota Tundra 4wd feature multiple snap-ring grooves in the body allows for different spring seat positions, providing 0-2.7 inches of front lift with OE springs (depending on application & cab). These monotube shock absorbers have a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein 5100 shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 shock absorber is the easiest way to level out your vehicle.

Bilstein 5100 Series shocks are perfect for trucks and suvs that have been lifted. The extra demands larger tires and a taller stance require more suspension performance. Bilstein's patented digressive valving is perfect for these conditions.

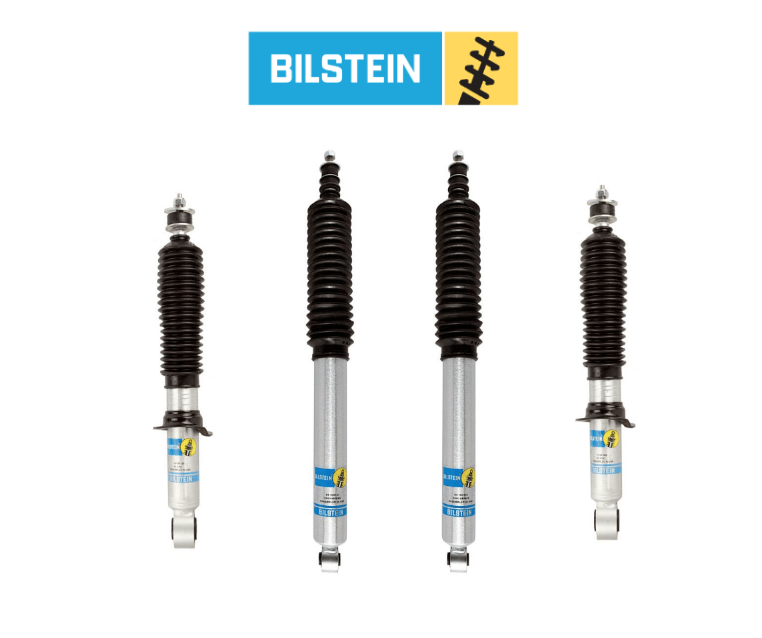

This package includes both front and rear shocks (rear are non-adjustable) for a complete set of 4.

Features:

  • Adjustable Lift Height, Multiple Positions
  • Great Solution to Level Vehicle
  • Front shocks adjust from 0-2.7 inches
  • Rear shocks fit with 0-1 inches of lift
  • High Pressure Mono-Tube Design
  • Replaces Factory Struts, Keeps Coil Springs
  • Zinc Plated Finish with Clear Coat for Maximum Protection
  • Complete set of 4 matching shocks

Specifications:

Front Shocks

  • Adjustable Damping: Non-Adjustable
  • Body Design: Snap Ring Grooved Body (Coilover)
  • Body Diameter (ID): 46mm
  • Boot Included: Black Bellows
  • Collapsed Length (IN): 13.23
  • Collapsed Length (MM): 336.0
  • Extended Length (IN): 18.35
  • Extended Length (MM): 466.0
  • Finish: Zinc Plated
  • Internal Design: Monotube
  • Lower Mount Type: Eye 14.4mm
  • Reservoir: No
  • Spring Seat Included: Yes
  • Upper Mount Type: Stem

Rear Shocks

  • Adjustable Damping: Non-Adjustable
  • Body Design: Smooth Body (Non-Coilover)
  • Body Diameter (ID): 46mm
  • Boot Included: Black Bellows
  • Collapsed Length (IN): 13.84
  • Collapsed Length (MM): 351.5
  • Extended Length (IN): 22.40
  • Extended Length (MM): 569.0
  • Finish: Zinc Plated
  • Internal Design: Monotube
  • Lower Mount Type: Eye 12mm
  • Reservoir: No
  • Spring Seat Included: No
  • Upper Mount Type: Stem

Fitment:

  • 2000-2006 Toyota Tundra 2WD/4WD

Included:

  • (2) Front Bilstein B8 5100 Height Adjustable Shocks
  • (2) Rear Bilstein B8 5100 Non-Adjustable Shocks

Note:

  • Limited Lifetime Warranty

Product Specs

SKU:
(2) 24-261425 | (2) 24-100144
Brand:
Bilstein
