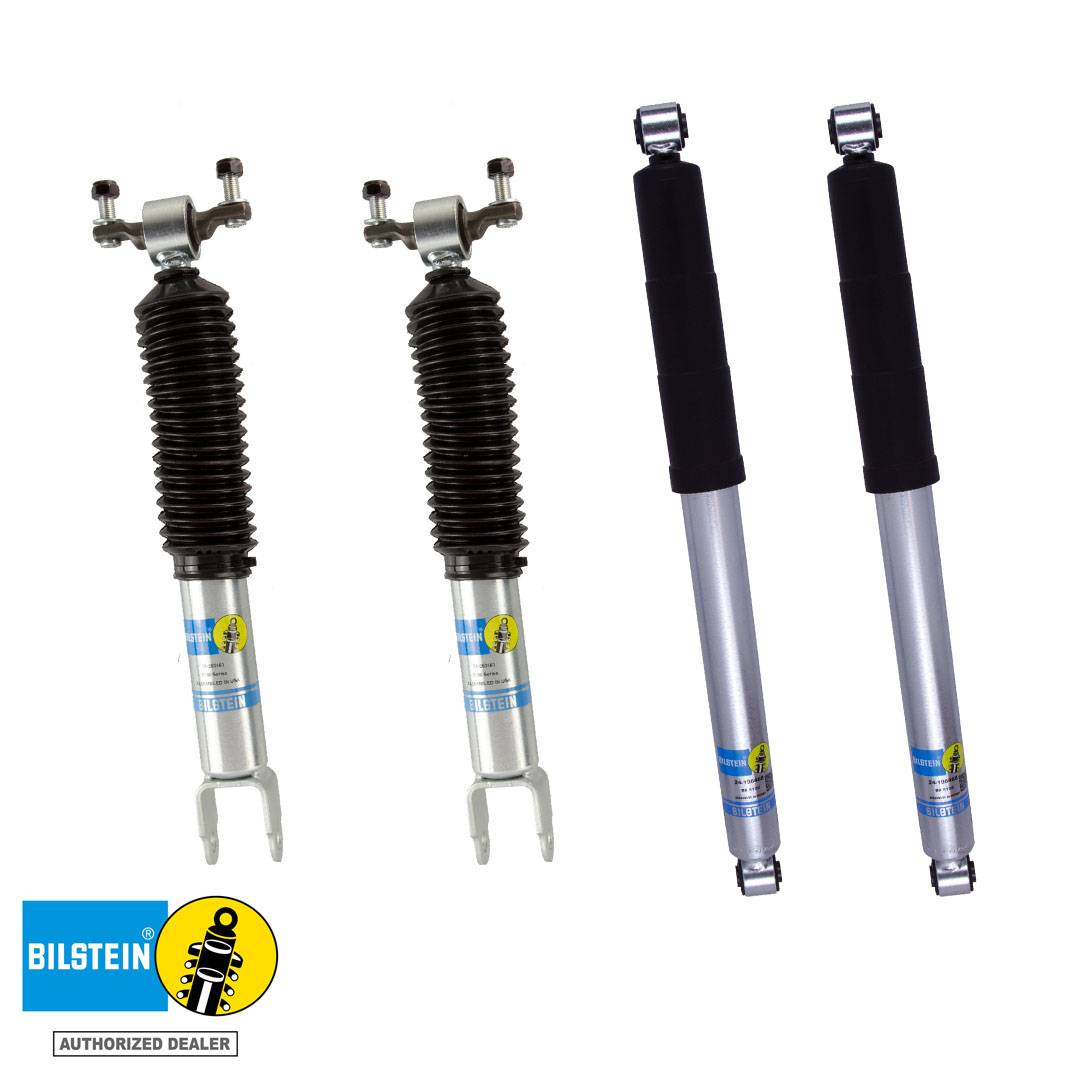

Bilstein 5100 B8 Shock Set For 2011-2026 Silverado Sierra 2500HD/3500HD
SKU:
(2) 24-253161, (2) 24-196468
- $492.00
- $492.00
$0.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Several In Stock
This set of 4 Bilstein B8 5100 Series Shock Absorbers is custom valved for the 2011–2026 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD. These shocks feature a corrosion-resistant zinc-plated finish with a clear coating for increased protection. The monotube gas-pressure design helps maintain consistent vehicle handling by reducing shock fade.
Bilstein 5100 Series shocks are designed for trucks and SUVs with stock or lifted suspension configurations. Larger tires, increased ride height, towing, and demanding driving conditions require greater suspension performance. Bilstein's patented digressive valving reacts to changing road conditions to provide improved comfort, control, and handling on or off the road.
Features:
- Zinc-plated finish with protective clear coating
- Set of 4 shocks—includes front and rear
- Front shocks fit trucks with 0 to 1.5 inches of front lift
- Rear shocks fit trucks with 0 to 1 inch of rear lift
- Designed for stock-height and moderately lifted pickups and SUVs
- Monotube design provides cooler, more efficient operation and longer service life
- 46mm piston diameter provides improved handling and performance
- Patented digressive valving reacts to changing surface conditions
- Application-specific compression and rebound valving
- Gas-pressure construction provides consistent, fade-resistant performance
- Direct bolt-on installation with no drilling required
Specifications:
Front Shocks
- Manufacturer Part Number: 24-253161
- Position: Front
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter (ID): 46mm
- Boot Included: Black Bellows
- Collapsed Length: 14.06 in. / 357.0mm
- Extended Length: 18.43 in. / 468.0mm
- Finish: Zinc Plated
- Internal Design: Monotube
- Reservoir: No
- Spring Seat Included: No
- Upper Mount Type: Stem
- Front Lift Height: 0 to 1.5 Inches
Rear Shocks
- Manufacturer Part Number: 24-196468
- Position: Rear
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter (ID): 46mm
- Boot Included: Black Bellows
- Collapsed Length: 16.42 in. / 417.0mm
- Extended Length: 26.79 in. / 680.5mm
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: Eye
- Reservoir: No
- Spring Seat Included: No
- Upper Mount Type: Eye
- Rear Lift Height: 0 to 1 Inch
Fitment:
- 2011–2026 Chevrolet Silverado 2500HD 2WD/4WD
- 2011–2026 Chevrolet Silverado 3500HD 2WD/4WD
- 2011–2026 GMC Sierra 2500HD 2WD/4WD
- 2011–2026 GMC Sierra 3500HD 2WD/4WD
Included:
- (2) Front Bilstein B8 5100 Shocks—24-253161
- (2) Rear Bilstein B8 5100 Shocks—24-196468
Note:
- Limited Lifetime Warranty
- These shocks do not lift or level the vehicle by themselves
- Verify suspension lift height and shock mounting measurements before ordering
