Bilstein 5100 Series Front & Rear Shock Kit For 1986-1995 Toyota 4Runner/Pickup with 3-4 Inch Lift
SKU:
(2) 24-185745 | (2) 24-185752
SELECT FITMENT
See If This Product Fits Your Vehicle
- $492.00
- $492.00
$0.00- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Give your lifted 1986–1995 Toyota 4Runner or Pickup the ride control it deserves with the Bilstein 5100 Series Front & Rear Shock Kit. Engineered for vehicles running a 3–4" suspension lift, this kit delivers outstanding damping performance, improved stability, and smoother ride quality on and off the trail. Bilstein’s monotube technology ensures consistent fade-free performance in all driving conditions.
Each shock is tuned specifically for lifted applications and built with a zinc-plated body for superior corrosion resistance. The 46mm digressive piston design reacts instantly to changing terrain, offering better control, reduced body roll, and enhanced comfort. Whether daily driving, hauling, or off-roading, the Bilstein 5100 Series provides a durable and dependable upgrade for your classic Toyota truck.
Features:
- Monotube gas design provides consistent, fade-free damping on all terrains
- Vehicle-specific tuning optimized for 3–4" lifted 4Runner and Pickup trucks
- Multi-layer zinc finish offers industry-leading corrosion protection
- 46mm digressive piston reacts quickly for improved ride control quality
- Direct bolt-on installation requires no cutting or major modifications
- Self-adjusting deflective discs balance rebound and compression forces
- Durable construction supports daily driving, towing, and off-road use
- Lifetime warranty ensures long-term reliability and peace of mind
- Brand: Bilstein
- Series: 5100 Series
- Design: 46mm monotube gas pressure
- Front Mounts: Upper stem, lower eye 16mm
- Rear Mounts: Upper eye 19mm, lower eye 19mm
- Finish: Zinc-plated shock bodies
- Damping: Non-adjustable digressive valving
- Front Travel: 6.280 inches
- Rear Travel: 9.630 inches
- Lift Height Compatibility: 3–4 inch suspension lifts
(Front Shocks):
- Internal Design: Monotube
- Lower Mount Type :Eye 16mm
- Upper Mount Type: Stem
- Body Design: Smooth Body (Non-Coilover)
- Finish: Zinc Plated
- Reservoir: No
- Collapsed Length (IN): 11.67
- Collapsed Length (MM): 296.5
- Extended Length (IN): 17.95
- Extended Length (MM): 456.0
- Extended Length (MM): 456
- Body Diameter (ID): 46mm
- Position: Front
- Body Inside Diameter: 46mm
- Collapsed Length: 296.5mm
- Extended Length :456mm
- Shock Stroke: 6.280 in.
- Adjustable Damping: Non-Adjustable
- Internal Design: Monotube
- Lower Mount Type: Eye 19mm
- Upper Mount Type: Eye 19mm
- Body Design: Smooth Body (Non-Coilover)
- Finish: Zinc Plated
- Reservoir: No
- Collapsed Length (IN): 16.00
- Collapsed Length (MM): 406.5
- Extended Length (IN): 25.63
- Extended Length (MM): 651.0
- Collapsed Length (IN): 16
- Extended Length (MM): 651
- Lower Mount Type: Eye 16mm
- Upper Mount Type: Eye 16mm
- Body Diameter (ID): 46mm
- Position: Rear
- Body Inside Diameter: 46mm
- Collapsed Length: 406.5mm
- Extended Length: 651mm
- Shock Stroke: 9.630 in.
- Adjustable Damping: Non-Adjustable
- 1986-1995 Toyota 4Runner/Pickup with 3–4" Lift
Included:

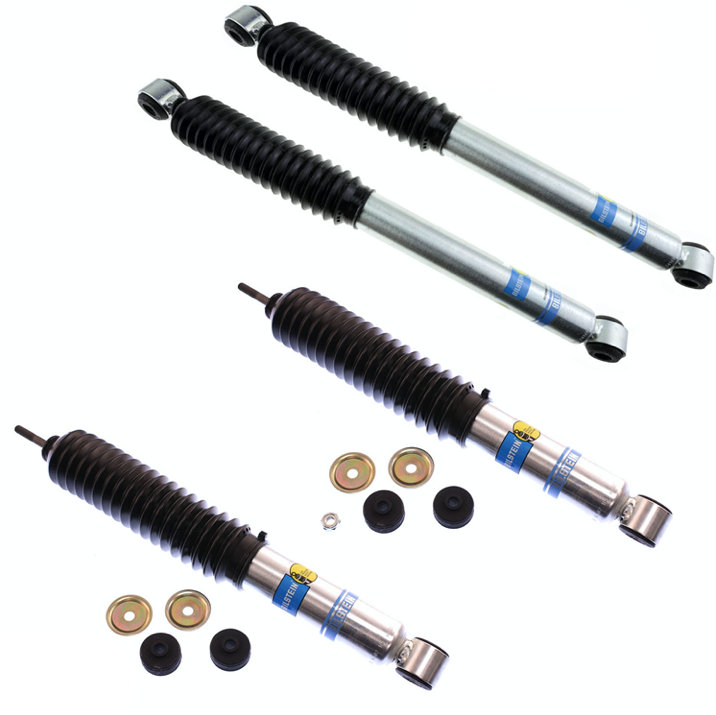

- (2) Bilstein 5100 Front Shocks
- (2) Bilstein 5100 Rear Shocks
- (1) Hardware Pack
Note:
- Direct Replacement
Product Specs
SKU:
(2) 24-185745 | (2) 24-185752
Brand:
Bilstein
