Bilstein 5100 Monotube Shocks Set w/ 4" Lift For 17-24 Ford F-250 F-350 4WD

SKU: (2) 24-285285 | (2) 33-306254

SELECT FITMENT

See If This Product Fits Your Vehicle

$492.00
$492.00
$0.00

Free Shipping

Free ground shipping on all orders over $99
Description

This Bilstein 5100 Series 24-285285 / 33-306254 Shock Absorber is custom valved for the 2017-2024 Ford F-250 & F-350. Featuring a corrosion resistant zinc plated finish with a clear coating for increased protection. The mono-tube gas pressurized design keeps your vehicle handling at its peak at all times by eliminating shock fading common in hydraulic shocks.

Bilstein 5100 Series shocks are perfect for trucks and suvs that have been lifted. The extra demands larger tires and a taller stance require more suspension performance. Bilstein's patented digressive valving is perfect for these conditions.

Features:

  • Zinc plated finish with clear coating
  • Specifically designed and manufactured for lifted pickups and SUVs
  • Monotube design for cooler, more efficient operation and longer life
  • 46mm piston diameter provides superior handling and performance
  • Patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control on or off-road
  • Split compression and rebound valving tuned for each specific application

Specifications:

 Front Shocks

  • Adjustable Damping: Non-Adjustable
  • Body Design: Smooth Body (Non-coilover)
  • Body Diameter (ID): 46mm
  • Boot Included: Black Bellows
  • Collapsed Length (IN): 16.85
  • Collapsed Length (MM): 428.0
  • Extended Length (IN): 25.75
  • Extended Length (MM): 654.0
  • Finish: Zinc Plated
  • Internal Design: Monotube
  • Lower Mount Type: Eye 14.4mm
  • Reservoir: No
  • Spring Seat Included: No
  • Upper Mount Type: Stem

Rear Shocks

  • Adjustable Damping: Non-Adjustable
  • Body Design: Smooth Body (Non-coilover)
  • Body Diameter (ID): 46mm
  • Boot Included: Black Bellows
  • Collapsed Length (IN): 20.08
  • Collapsed Length (MM): 510.0
  • Extended Length (IN): 31.60
  • Extended Length (MM): 802.7
  • Finish: Zinc Plated
  • Internal Design: Monotube
  • Lower Mount Type: Eye 14.1mm
  • Reservoir: No
  • Spring Seat Included: No
  • Upper Mount Type: Eye 16mm

Fitment:

  • 2017-2024 Ford F-250 4WD
  • 2017-2024 Ford F-350 4WD

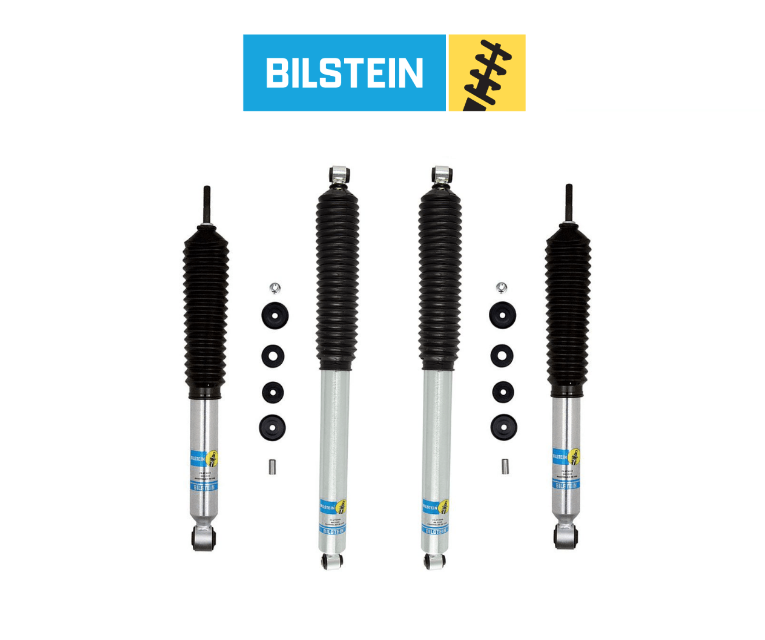

Included:

  • (2) Front Bilstein B8 5100 Height Adjustable Shocks
  • (2) Rear Bilstein B8 5100 Non-Adjustable Shocks

Note:

  • Limited Lifetime Warranty
  • Fits vehicles with 4 inches of front suspension lift and 1.5 to 3 inches of rear suspension lift
Fitment
Fitment

Product Specs

SKU:
(2) 24-285285 | (2) 33-306254
Brand:
Bilstein
