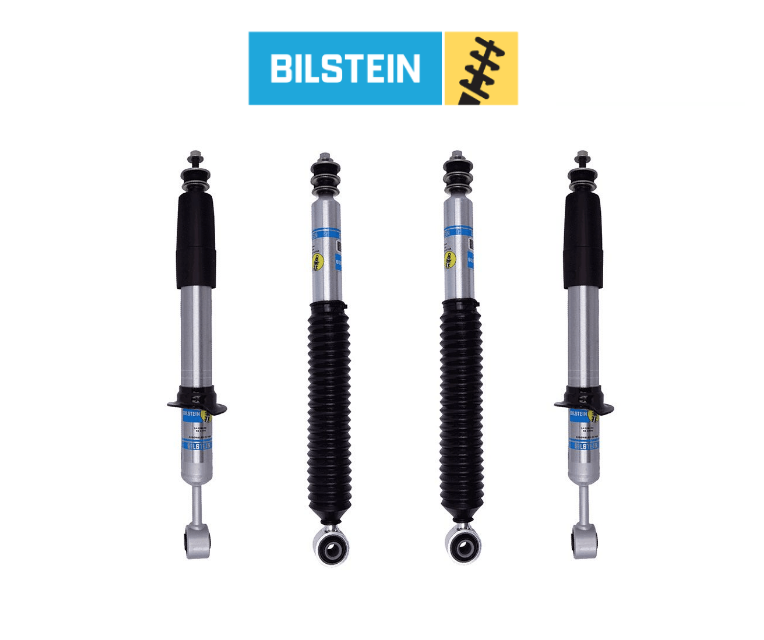

Bilstein 5100 Series Adjustable Shocks For 10-24 Toyota 4Runner/ FJ/Lexus GX460
SKU:
(2) 24-328258 | (2) 33-313146
SELECT FITMENT
See If This Product Fits Your Vehicle
- $598.00
- $598.00
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers designed for the Toyota 4Runner 4WD feature multiple snap-ring grooves in the body to allow for different spring seat positions, providing 0-2.5 inches of front lift with OE springs. These monotube shock absorbers have a 46mm digressive piston with a self-adjusting deflective disc valve setting. Bilstein 5100 shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 shock absorber is the easiest way to level out your vehicle.
Bilstein 5100 Series shocks are perfect for trucks and SUVs that have been lifted. The extra demands larger tires and a taller stance require more suspension performance. Bilstein's patented digressive valving is perfect for these conditions.
This package includes both front and rear shocks (rear are non-adjustable) for a complete set of 4.
Features:
- Adjustable Front Lift Height, Multiple Positions
- Great solution to level your vehicle (superior to coil/strut spacers found in many leveling kits)
- Improved off-road performance
- Front shocks adjust from .0 to 2.5 inches (4 positions)
- Rear shocks fit with 0 to 2 inches of lift
- Mono-Tube Gas Design
- Replaces Factory Struts, Keeps Coil Springs
- Zinc Plated Finish with Clear Coat for Maximum Protection
- Complete set of 4 matching shocks
Specifications:
Front Shocks
- Adjustable Damping: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Body Diameter (ID): 46mm
- Boot Included: Black Straight
- Collapsed Length (IN): 17.50
- Collapsed Length (MM): 444.6
- Extended Length (IN): 22.31
- Extended Length (MM): 566.8
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: Eye 14.2mm
- Reservoir: No
- Spring Seat Included: Yes
- Upper Mount Type: Stem
Rear Shocks
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-coilover)
- Body Diameter (ID): 46mm
- Boot Included: Black Bellows
- Collapsed Length (IN): 14.91
- Collapsed Length (MM): 378.8
- Extended Length (IN): 23.03
- Extended Length (MM): 585.0
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: Eye 19.3mm
- Reservoir: No
- Spring Seat Included: No
- Upper Mount Type: Stem
Fitment:
- 2010-2023 For Lexus GX460
- 2010-2023 For Toyota 4Runner - 2WD/4WD
- 2010-2014 For Toyota FJ Cruiser - 2WD/4WD
Included:
- (2) Front Bilstein B8 5100 Height Adjustable Shocks
- (2) Rear Bilstein B8 5100 Non-Adjustable Shocks
Note:
- Limited Lifetime Warranty
- Excludes models with X-Reas
- Select Lexus GX460 models require Rear Coil Spring Conversion
Product Specs
SKU:
(2) 24-328258 | (2) 33-313146
Brand:
Bilstein
