Bilstein 5112 Leveling Lift Kit Front 0-2in Rear 0-1in For 05-16 Ford F-250 SD 4WD

The Bilstein B8 5112 Suspension Kit is a high-performance front and rear leveling solution for 2010–2016 Ford F-250 4WD trucks. It includes two front Bilstein B8 5100 shocks paired with two matched coil springs to deliver up to 2" of front lift. The rear features two Bilstein B8 5100 shocks that provide up to 1" of lift, improving stance, wheel travel, and tire clearance. This bolt-on kit requires no modifications and delivers enhanced ride comfort, control, and stability both on and off-road.

Features:

• Front 5100 shocks with coil springs lift up to 2"
• Rear 5100 shocks provide 0–1" of rear lift
• Levels truck for a more aggressive stance
• Supports larger wheels and off-road tires
• Digressive valving for comfort and control
• Zinc-plated shocks resist rust and corrosion
• Tuned for 2010–2016 Ford F-250 4WD trucks

Specifications:

       Front Shocks/Coil Springs:

• Series: B8 5112
• Internal Design: Monotube
• Collapsed Length: 13.59 in
• Extended Length: 21.42 in
• Body Diameter (ID): 46mm
• Boot Included: Black Bellows
• Position: Front
• Body Inside Diameter: 46mm
• Reservoir Included: No
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No

       Rear Shocks:

• Extended Length (IN): 29.7 Inch
• Compressed Length (IN): 18.04 Inch
• Rod Diameter (IN): 1.81 Inch
• Body Diameter (ID): 46mm
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Damping: Non-Adjustable

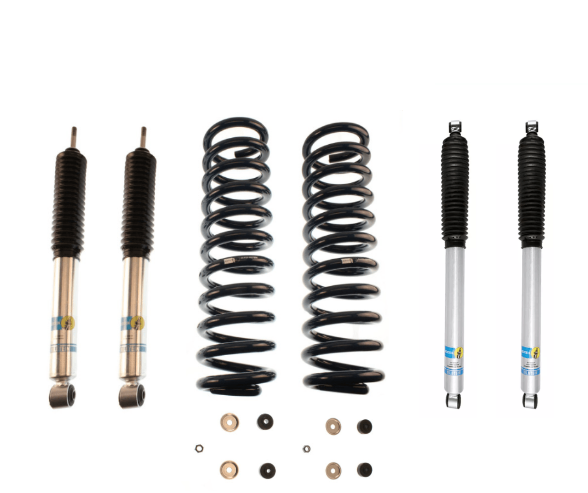

Included:

• (2) Front B8 5112 Shocks
• (2) B8 5112 Front Springs
• (2) Rear B8 5100 Shocks

Fitment:

• 2005-2016 Ford F-250 Super Duty 4WD

Notes:

• Limited Lifetime Warranty
• Adjustable track bar recommended
• Final ride height can vary depending on suspension mods & setup
