Bilstein 5160 Series Shocks RR w/4-6" Lift For 11-24 GM 2500HD/3500HD LML L5P
Bilstein 5160 Series Shocks RR w/4-6" Lift For 11-24 GM 2500HD/3500HD LML L5P
Bilstein 5160 Series Shocks RR w/4-6" Lift For 11-24 GM 2500HD/3500HD LML L5P
Bilstein 5160 Series Shocks RR w/4-6" Lift For 11-24 GM 2500HD/3500HD LML L5P
Bilstein

Bilstein 5160 Series Shocks RR w/4-6" Lift For 11-24 GM 2500HD/3500HD LML L5P

SKU: (2) 25-312027 | (2) 25-311846

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,196.00
$1,196.00
$0.00

Free Shipping

Free ground shipping on all orders over $99
Description

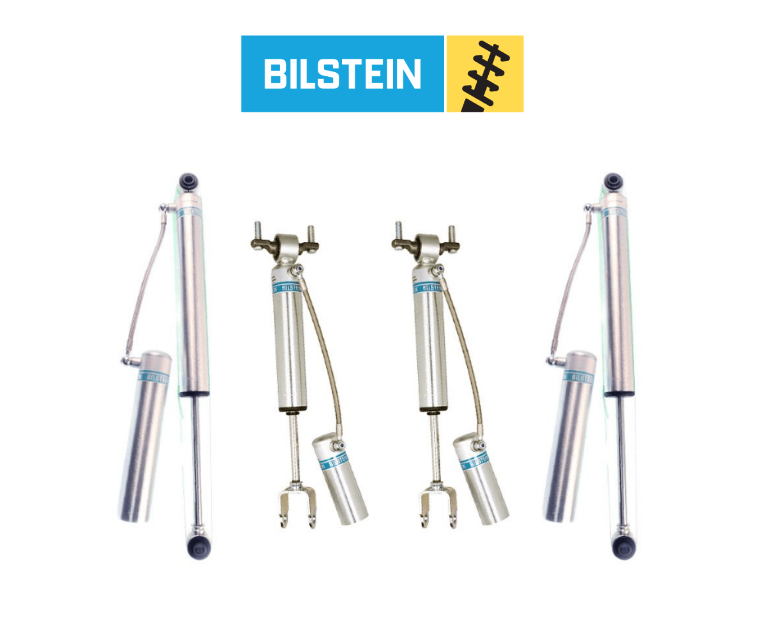

This Bilstein 5160 Series 25-312027 / 25-311846 Remote Reservoir Shock Absorbers are custom valved for the Chevy Silverado/ GMC Sierra 2500HD/3500HD. Feature a remote reservoir that dramatically increases shock oil capacity for even greater heat dissipation and damping sensitivity. A corrosion resistant zinc plated finish with a clear coating is used for increased protection. The mono-tube gas pressurized design keeps your vehicle handling at its peak at all times by eliminating shock fading common in hydraulic shocks.

Bilstein 5160 Series shocks are perfect for trucks and SUVs that have been lifted. The extra demands larger tires and a taller stance require more suspension performance. Bilstein's patented digressive valving is perfect for these conditions.

Features:

  • Zinc plated finish with clear coating
  • Fits models with 4 to 6" of front lift / 4" of rear lift
  • Set of Front and Rear Bilstein 5160 shocks
  • Remote reservoir for increased oil capacity
  • Specifically designed and manufactured for lifted pickups and SUVs
  • Monotube design for cooler, more efficient operation and longer life
  • 46mm piston diameter provides superior handling and performance
  • Patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control on or off-road
  • Split compression and rebound valving tuned for each specific application

Specifications:

 Front Shocks

  • Body Diameter: 46mm
  • Collapsed Length: 15.53"
  • Extended Length: 24.22"
  • Collapsed Length: 394.5mm
  • Extended Length: 615.2mm Finish: Zinc Plated
  • Reservoir: Yes
  • Billet Reservoir Clamp Included: No
  • Body Design: Smooth Body (Non-Coilover)

Rear Shocks

  • Reservoir: Yes
  • Finish: Zinc Plated
  • Body Diameter: 46mm
  • Collapsed Length: 18.14"
  • Extended Length: 31.28"
  • Collapsed Length: 460.8mm
  • Extended Length: 794.5mm
  • Billet Reservoir Clamp Included: Yes

Fitment:

  • 2011-2024 Chevrolet Silverado 2500HD 6.6L
  • 2011-2024 Chevrolet Silverado 3500HD 6.6L
  • 2011-2024 GMC Sierra 2500HD 6.6L
  • 2011-2024 GMC Sierra 3500HD 6.6L

Included:

  • (2) Front Bilstein 5160 Series Remote Reservoir Shock Absorbers
  • (2) Rear Bilstein 5160 Series Remote Reservoir Shock Absorbers

Note:

  • Limited Lifetime Warranty
  • Fits models with 4 to 6" of front lift / 4" of rear lift
Fitment
Fitment

Product Specs

SKU:
(2) 25-312027 | (2) 25-311846
Brand:
Bilstein
