Bilstein 6112/5100 Lift Kit 0-3in Frt/2in Rear For 10–23 Lexus GX460/FJ Cruiser

Upgrade your Lexus GX460 or Toyota FJ Cruiser with the Bilstein B8 6112/5100 Lift Kit, engineered for enhanced ground clearance, off-road capability, and on-road comfort. This complete suspension solution features Bilstein’s 6112 front coilover system with 60mm digressive shocks, custom cold-wound springs, and adjustable lift height up to 3 inches—perfect for heavy-duty bumpers or winches. In the rear, Bilstein B8 5100 monotube shocks provide controlled performance for 0–2 inches of lift. Whether you're tackling trails or daily driving, this kit ensures confident handling, added suspension travel, and long-term durability.

Features:

• Adjustable front lift from 0 to 3 inches for a leveled stance
• Rear 5100 shocks support up to 2 inches of lift travel
• Cold-wound front springs for reliable support and lift height
• Large 60mm piston improves off-road handling and damping
• Digressive valving adapts quickly to changing terrain
• Bolt-on installation; reuses factory top mounts and isolators
• Zinc-plated shock bodies for long-lasting corrosion resistance
• Perfect for larger tires, bumpers, and rugged trail use
• Adjustable front lift height up to 0.7-3" w/o KDSS; 1-3.5" w/ KDSS
• Large 60mm body for increased oil capacity, cooling, and long-term durability

Specifications:

    Front Shocks:

• Series: B8 6112
• Front Lift: 0-3in
• Body Design: Snap Ring Grooved Body (Coilover)
• Finish: Dampers: Zinc Plated / Springs: Black
• Title: Bilstein Shock Absorbers
• Reservoir: No
• Spring Seat Included: Yes
• Body Diameter (ID): 60mm
• Boot Included: No
• Internal Design: Monotube

   Rear Shocks:

• Series: B8 5100
• Rear Lift: 2in
• Collapsed Length (IN): 14.91
• Boot Included: Black Bellows
• Internal Design: Monotube
• Finish: Zinc Plated
• Lower Mount Type: Eye 19.3mm
• Extended Length (MM): 585.0
• Reservoir: No
• Extended Length (IN): 23.03
• Upper Mount Type: Stem
• Collapsed Length (MM): 378.8
• Body Design: Smooth Body (Non-coilover)
• Body Diameter (ID): 46mm

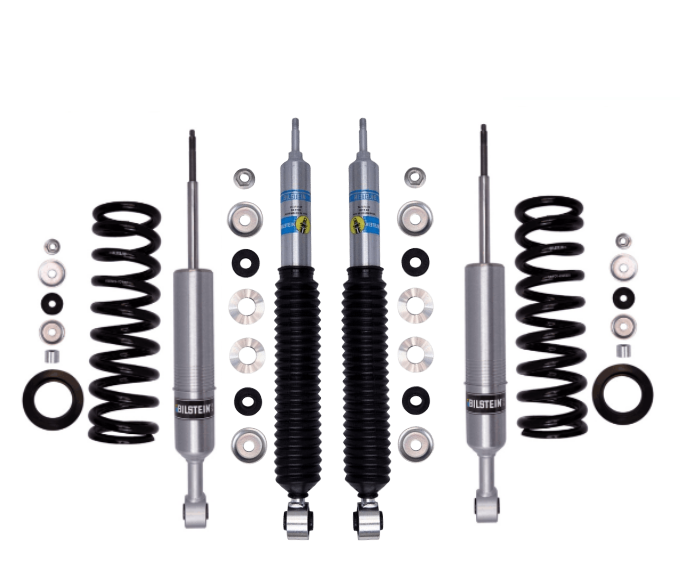

Included:

• (2) B8 6112 60mm Front Shocks
• (2) custom matched cold wound coil springs
• (2) billet aluminum spring seats
• (2) B8 5100 46mm Rear Shocks

Fitment:

• 2010–2023 Lexus GX460 4.6L V8
• 2007–2014 Toyota FJ Cruiser 4.0L V6

Notes:

• Limited Lifetime Warranty
• Adjustable spring seat offering - Front Lift Height Without KDSS: 0.7-3"; With KDSS: 1-3.5". Adjustable in increments.
• Ride heights indicated are typical. Actual ride height is influenced by which factory suspension the vehicle is equipped with and its condition; optional equipment and accessories on your vehicle, and other vehicle modifications such as replacement coil springs, wheel and tire combinations, etc.
