Bilstein B8 5100 Front & Rear Shocks For 94-13 Ram 2500 3500 w/ 0-2.5" Lift

SKU: (2) 24-185776 | (2) 24-191203

SELECT FITMENT

See If This Product Fits Your Vehicle

$448.00
$448.00

Free Shipping

Free ground shipping on all orders over $100

This set of 4 Bilstein 5100 Series Shock Absorbers are custom valved for the 1994-2001 Ram 1500 4WD, 1994-2013 Ram 2500 4WD, & 1994-2012 Ram 3500 4WD. Featuring a corrosion resistant zinc plated finish with a clear coating for increased protection. The mono-tube gas pressurized design keeps your vehicle handling at its peak at all times by eliminating shock fading common in hydraulic shocks.

Bilstein 5100 Series shocks are perfect for trucks and suvs that have been lifted. The extra demands larger tires and a taller stance require more suspension performance. Bilstein's patented digressive valving is perfect for these conditions.

Features:

  • Zinc plated finish with clear coating
  • Set of 4 Shocks - Includes Front and Rear
  • Front Shocks fit with 0 to 2.5 inches of front lift
  • Rear Shocks fit with 0 to 1 inches of rear lift
  • Specifically designed and manufactured for lifted pickups and SUVs
  • Monotube design for cooler, more efficient operation and longer life
  • 46mm piston diameter provides superior handling and performance
  • Patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control on or off-road
  • Split compression and rebound valving tuned for each specific application

Specifications:

Front Shocks

  • Adjustable Damping: Non-Adjustable
  • Body Design: Smooth Body (Non-Coilover)
  • Body Diameter (ID): 46mm
  • Boot Included: Black Bellows
  • Collapsed Length (IN): 14.88
  • Collapsed Length (MM): 378.0
  • Extended Length (IN): 24.37
  • Extended Length (MM): 619.0
  • Finish: Zinc Plated
  • Internal Design: Monotube
  • Lower Mount Type: Eye 14.1mm
  • Reservoir: No
  • Spring Seat Included: No
  • Upper Mount Type: Stem

Rear Shocks

  • Adjustable Damping: Non-Adjustable
  • Body Design: Smooth Body (Non-Coilover)
  • Body Diameter (ID): 46mm
  • Boot Included: Black Bellows
  • Collapsed Length (IN): 16.95
  • Collapsed Length (MM): 430.5
  • Extended Length (IN): 27.36
  • Extended Length (MM): 695.0
  • Finish: Zinc Plated
  • Internal Design: Monotube
  • Lower Mount Type: Eye 14.4mm
  • Reservoir: No
  • Spring Seat Included: No
  • Upper Mount Type: Eye 14.4mm

Fitment:

  • 1994-2001 Ram 1500 4WD
  • 1994-2013 Ram 2500 4WD
  • 1994-2012 Ram 3500 4WD

Included:

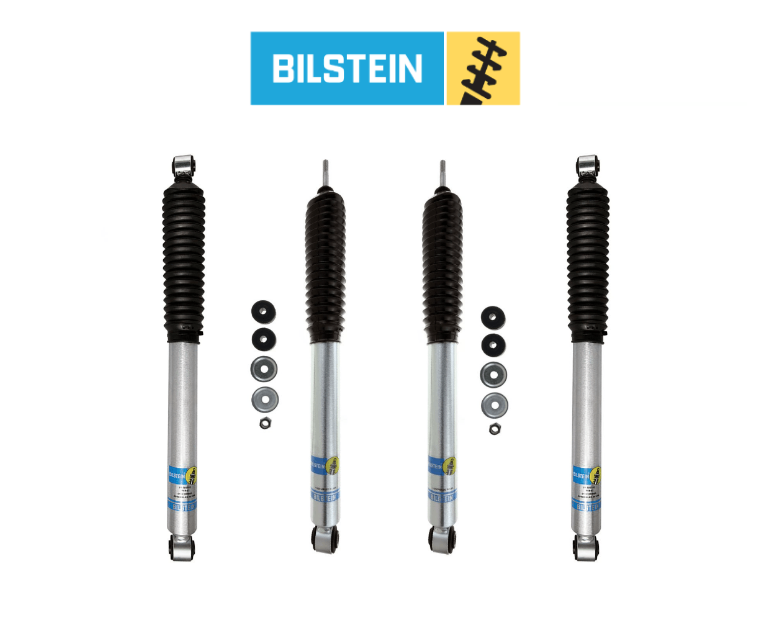

  • (2) Front Bilstein B8 5100 Shocks
  • (2) Rear Bilstein B8 5100 Shocks

Note:

  • Limited Lifetime Warranty

Product Specs

SKU:
(2) 24-185776 | (2) 24-191203
Brand:
Bilstein
