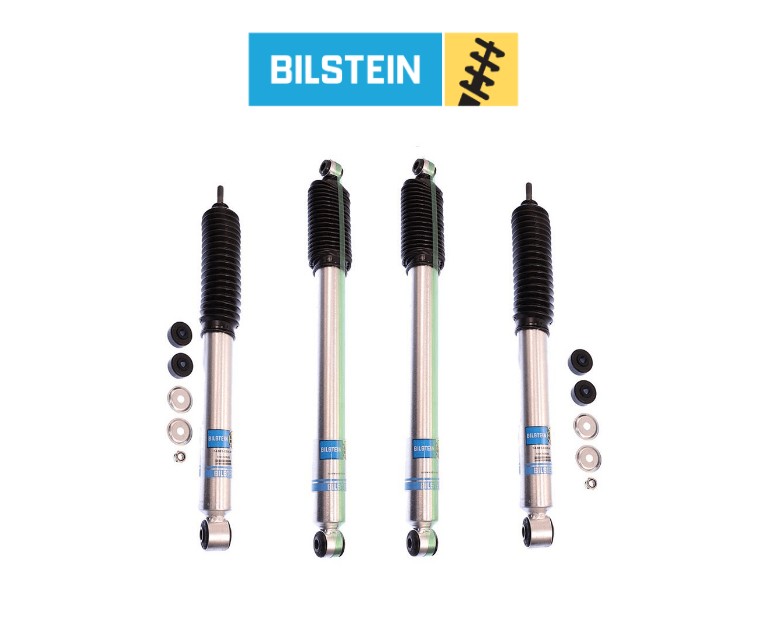

This Bilstein 5100 Series 24-186018 | 24-186025 Shock Absorbers are custom valved for fit 2005-2016 Ford F-250 & F-350 with 2 inches of front suspension lift and 0 to 1 inches of rear lift. These shocks also feature a corrosion resistant zinc plated finish with a clear coating for increased protection. The mono-tube gas pressurized design keeps your vehicle handling at its peak at all times by eliminating shock fading common in hydraulic shocks.
Bilstein 5100 Series shocks are perfect for trucks and suvs that have been lifted. The extra demands larger tires and a taller stance require more suspension performance. Bilstein's patented digressive valving is perfect for these conditions.
Features:
- Zinc plated finish with clear coating
- Specifically designed and manufactured for lifted pickups and SUVs
- Fits vehicles with 2 inches of front suspension lift
- Rear shocks fit with 0 to 1 inches of lift
- Monotube design for cooler, more efficient operation and longer life
- 46mm piston diameter provides superior handling and performance
- Patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control on or off-road
- Split compression and rebound valving tuned for each specific application
- Complete set of 4 matching shocks
Specifications:
Front Shocks
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter (ID): 46mm
- Boot Included: Black Bellows
- Collapsed Length (IN): 13.59
- Collapsed Length (MM): 345.3
- Extended Length (IN): 21.42
- Extended Length (MM): 544.0
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: Eye 14.4mm
- Reservoir: No
- Spring Seat Included: No
- Upper Mount Type: Stem
Rear Shocks
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter (ID): 46mm
- Boot Included: Black Bellows
- Collapsed Length (IN): 18.04
- Collapsed Length (MM): 458.3
- Extended Length (IN): 29.70
- Extended Length (MM): 754.5
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: Eye 12mm
- Reservoir: No
- Spring Seat Included: No
- Upper Mount Type: Eye 16mm
Fitment:
- 2005-2016 F-250 Super Duty 4WD
- 2005-2016 F-350 Super Duty 4WD
Included:
- (2) Front Bilstein B8 5100 Shocks
- (2) Rear Bilstein B8 5100 Shocks
Note:
- Limited Lifetime Warranty
- Compression bump stop on chassis may need to be modified to prevent damage to the shock absorber
